.052 – Nayax Powered VendaVolt Model 1024 Central Cashless Payment Station For Upgrading Or Retrofit Of 1 – 23 Coin Operated Washers & Dryers. Accepts; Visa, MasterCard, Discover & American Express Plus Also Apple Pay & Google Wallet!

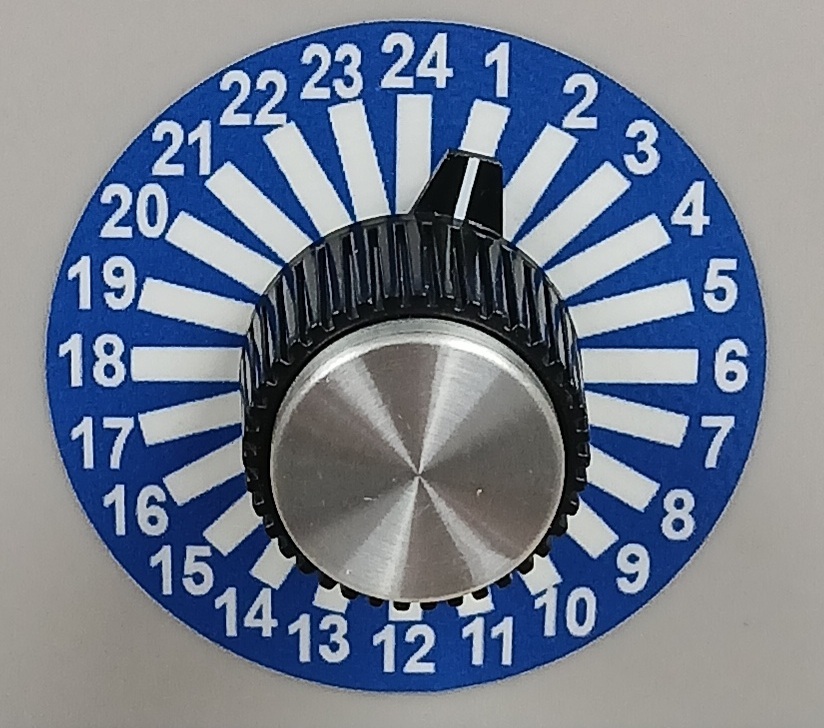

The VendaVolt Central Payment Station accepts cashless payment in parallel with 1 – 23 laundry coin operated washers & dryers or other machines capable of cashless payments.  A rotary selection knob is turned clockwise for the machine desired to vend. Output number selection 24 is reserved.

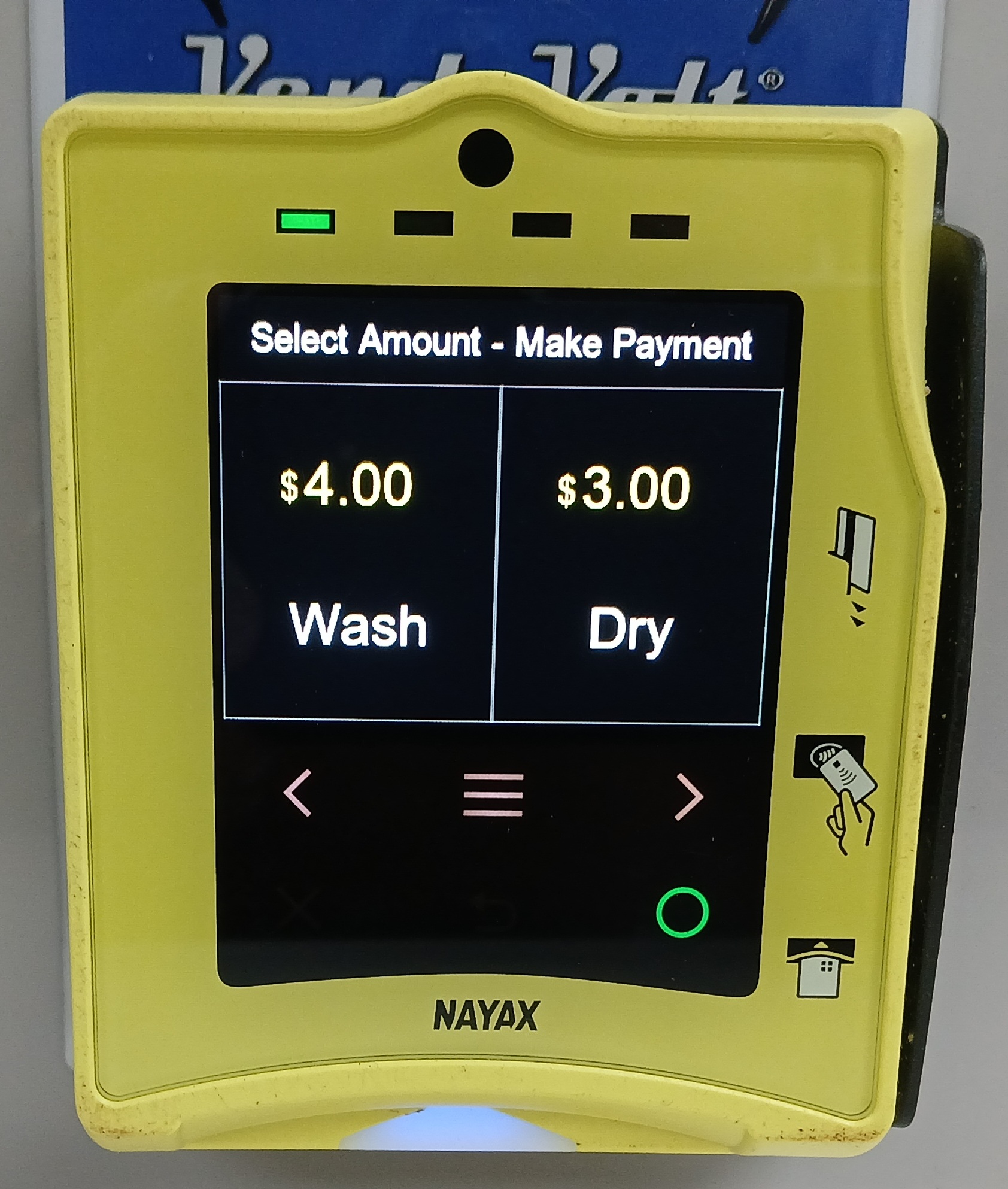

The Nayax keypad selection sends the number of coin vend pulses to 1 – 23 selected vended machines from the VendaVolt Central Payment Station.  Payment is accumulated from pulses from the Nayax VPOS Touch Terminal. Easy to connect in parallel with existing coin drop or coin slide mechanism. (Now Available For Vintage Coin Timer Motor Washers & Dryers Connected To The XCP Electricity Timer!  Requires ordering SKU 900513-040A for coin slide payment washers, or SKU 900514-060A for coin slide payment dryers)

Click this link to access the video for the XCP Model 1024 Nayax Powered VendaVolt Cashless Credit Card Payment Station.

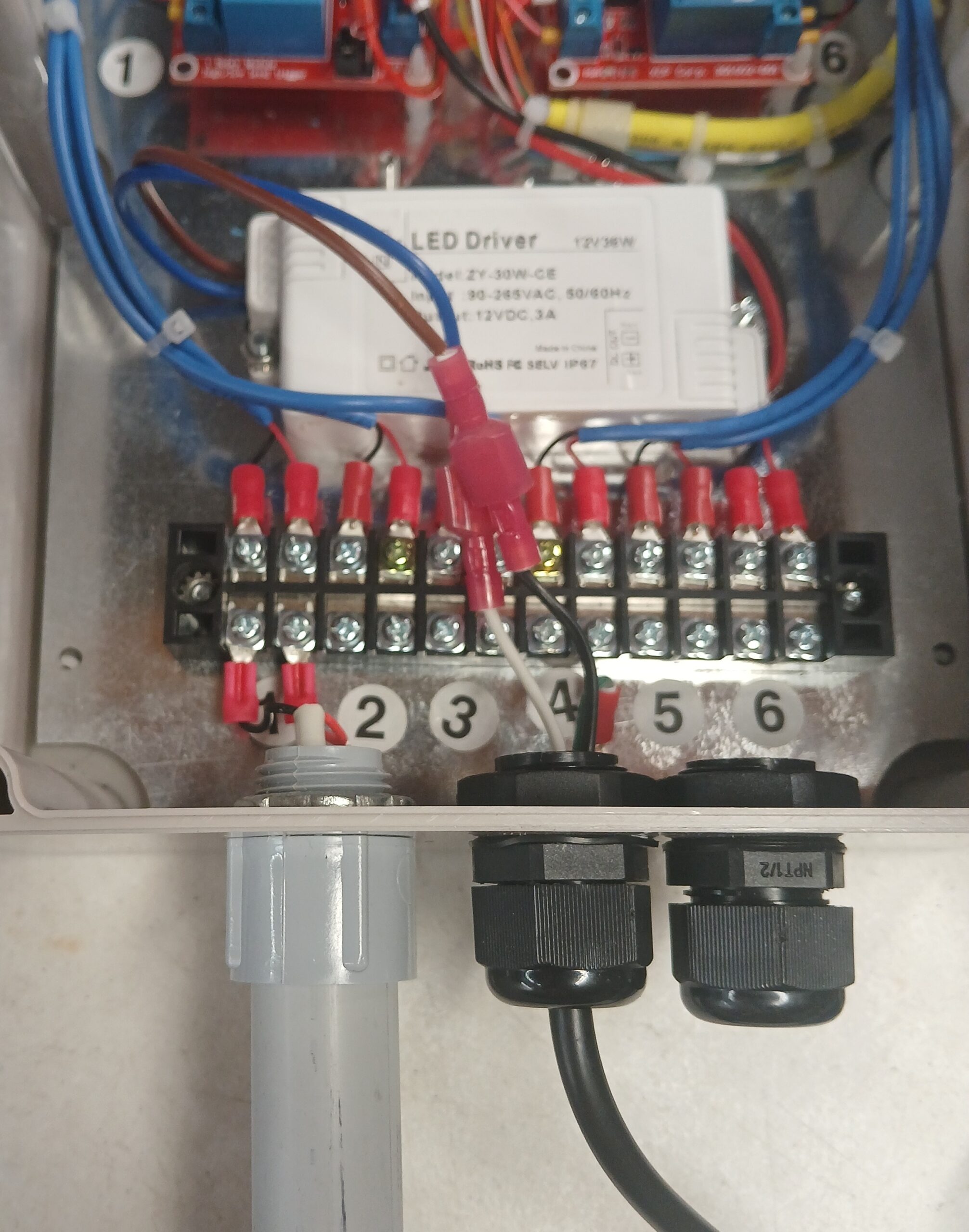

The XCP  optically isolated control board has a dry contact relay with a common input and normally open contacts. The relay contacts are rated for a maximum of 5 amps/110V or 10 amps/220V.  Can also be configured for normally “closed” relay contacts.

Example: Coin  operated Washer 1 – 6 can be for $4.00 and Coin operated Dryer 7 & 12 could be $3.00.  Then 13 – 23 can be whatever remaining.  Then possible a large washer for $6.00 and a large dryer for $7.00.  Can be configured for a total maximum of  (23) twenty-three! Accept both cash and cashless payments.  Accepts; Visa, MasterCard, Discover & American Express plus also cell phone app Apple Pay & Google Wallet!

Click This Link For A YouTube Video Of An Eight Washer & Dryer Coin Operated Machine Conversion Installation.

Product Features

• Microcontroller Circuitry
• Configure Vend Price from $00.01 – $999.99
• Configure Timer Vend Pulse From 50ms – 10 Seconds
• Keypad Vend Selection of 1 – 23 Coin Operated Washer & Dryer Machines On 3 Nayax VPOS Touch Terminals
• Multiple Time Delay Selection
• Touch Screen Display For Programming Price & Time Settings
• 0.5% Repeat Accuracy
• Contacts Rated Up To 5 amps 250VAC
• Input Power 110~120V With An Output Of 12VDC 3 Amp Power Supply
• Requires customer supplied 20-24 AWG Two Conductor Stranded Wire Cable.
• Includes Twenty-four (24) Red 3M Wire Splice Connectors
• Includes 48 Fork Terminals
• Includes Four 1/2 Inch x 12 Inch Gray Plastic Conduit Pipe
• Includes Six 1/2 Inch Coupling Fittings.

Mode of Operation

• Make Payment With; Visa, MasterCard, Discover or American Express Credit Cards + Apply Pay & Goggle Wallet Cell Phone App.
• Select From 1 – 23 Washers or Dryers by selecting the numbered machine on the rotary switch connected to one (1) Nayax VPOS Touch Screen Terminal.
• The Payment Selected Is Sent In Quarter Pulses To The Machine.

XCP Corp, [1] 352-678-3021 or Cell Phone at: [1] 352-585-5400. Also you can text us at [1] 352-585-485-5400. You can also contact our Administrative Sales Representative. Angie Cohorn angie@xcpcorp.com.
