Model CTD-200 +12V+24V 1A Card Dispenser (Old Stock)


$184.00
900527-002
In stock
+ −
Our quantity discounts:
Quantity 10+ 25+ 50+ 100+ 500+
Price $166.00 $147.00 $138.00 $129.00 $0.00
Buy now with 1-click

Card/Ticket Dispenser CTD 200 Series.
(Manufacturing Discontinued)

Part number: 900527-CTD200

CTD-200 Series Literature - download the specification sheet

U.L./C.S.A. Power Supply, Switching Fully Regulated +24 VDC, not to exceed 1.5A. Part Number 301503-001

Technical Specifications

Motor: 12VDC 3W 1200RPM

Power Supply Input: +12VDC or +24VDC normal 1A - 2A, not to exceed 2.A

Card Exit Micrometer Adjustment Gate: Top performance patented design for easy card thickness adjustment, which can be done by your hands without any tools.

Interface:

  • · Empty/Ready bi-LED
  • · Empty/Ready/Stuck/Dispense TTL Signals (CTD-200/CTD-201 only)
  • · Card Sensors
  • · 12 pins connector for direct logical signal control (CTD-200 & CTD-201 only, requires JST mating 1x12 connector, part number #301964-001 & JST pins, part number #301965-001) Order the CTD-200 "Test Simulator", part number: 900527-TEST
  • · Card Adjustment and Electrical Connection of the 12 position JST connector in .pdf format
  • · Optional Extension Magazine, Part Number: 200006-61
  • - 5.5mm 2.1mm DIN connector for input from a +24V 1.5A switching fully regulated power supply
Powerful Embedded Micro controller features:

Atmel Micro to allow for several features for this card dispenser to:

Card Specifications:

Dimensions Standard Long Card Size
Length: 80mm-95mm 80mm-100mm
Width: 45mm-56mm 45mm-54mm
Thickness: 0.22mm-2mm 0.22mm-2mm
*Note: Configuration special thicknesses can be ordered on request. Please contact XCP sales for details. The CTD-200 series can dispense; 55m width envelopes, Embossed Cards, Pull Tab Tickets, Stamp Booklets & Poly Bag Cards.
CTD-200 Series Dimension Specifications:
Dimensions Metric S.A.E.
Length: 14.5cm 6 5/8 inches
Width: 9.5cm 3 3/4 inches
Height: 19.5cm 7 3/4 inches
Weight: 1.36 kilogram 3 pounds
Click on photo for film clip of bank card envelope dispenser demonstration

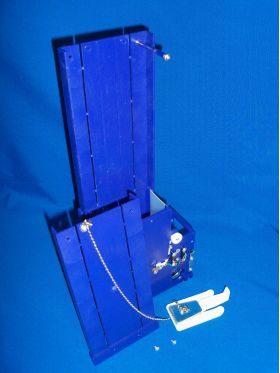

Extension Magazine Series Dimension Specifications:
Dimensions Metric S.A.E.
Length: 12.2cm 4 3/4 inches
Width: 6.9cm 2 11/16 inches
Height: 25.5cm 10 inches
Weight: 295 grams 10.4 ounces
Other Additional Specifications:
Operating Temperature Storage Ambience Dispense Cycle Time
-10C ~ +40C 30% ~ 90% 1.5 ~ 2 seconds
Current Consumption Supply Voltage Maximum Card Capacity
0.1Amp (idle) Not to exceed 1.5A Maximum +12V/+24 VDC 200+ depending on the thickness
1 - 1.5 Amp (peak) 24VDC +/-10% 12VDC +/- 10% 500+ with extension magazine
Embossed credit cards require 56mm width card envelopes & removal of the gear side white guide finger of the CTD-200 series dispenser.


Includes manuals and other related documentation.

CTD-200 TTL, CTD-201 ACCUMULATOR or CTD-202/203 USB/SERIAL CARD/TICKET Dispenser ( Protected with US & Chinese Patent)

The CTD-200 series can be ordered with the maximum width specification of 56mm for envelopes and stamp booklets. The thickness of the card/ticket envelope can be increased to a thickness maximum of 2-3 mm. The specification change requires a different front exit roller and "O" rings, and the removal of the gear side white guide. The card/ticket or gift card envelope capacity can be increased by ordering an optional extension magazines. Maximum is 400 cards/tickets with the optional extension magazine. The CTD-200 Series Card Dispenser is available in TTL, Serial or USB. The CTD-202/203 Model an be directly connected to your USB Kiosk with a "Free!" API for easy programming to your Kiosk PC.
