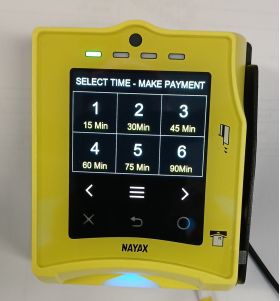

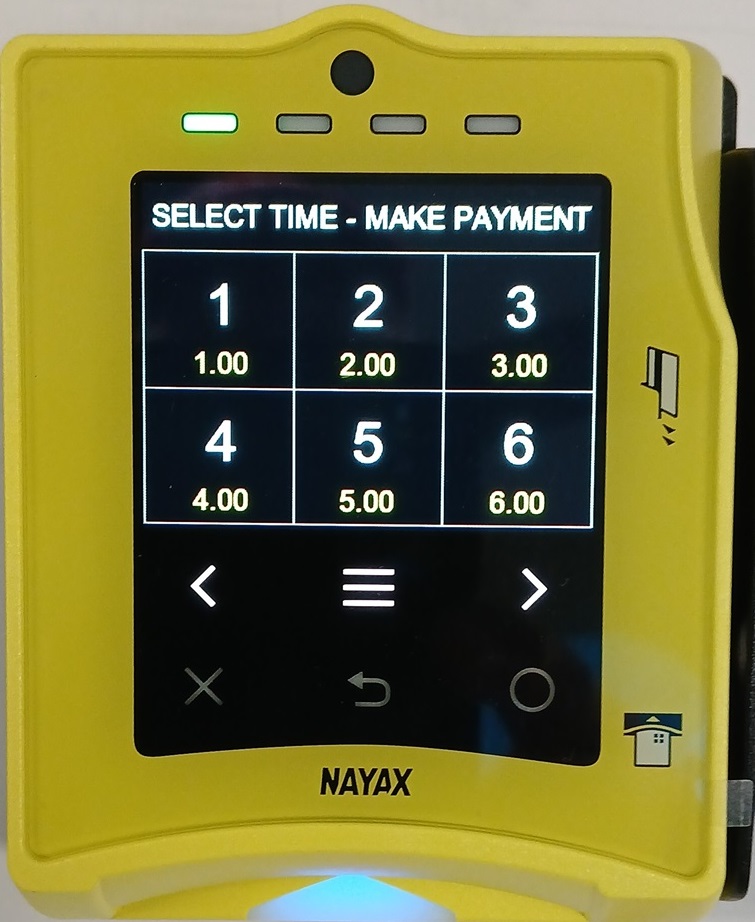

.0631B - VendaVolt Nayax Electricity Timer Payment Station With Six (6) Payment Amount & Timer Selections That Count Down. Includes a 24 Hour Timer For Lock Out Of Access. Ideal For Pickleball & Tennis Court Lighting.

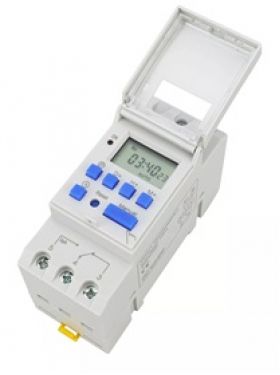

This VendaVolt has two (2) timers. The 1st timer is a 24 hour timer that has a start and stop time setting. It is a 110V Digital LCD Power Programmable Timer Switch Relay. This 24 hour timer relay provides 110V to the 2nd timer Nayax cashless payment accumulator timer board module.

Click this link for a short 2 minute YouTube video. Click This Link For The Nayax University Video

Nayax Vpos Touch FCC ID: R17ME910G1WW

Product Features

• Rated Control Voltage: Input 110V AC ,Output 110V AC ; Contact Capacity: 16A(8)A, 240V AC
• Full Time Range: 1 Min-168 Hours; Programmable: 16 times/week or day
• Internal battery: 1.2V/40mA (rechargeable batteries)
• Power failure memory: 60 days; Operate Temperature: -10 to +40 C

The 2nd timer relay is a 110V dipswitch selectable timer. The dip switches allow programing in minutes and hours of time. This 2nd timer will only operate when the 24 hour timer is in the "On" sequence of time.

Product Features

• Microcontroller Circuitry
• 10 Amp Relay Contacts
• Provides Dry Contact Relay Closure
• Accumulates 1 to 255 Push Button Pulses
  (Can operate in parallel with remote push buttons)
• Multiple Time Delay Selection
• Encapsulated to withstand the harshest environment.
• 0.5% Repeat Accuracy
• Contacts Rated Up To 30 amps 2hp @ 240 VAC
• UL / cUL Recognized

Mode of Operation

ACCUMULATING TIMER/ LAST PAYMENT INDICATOR Same as ACCUMULATING TIMER except when the remaining time is less than the set time, the last payment indicator is activated. If additional payment pulses are added the last pulse indicator is deactivated until the remaining time is again less than the set time.
