.06- VendaVolt Nayax Vpos Touch Wireless Cashless Timer 1 - 6 Vend Price Payment Kit For Non-Coin Operated Machines. Includes Wall Mount Enclosure, +12V Power Supply, 2 Opto Boards & mating 10A Relays + 2 timer boards. Vend Time on 2 Different Machines

List price: $1,195.00
$995.00
You save: $200.00 (17%)
306013-VCB
In stock
+ −
Our quantity discounts:
Quantity 6+ 25+ 50+ 100+
Price $895.00 $750.00 $725.00 $695.00

Minimum quantity for ".06- VendaVolt Nayax Vpos Touch Wireless Cashless Timer 1 - 6 Vend Price Payment Kit For Non-Coin Operated Machines. Includes Wall Mount Enclosure, +12V Power Supply, 2 Opto Boards & mating 10A Relays + 2 timer boards. Vend Time on 2 Different Machines" is 1.

Buy now with 1-click

Nayax_PCI_DSS_Certificate_JUNE2013 Click this link to "Contact Us" for same day reply.

VendaVolt NAYAX Vpos Touch 6 Vend Price Cashless Timer Payment Kit. Connect 1 Washers & 1 Dryer Machine, Water & Ice Vending, Electric Lighting, Door Access, Etc. Replaces Coins & Bills! Vends Time On 2 Machines. Can be increased to six (6) timer output boards & ten (10) of the optically isolated 10 amp relays for an additional $400.00.

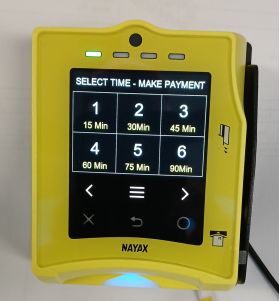

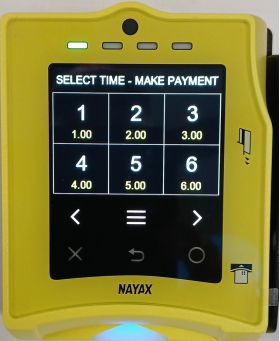

Selection of Two (2) Different Timer Vend Prices for Two (2) Different Machines. Example: $4/45 minutes & $8/90 minutes.

A universally certified EMV & PCI compliant solution designed to provide the financial services and latest technology in order to maximize the benefits of cashless payments, along with a steady & accurate stream of telemetry date designed to provide vending machine operators with the ability to centrally manage their operations from one application.

The VPOS smart reader is EMV level 1 and 2, swipe, and contactless "touch n' go" approved.

The kit includes:

Nayax VPOS Touch Combination Modem & Touch Smart Reader with magnetic swipe, Rfid insertion and "tap & go".

Magnetic Mount Antenna-3M cable (screw in SMA Connector)

Pulse Mode Harness for 6 momentary 100ms pulse signal outputs terminated on a terminal block

12 volt ETL Electrical Safety Certified 3 amp power supply that operates on 100~240 volts AC

VendaCard Rfid Pass Card With 500 Units on it

Two (2) XCP Optically Isolated 10A relays for two of the 6 channels to convert the Nayax digital signal to contact relay pulse signals.

Two (2) XCP VCB-1 Timer Boards. Operates 2 machines each individually from the payment from the Nayax Vpos Touch terminal. https://xcpcorp.com/accessories/opto-12v-controller-board-with-10a-single-pole-double-pole-contacts/

Please note this is a 30ms pulse to trigger the selected VCB-1 timer for the amount of time for the vend cycle. Example 45 minutes for $5.50. This is a timer mode! The timer mode includes two () VCB-1 accumulator timer boards. The VCB-1 Accumulator Boards are dip switch selectable for the amount of time for the pulsed vend price.

Opto%20Relay%20Board.jpg?1580843994552

This product price does not include UPS shipping fees and only refers to the price of the item itself. A $30.00 setup and processing fee is included with this kit.

Included with the purchase of the VendaVolt Nayax Cashless Payment System is a "Free" Nayax Dashboard. Allows you to track your sales, change prices and text information on the display. Click on this link and also Click on this link.
