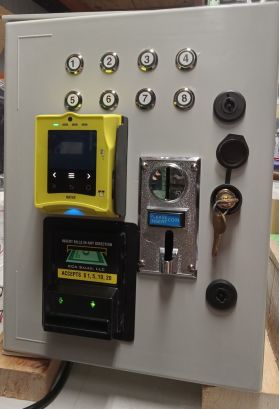

.0592. - VendaVolt Model 5008 8 Push Button Selection Timer Credit/Debit Card, Coin & Bill Cash Acceptance Payment Station. Accepts; $0.25 or $1 Coins & Bills Of $1.00, $5.00, $10.00 & $20.00 Cash Payment. Accumulates Time With Additional Payments of Cash

Click This Link For The 8 Push Button Selection Credit/Debit Card, Apple Pay, Google Wallet, Monyx Cashless and Cash Timer Payment Station.

VendaVolt Credit/Debit Cards, Cash Bills & Coin Acceptance Timer Payment Machine Station. Connect from 1 - 8 110~120 or 220~240 volt electrical devices to to the eight (8) 15 amp relays. Will Send a Vend Pulse Signal to Trigger the XCP Timer Control Board. Eight (8) different output times and prices can be configured. Example; $1.75 for 1 hour, $3.50 for 2 hours, $7.00 for 4 hours for lighting. Ideal for; Bulk Water, Showers, Laundries, Snooker & Pool Tables, Gun Range Heating/lighting, Hockey or Tennis/Soccer/Pickleball Field Lighting. Operates on 100~240 volts AC.

Click This Link For The Nayax University Video
Please click on this link for optional installed QR Code for receipt. Also click this link for the Nayax QR Code installation information.

(IMPORTANT! Please specify the input voltage and output powered number of 1 - 8 devices that will be time cycle vended)

Includes:

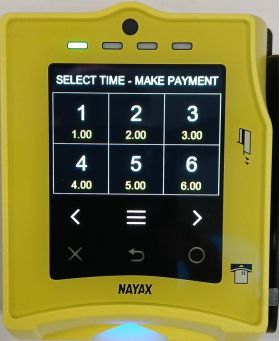

Nayax Vpos Touch Credit/Debit Cashless Payment Station with antenna

Quarter or dollar coin mechanism (selectable) Quarter is configured to send 4 pulses to equal a dollar value whereas $1.00 coin sends 1 pulse

Stacker Cassette Bill acceptor that accepts; $1 - $5 - $10 & $20 bills that sends four (40 quarter pulses for each dollar inserted. Can be programmed to accept $50.00 and $100.00 bills.

One (1) Enclosure , Waterproof with 3 door locks, Fiberglass Enclosure with dimensions of: 15.7" X 11.8" X 7.9" Wall or Pole Mount, weight 18 pounds.

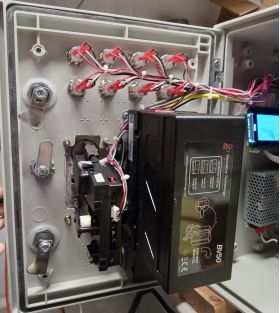

Pulse Mode Harness for the VendaVolt 8 Push Button Selection to the coin and bill acceptor

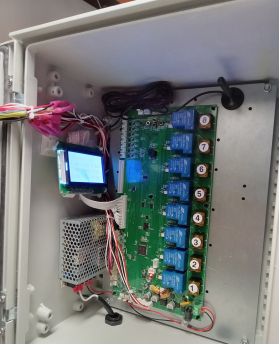

Eight (8) 15 amp relay with common & normally open contacts.

This product price does not include UPS shipping fees and only refers to the price of the item itself.

FCC ID: R17ME910G1WW For The Nayax Vpos Touch
