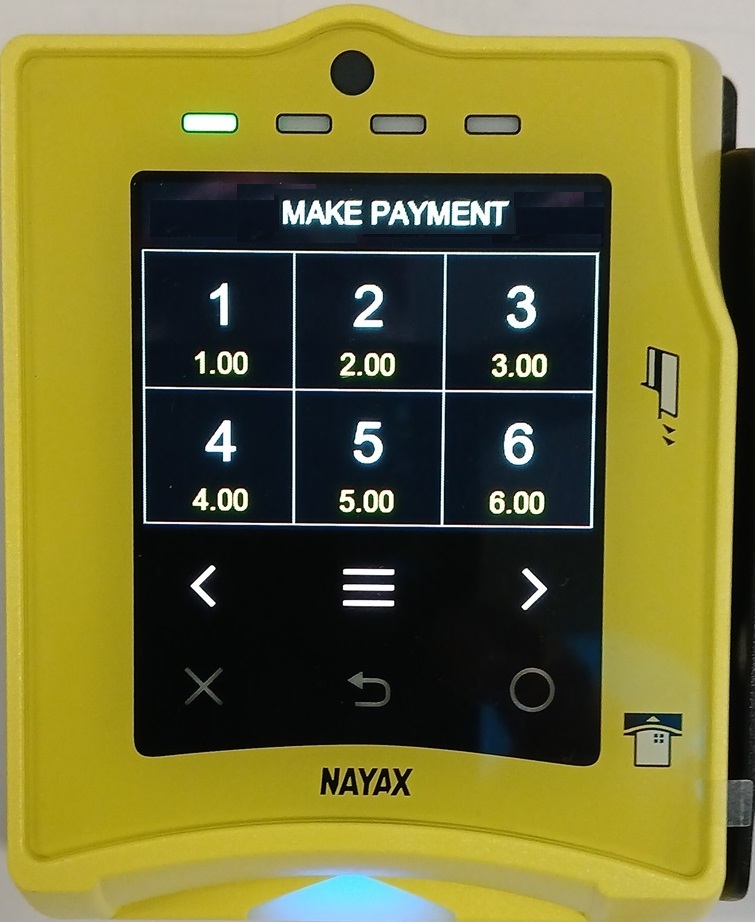

VendaVolt NAYAX Vpos Touch Central Payment Station for 1 - 6 Existing Insert/Slide Coin Operated Machine. Example for three (3) laundry washers and three (3) laundry dryers. Another Example Would Be For Six (6) Washers With A Second VendaVolt Vpos Touch For Six (6) Dryers! The Nayax touch screen can be configured for; 1, 2, 3, 4, 5 or 6 keypad selections and prices.

Once Payment Is Made, The Vend Signal Triggers A Solid State Relay Contact Closure. Ideal To Upgrade Existing; Car Washes/Vac's, Coin Slide or Coin Insert/Drop Laundromats, Token/Coin Timer Pickleball & Tennis Court Lighting, Etc. Now Your Location Can Offer Both "Cashless" & "Cash"! Operates by sending momentary single pulse or multiple pulses to the coin mechanism circuit.

A universally certified EMV & PCI compliant solution designed to provide the financial services and latest technology in order to maximize the benefits of cashless payments, along with a steady & accurate stream of telemetry date designed to provide vending machine operators with the ability to centrally manage their operations from one application. View our XCP Corp videos on YouTube of our many different vending access control products by Clicking This Link.

The VPOS smart reader is EMV level 1 and 2, swipe, and contactless "touch n' go" approved.

The kit includes:

Nayax VPOS Combination Modem & Touch Smart Reader with magnetic swipe, RFID insertion and "tap & go".
FCC ID: R17ME910G1WW For The Nayax Vpos Touch

Magnetic Mount Antenna-3M cable (screw in SMA Connector)

Pulse Mode Harness for 6 momentary 100ms pulse signal outputs terminated on a terminal block

12 volt Electrical Safety Certified 3 amp power supply that operates on 100~265 volts AC

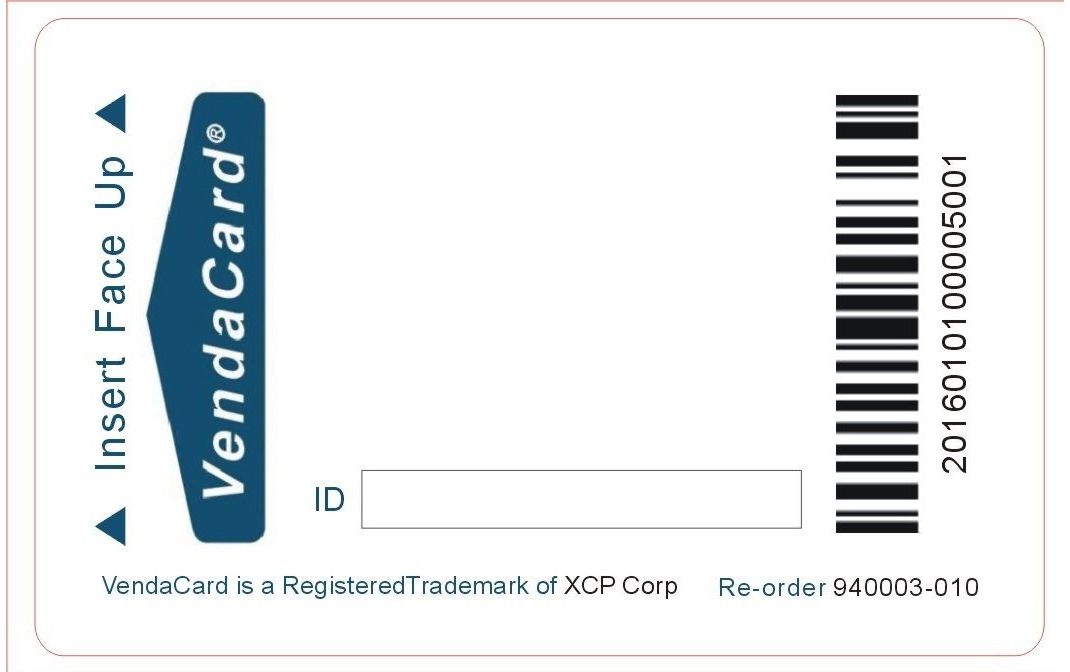

VendaCard RFID Pass Card With 500 Units on it that is programmed to automatically refresh with a total of 500 Units/Dollars each 30 days.

Six (6) XCP Optically Isolated relays for each of the 6 channels to convert the Nayax digital signal to contact relay pulse signals. Please note this is a 20ms - to several seconds or minutes pulse to trigger in parallel a coin or bill acceptor mechanism. Can be configured as this momentary pulse or can be a timed cycle such as from 1 second to 30 seconds or longer. Ideal to operate in parallel with a coin mechanism or bill acceptor.

The kit does not include: Connection 18 - 22 gauge 2 or 3 conductor wiring cable between the VendaVolt Nayax Vpos Touch Wireless Vending Timer Payment Station and the 1 - 6 vending machine coin mechanisms or other type machines.

This product price does not include UPS shipping fees and only refers to the price of the item itself. A $30.00 Nayax credit card processing setup fee is not included with this kit.

Included with the purchase of the VendaVolt Nayax Cashless Payment System is a "Free" Nayax Dashboard. Allows you to track your sales, change prices and text information on the display. Click on this link and also Click on this link.
