Model 5001T

SKU: 50002-041
$895.00 USD
Shipping calculated at checkout.
In stock: 5
Description

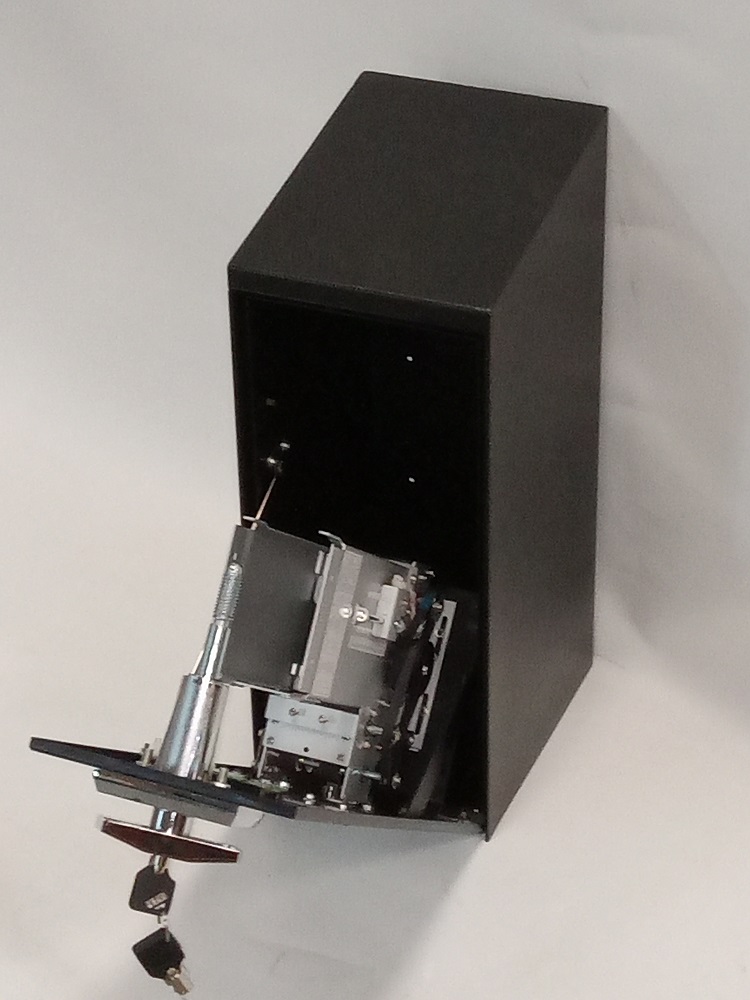

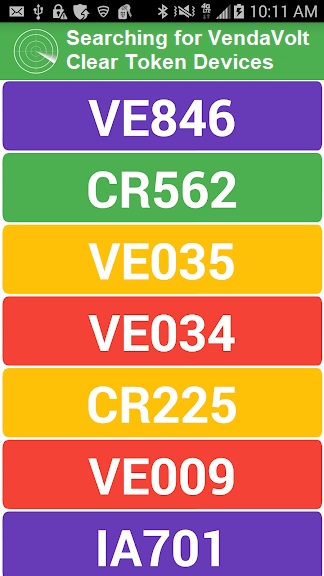

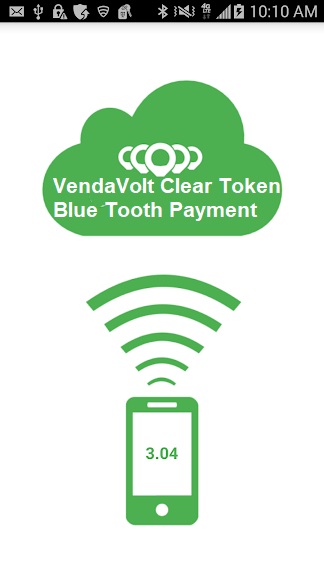

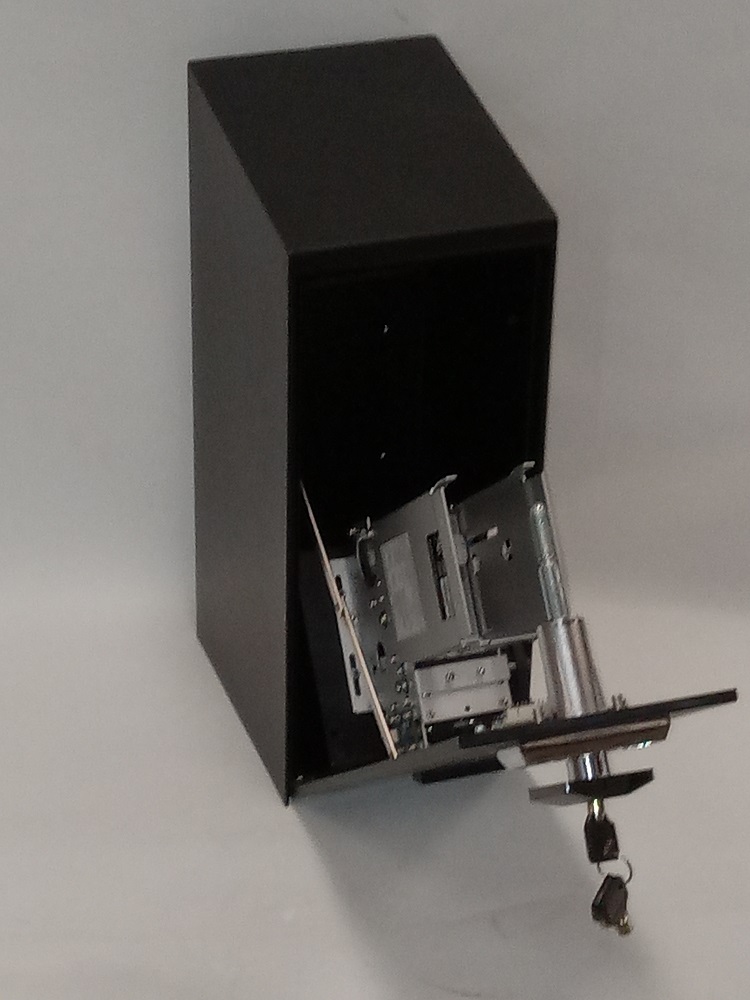

The Model 5001 dispenses prepaid cards and tickets from a single TCD-180M dispenser mounted in a metal cabinet with a T-handle high-security lock, paired with a Bluetooth Visa & Mastercard cell-phone-app payment controller instead of a card reader. Cards dispense automatically once payment clears through the Clear Token app.

Works with standard CR80 magnetic cards, transit tickets, IC/SIM cards, gift cards, scratch tickets, parking cards, and similar media. A low-inventory sensor lights a red LED when the card magazine is running low.

Also usable to vend 110-120V electricity to virtually any electrically operated machine through the same app-based payment. A $5.00 monthly administrative fee applies per device, plus a 5.95% processing fee on each Visa/Mastercard transaction.

Shipping outside the US? We ship to US-based freight-forwarder addresses, or contact us to arrange international delivery.

Our equipment and technical support are built around US electrical standards (voltage, plug types, and certifications) - we're unable to guarantee compatibility or provide support for international electrical systems.

Plug-and-play install. Splices into an existing power cord or outlet — no breaker or panel work.

How it works

01. Install

Wire into your existing machine, outlet, or coin mechanism — most models splice in or run in parallel, so you keep the equipment that already works.

02. Customers pay

Credit card, debit card, mobile wallet, or the Clear Token phone app, depending on the model — no coins or cash box to manage.

03. Equipment runs

A vend pulse or timed cycle activates your machine automatically, the same way a coin drop would — no attendant required.

Product Details

Specifications
Card Capacity 160-180+ CR80 cards at .030 in thickness
Card Dimensions 54 x 85 mm (CR80 standard)
Dispenser Mechanism Dimensions 9 in H x 3.25 in W x 6.5 in L
Weight 3.3 lbs (dispenser mechanism)
Operating Voltage 24VDC (2A max, 0.1A static)
Power Supply 24VDC, 5 Amp desktop supply
Card Thickness Range 0.2-2.4 mm, adjustable (factory default 0.8 mm / .030 in)
Operating Temperature -30C to 70C
Mounting M3 screw holes, compatible with Asahi Seiko or XCP CTD-200 series
Product Dimensions 9 x 7 x 18.5 in
Shipping Dimensions 20 x 10 x 10 in, 20 lbs boxed
What's in the Box

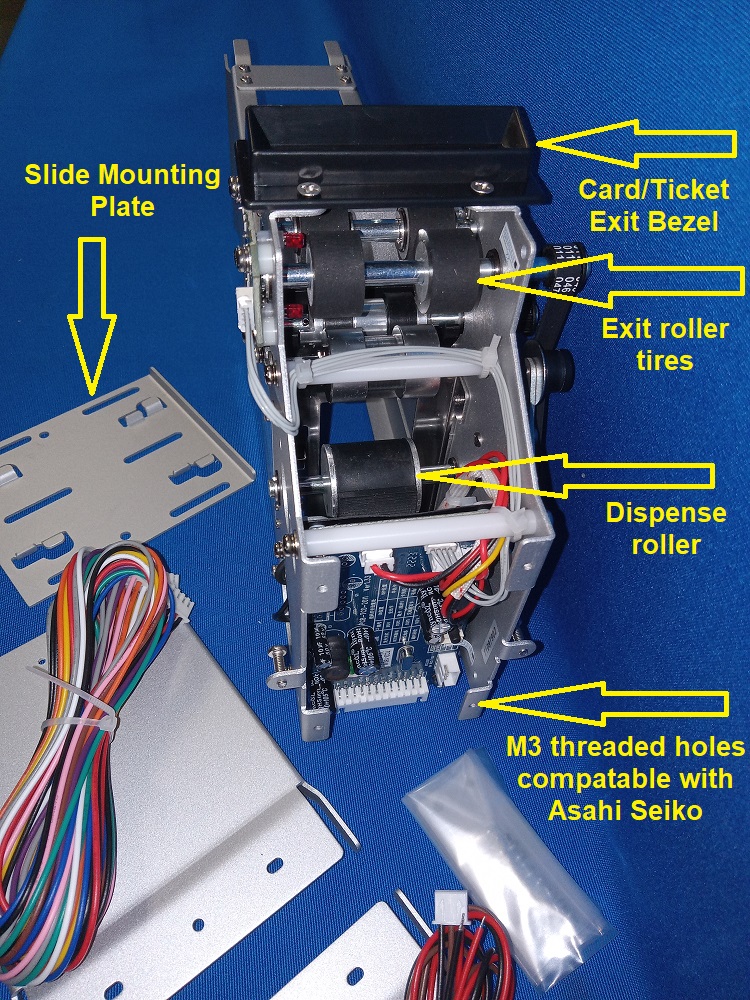

  • TCD-180M card/ticket dispenser mechanism
  • 1x12 connector plug pulse mode cable
  • Mounting plate and front black card exit bezel
Compatibility
  • Magnetic cards, transit tickets, IC/SIM cards, bank and gift cards, scratch tickets, parking cards, phone/WiFi cards
  • Visa and Mastercard via Clear Token cell phone app
  • 110-120V electrically operated machines (laundry, car wash, etc.)
  • Compatible mounting with Asahi Seiko or XCP CTD-200 series
