Model 5001N

SKU: 50002-044
$1,995.00 USD
Shipping calculated at checkout.
In stock: 2
Description

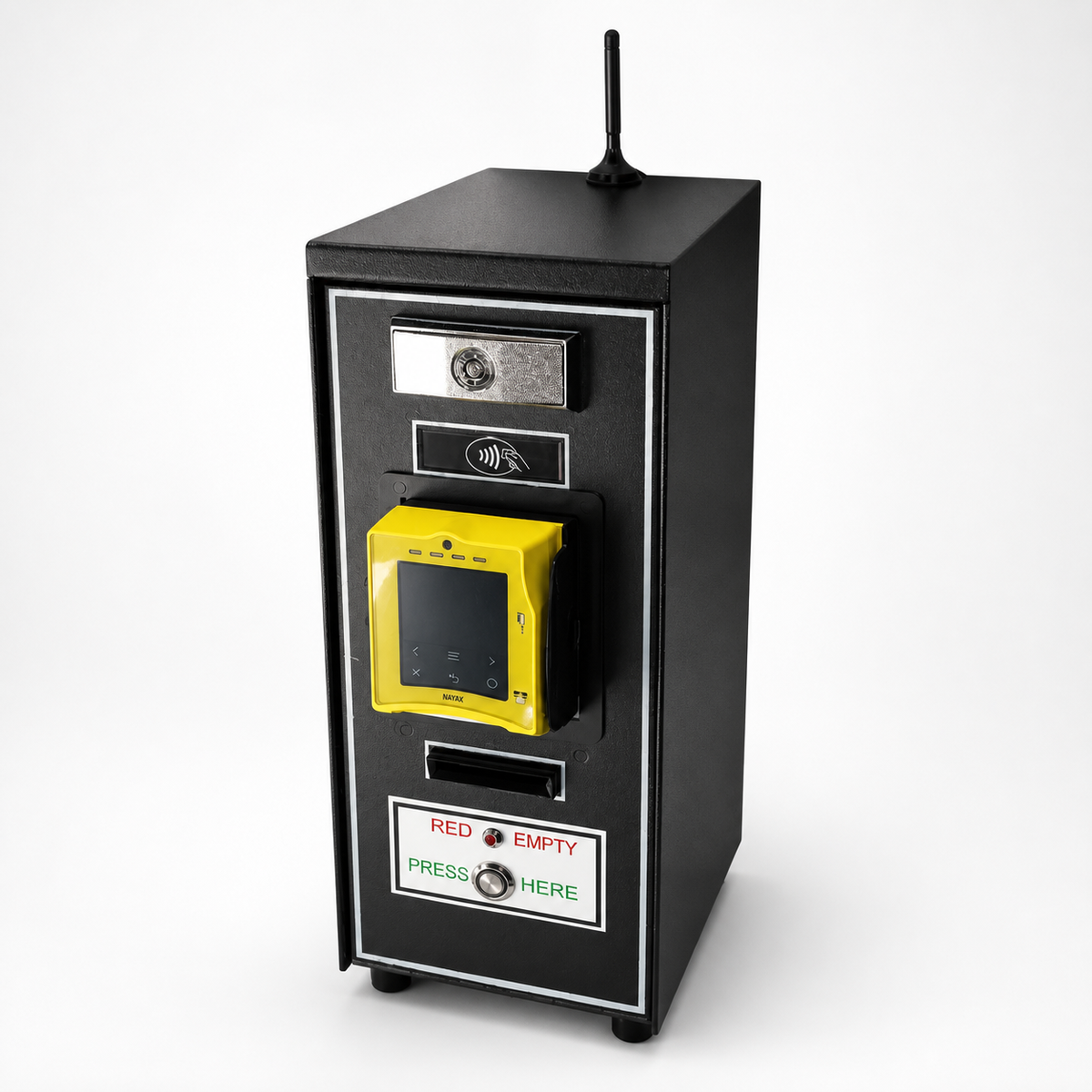

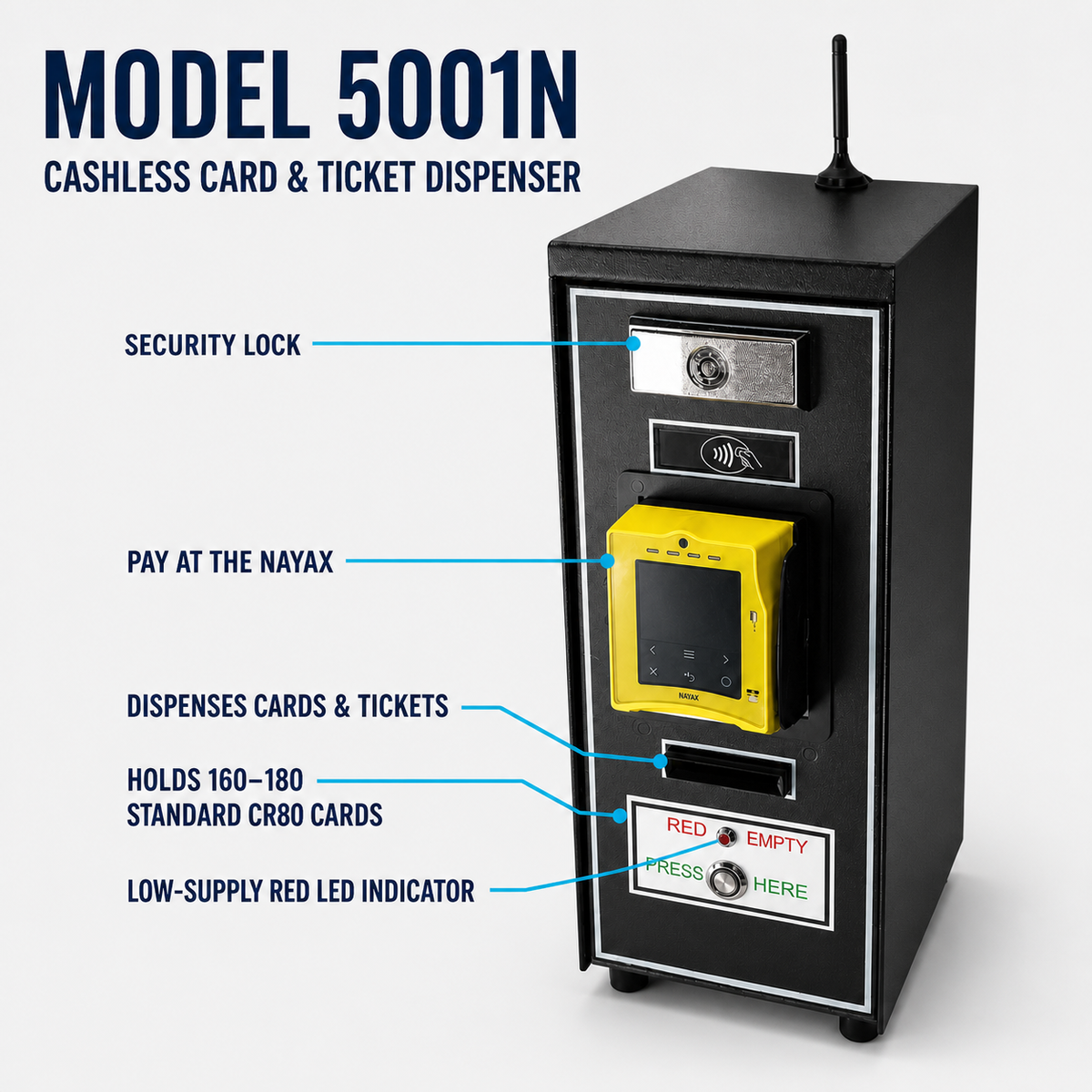

The Model 5001N is a cashless card and ticket vending machine built around the TCD-180M dispenser, mounted in a metal cabinet with a T-handle high-security lock. It's designed for dispensing prepaid cards for laundromats, car washes, parking, transit, and similar self-service locations.

Customers pay with the Nayax Vpos Touch terminal Visa, Mastercard, Discover, American Express (magnetic stripe, chip, or RFID), Monyx Wallet, Apple Pay, or Google Wallet and the machine dispenses automatically. A low-inventory sensor lights a red LED when the card magazine is running low.

Holds roughly 160-180 standard CR80 plastic cards. Powered by a 24VDC 5-amp desktop power supply.

Shipping outside the US? We ship to US-based freight-forwarder addresses, or contact us to arrange international delivery.

Our equipment and technical support are built around US electrical standards (voltage, plug types, and certifications) - we're unable to guarantee compatibility or provide support for international electrical systems.

Plug-and-play install. Splices into an existing power cord or outlet — no breaker or panel work.

How it works

01. Install

Wire into your existing machine, outlet, or coin mechanism — most models splice in or run in parallel, so you keep the equipment that already works.

02. Customers pay

Credit card, debit card, mobile wallet, or the Clear Token phone app, depending on the model — no coins or cash box to manage.

03. Equipment runs

A vend pulse or timed cycle activates your machine automatically, the same way a coin drop would — no attendant required.

Product Details

Specifications
Card Capacity 160-180+ CR80 cards at .030 in thickness
Card Dimensions 54 x 85 mm (CR80 standard)
Card Thickness Range 0.2-2.4 mm, adjustable (factory default 0.8 mm / .030 in)
Dispensing Time Approximately 0.5 sec
Operating Voltage 24VDC (2A max, 0.1A static)
Power Supply 24VDC, 5 Amp desktop supply
Dispenser Mechanism Dimensions 9 in H x 3.25 in W x 6.5 in L
Operating Temperature -30C to 70C (-22F to 158F)
Operating Humidity 30-90%
FCC ID R17ME910G1WW (Nayax Vpos Touch)

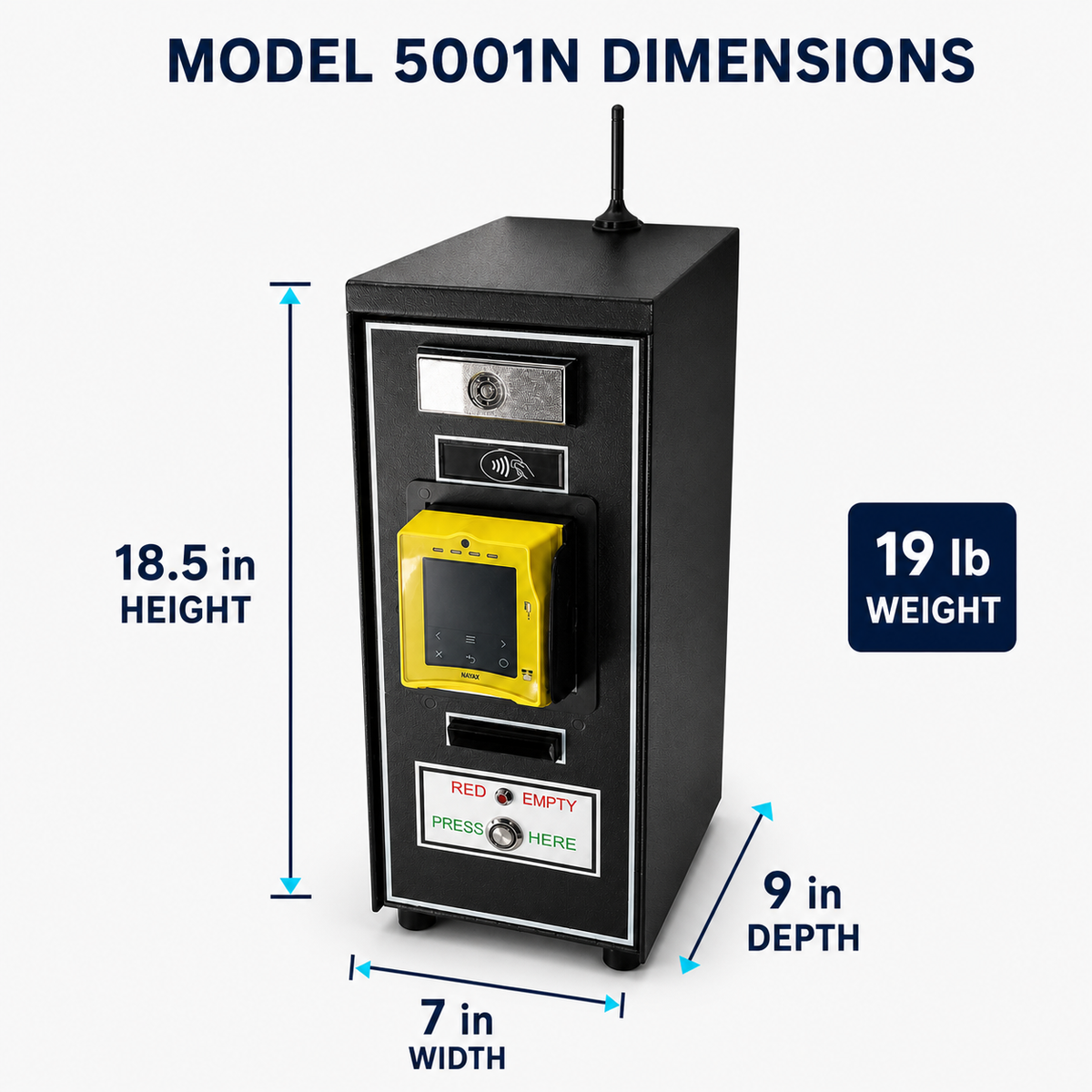

Product Dimensions 9 x 7 x 18.5 in
Shipping Dimensions 20 x 10 x 10 in, 20 lbs boxed

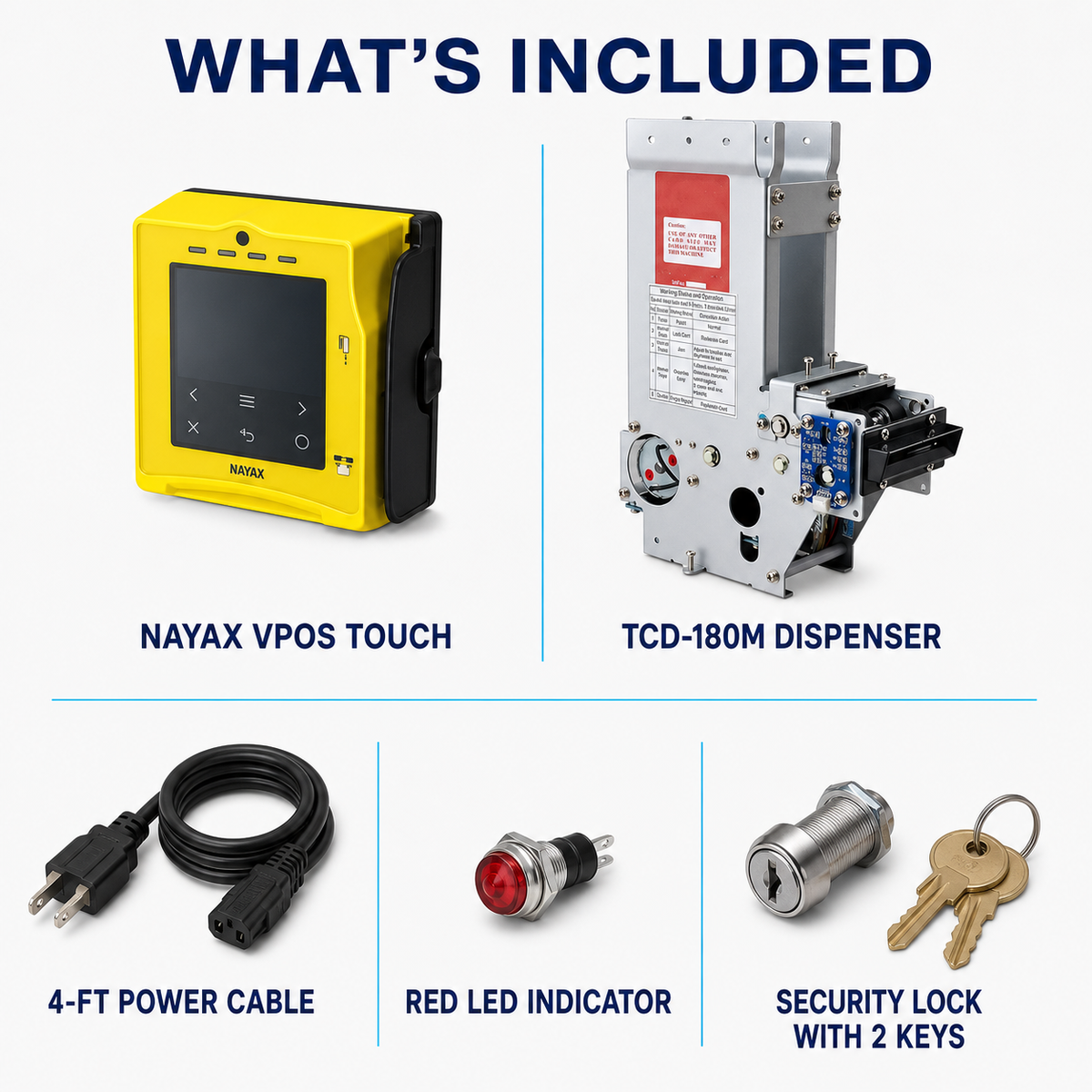

What's in the Box
  • One Model 5001N card/ticket dispenser (TCD-180M mechanism) in a metal cabinet with T-handle high-security lock
  • Built-in Nayax Vpos Touch cashless payment terminal
  • 24VDC, 5-amp desktop power supply with 6 ft power cord (shorter/longer lengths selectable at checkout)
Compatibility
  • Laundromats, car washes, parking, and transit locations
  • Visa, Mastercard, Discover, American Express (magnetic stripe, chip, RFID)
  • Monyx Wallet, Apple Pay, Google Wallet
