Model 5001

SKU: 50002-043
$695.00 USD
Shipping calculated at checkout.
In stock: 5
Description

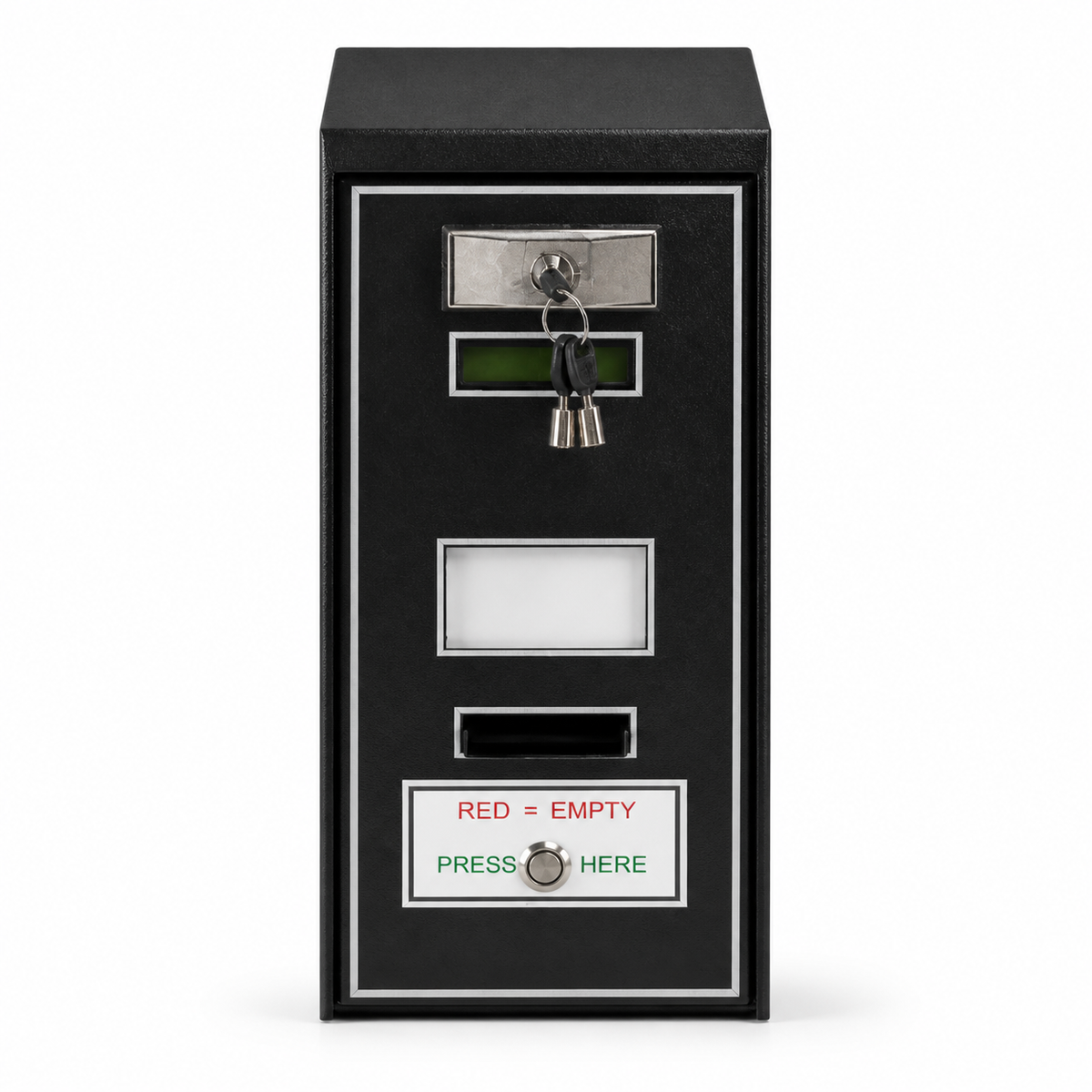

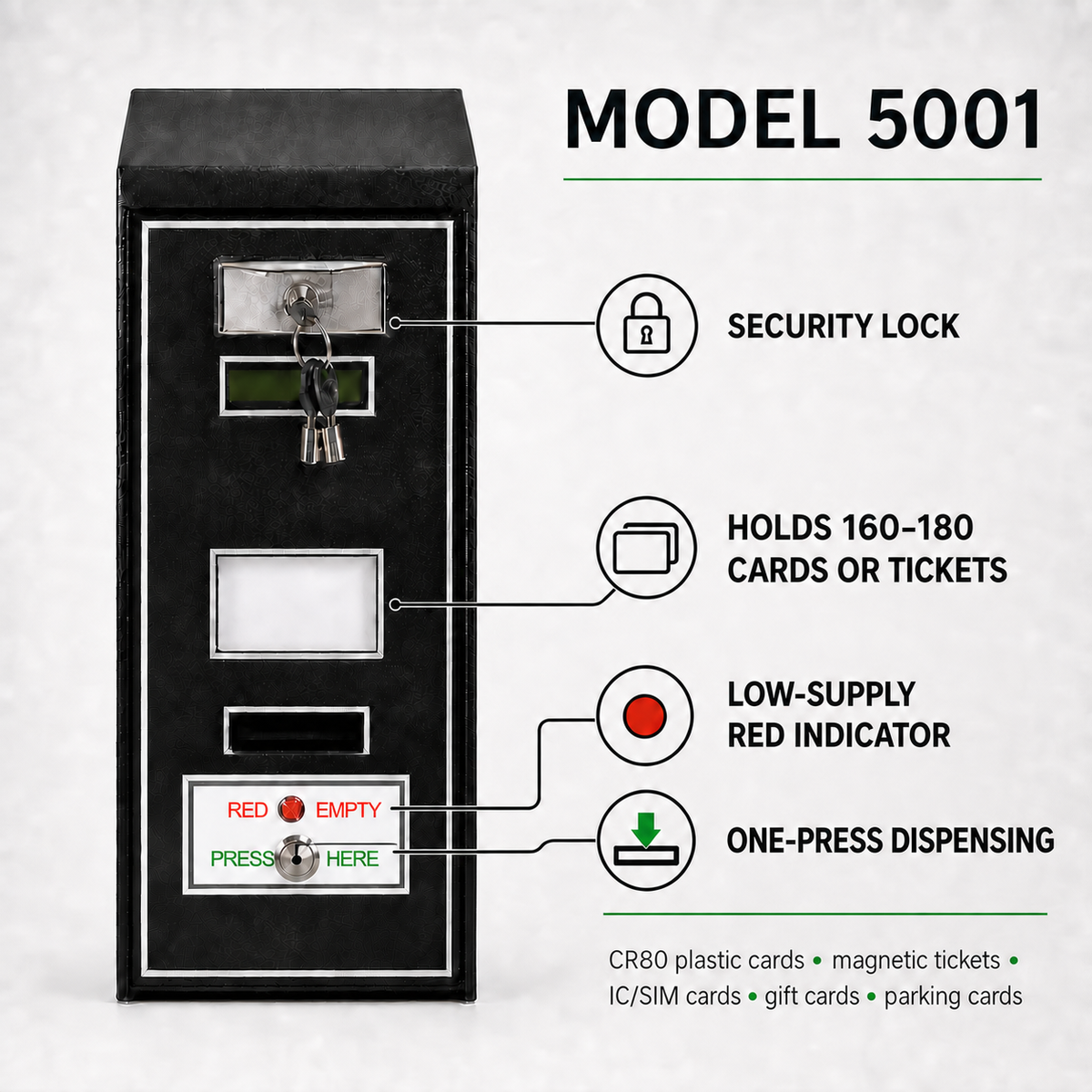

This card and ticket dispenser mounts the TCD-180M dispenser mechanism inside a metal cabinet with a T-handle high-security lock, for standalone use or integration with your own control system. It dispenses cards or tickets with a momentary press of the illuminated green push button, or via trigger from an included serial cable.

Holds roughly 160-180 standard CR80 plastic cards, magnetic tickets, IC/SIM cards, gift cards, parking cards, and similar media. A low-inventory sensor lights a red LED when the card magazine is running low.

Includes a 1x12 pulse-mode connector cable for wiring into your own control board, with an optional serial interface. Powered by a 24VDC 5-amp desktop power supply.

Shipping outside the US? We ship to US-based freight-forwarder addresses, or contact us to arrange international delivery.

Our equipment and technical support are built around US electrical standards (voltage, plug types, and certifications) - we're unable to guarantee compatibility or provide support for international electrical systems.

Plug-and-play install. Splices into an existing power cord or outlet — no breaker or panel work.

How it works

01. Install

Wire into your existing machine, outlet, or coin mechanism — most models splice in or run in parallel, so you keep the equipment that already works.

02. Customers pay

Credit card, debit card, mobile wallet, or the Clear Token phone app, depending on the model — no coins or cash box to manage.

03. Equipment runs

A vend pulse or timed cycle activates your machine automatically, the same way a coin drop would — no attendant required.

Product Details

Specifications
Card Capacity 160-180+ CR80 cards at .030 in thickness
Card Dimensions 54 x 85 mm (CR80 standard)
Dispenser Mechanism Dimensions 9 in H x 3.25 in W x 6.5 in L
Weight 3.3 lbs (dispenser mechanism)
Operating Voltage 24VDC (2A max, 0.1A static)
Power Supply 24VDC, 5 Amp desktop supply
Card Thickness Range 0.2-2.4 mm, adjustable (factory default 0.8 mm / .030 in)
Operating Temperature -30C to 70C
Mounting M3 screw holes, compatible with Asahi Seiko or XCP CTD-200 series

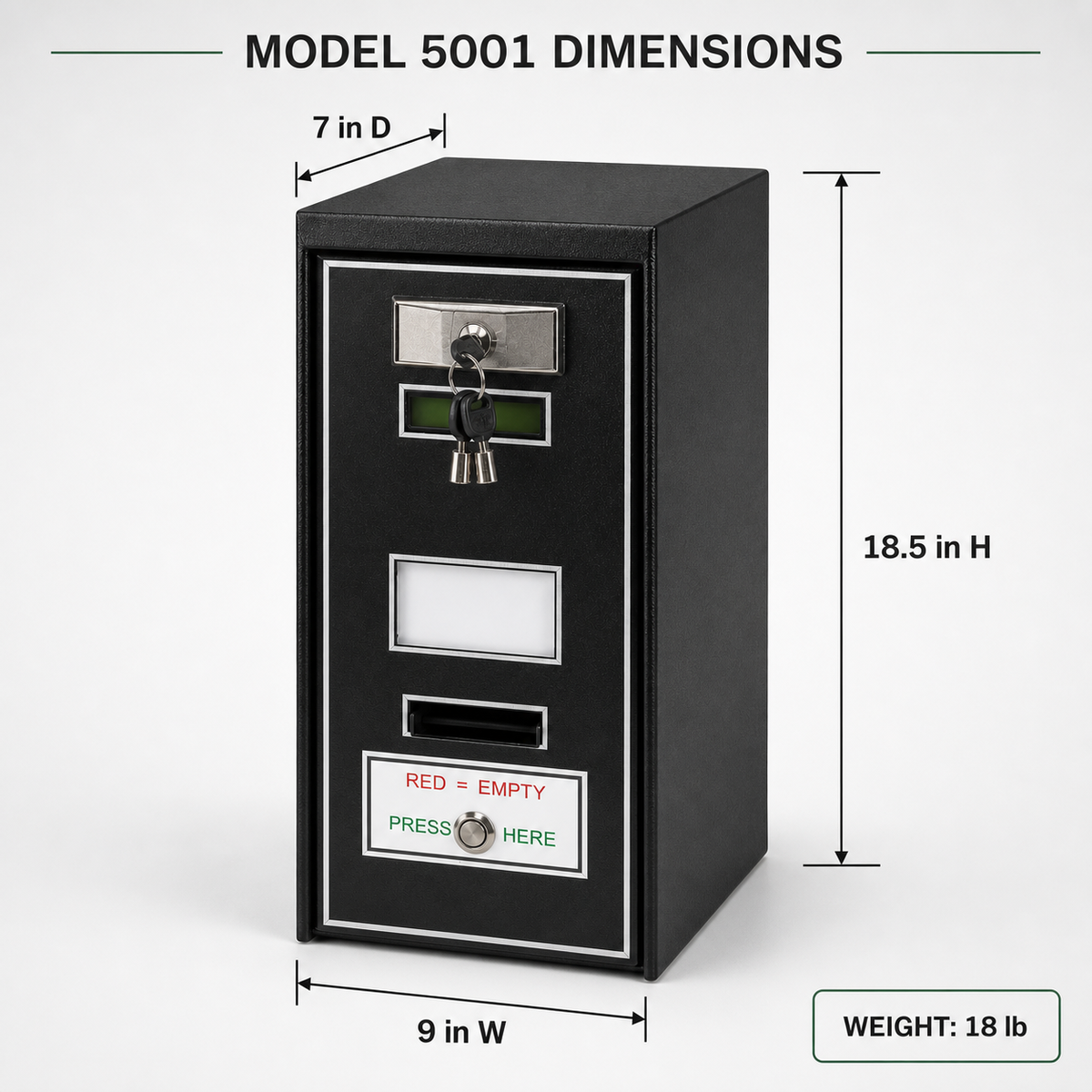

Product Dimensions 9 x 7 x 18.5 in
Shipping Dimensions 20 x 10 x 10 in, 20 lbs boxed

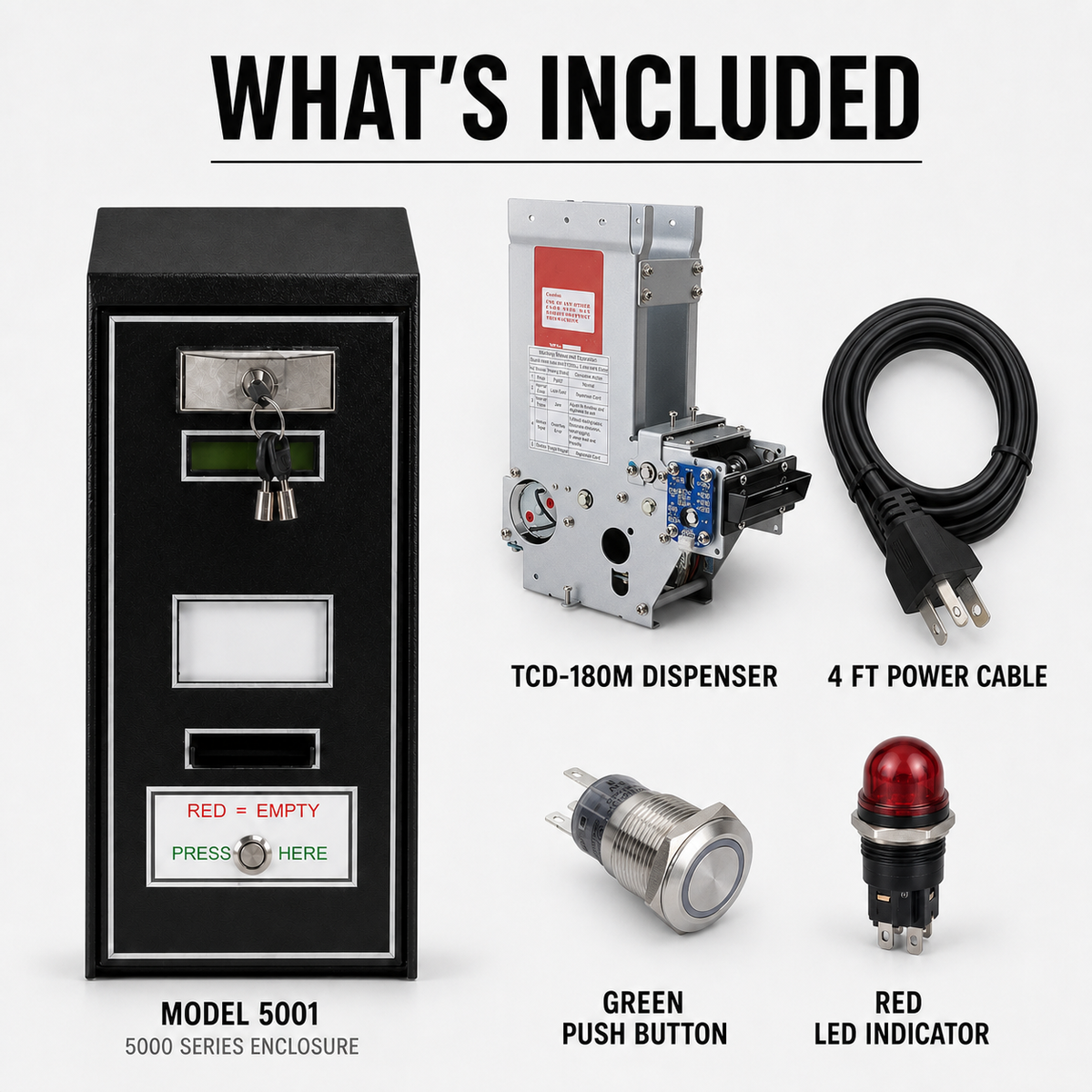

What's in the Box
  • TCD-180M card/ticket dispenser mechanism
  • 1x12 connector plug pulse mode cable
  • Mounting plate and front black card exit bezel
Compatibility
  • Magnetic cards, transit tickets, IC/SIM cards, bank and gift cards, scratch tickets, parking cards, phone/WiFi cards
  • Integrates with existing control boards via pulse-mode or optional serial interface
  • Compatible mounting with Asahi Seiko or XCP CTD-200 series
