Model TCD-180M Card & Ticket Dispenser

SKU: 900527-180M
$195.00 USD
Shipping calculated at checkout.
In stock: 221
Description

The VendaCard TCD-180M is a 24V DC metal card and ticket dispenser mechanism for dispensing magnetic cards, transit and gaming tickets, IC/SIM cards, bank and gift cards, pull and scratch tickets, parking cards, and phone/WiFi cards.

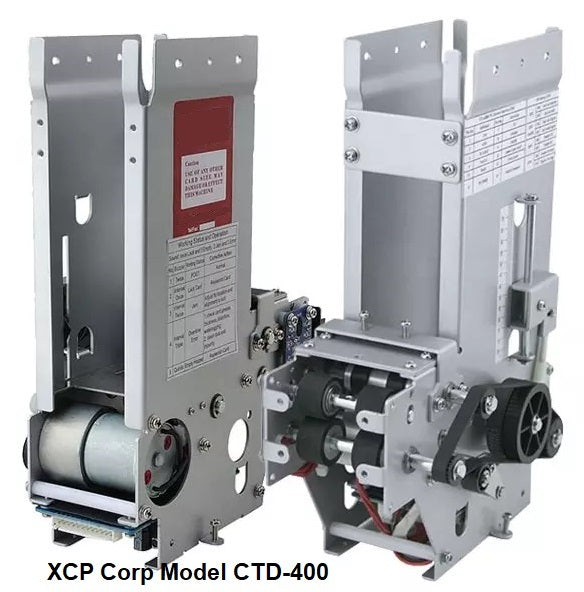

It connects via a 1x12 pulse-mode cable for straightforward wiring into an existing control board, with an optional RS232 serial interface for direct electronic control. Mounting holes match the Asahi Seiko and XCP CTD-200 series, so it drops into existing installations.

Card/ticket thickness is field-adjustable from 0.2mm to 2.4mm, with automatic alarms for jams and an empty magazine.

Shipping outside the US? We ship to US-based freight-forwarder addresses, or contact us to arrange international delivery.

Our equipment and technical support are built around US electrical standards (voltage, plug types, and certifications) - we're unable to guarantee compatibility or provide support for international electrical systems.

Plug-and-play install. Splices into an existing power cord or outlet — no breaker or panel work.

How it works

01. Install

Wire into your existing machine, outlet, or coin mechanism — most models splice in or run in parallel, so you keep the equipment that already works.

02. Customers pay

Credit card, debit card, mobile wallet, or the Clear Token phone app, depending on the model — no coins or cash box to manage.

03. Equipment runs

A vend pulse or timed cycle activates your machine automatically, the same way a coin drop would — no attendant required.

Product Details

Specifications
Operating Voltage 24VDC (max 2A, static 0.1A)
Dimensions 9 in x 3.25 in x 6.5 in
Weight 1.5 kg / 3.3 lbs (including cards)
Working Temperature -30C to 70C
Working Humidity 30-90%
Card Size 54mm x 85mm (±0.5mm)
Card/Ticket Thickness 0.2mm to 2.4mm (factory default 0.8mm)

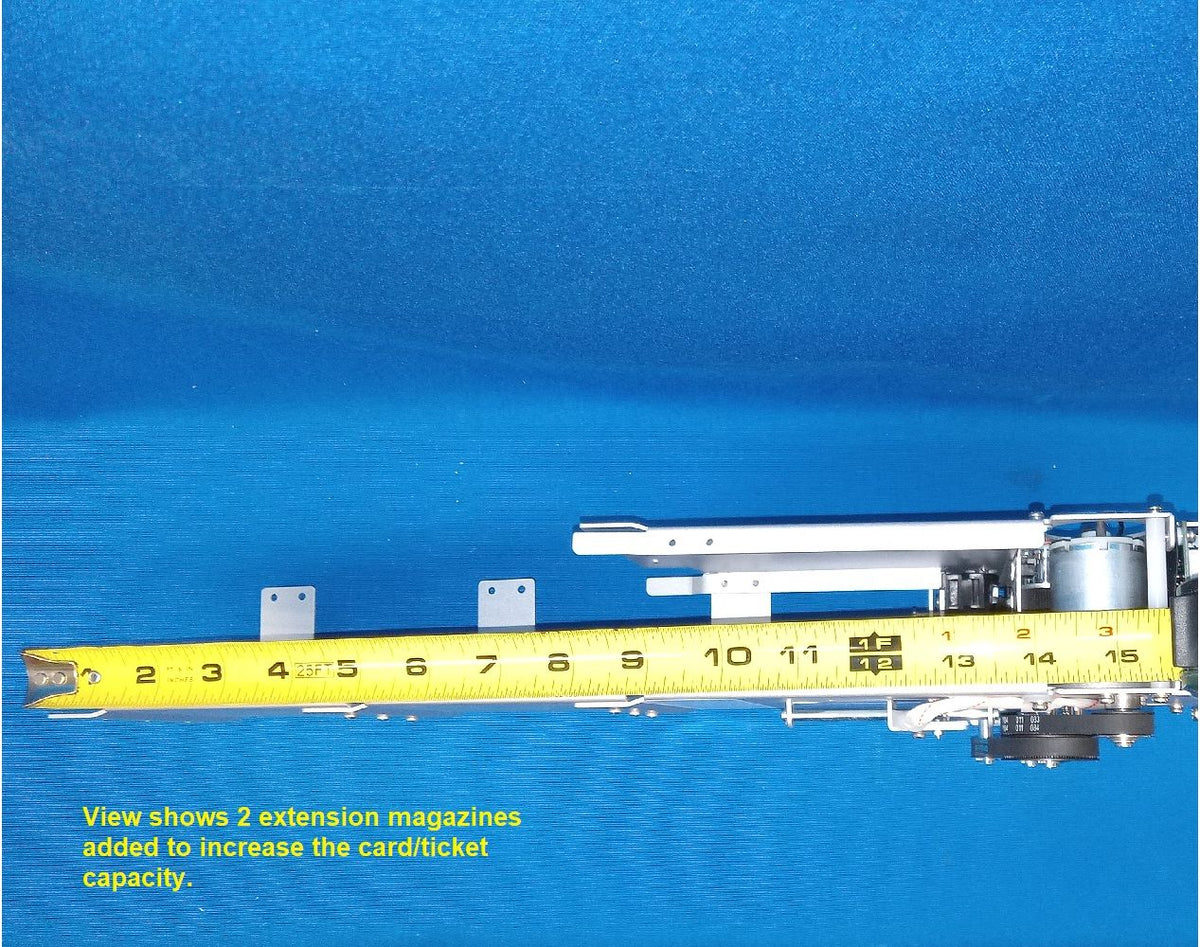

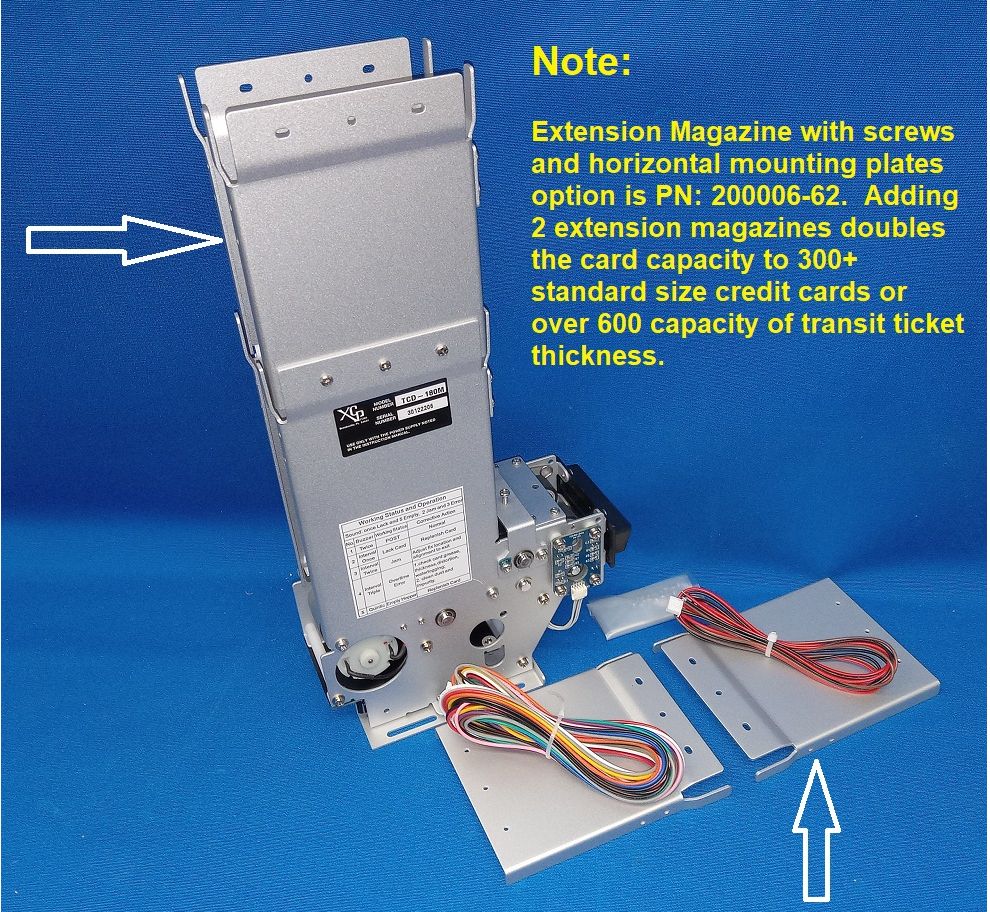

Card/Ticket Capacity 150 pcs at 0.8mm, 300+ pcs at 0.20-0.24mm
Dispensing Time ~0.5 seconds at 24VDC
Control Interface I/O (CN3) and RS232 (CN7)

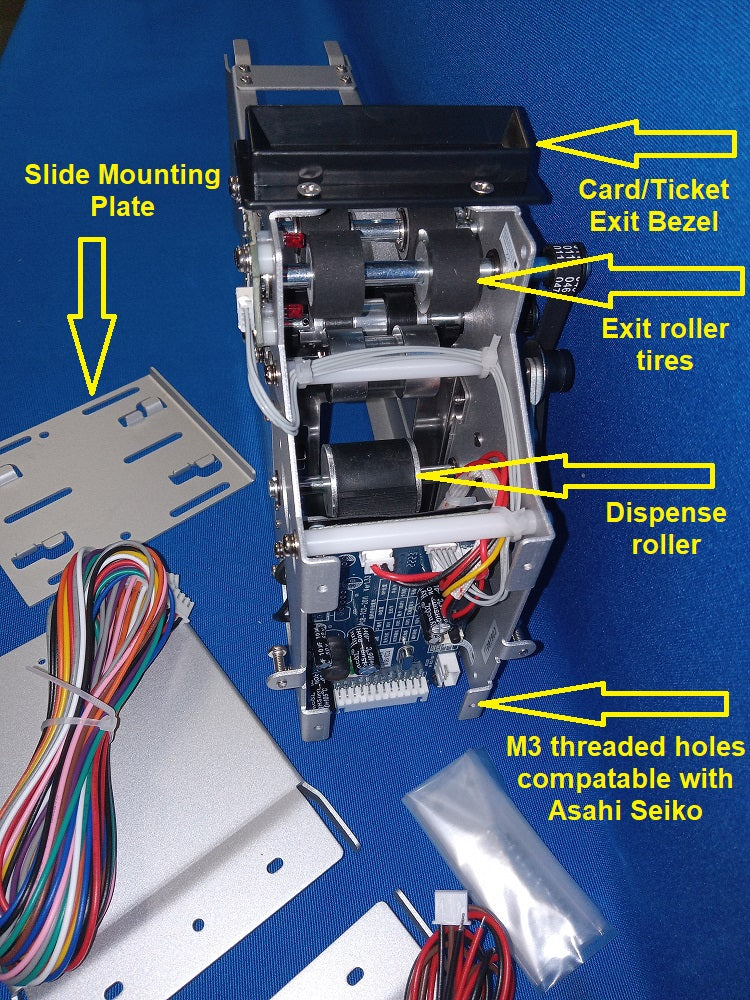

What's in the Box

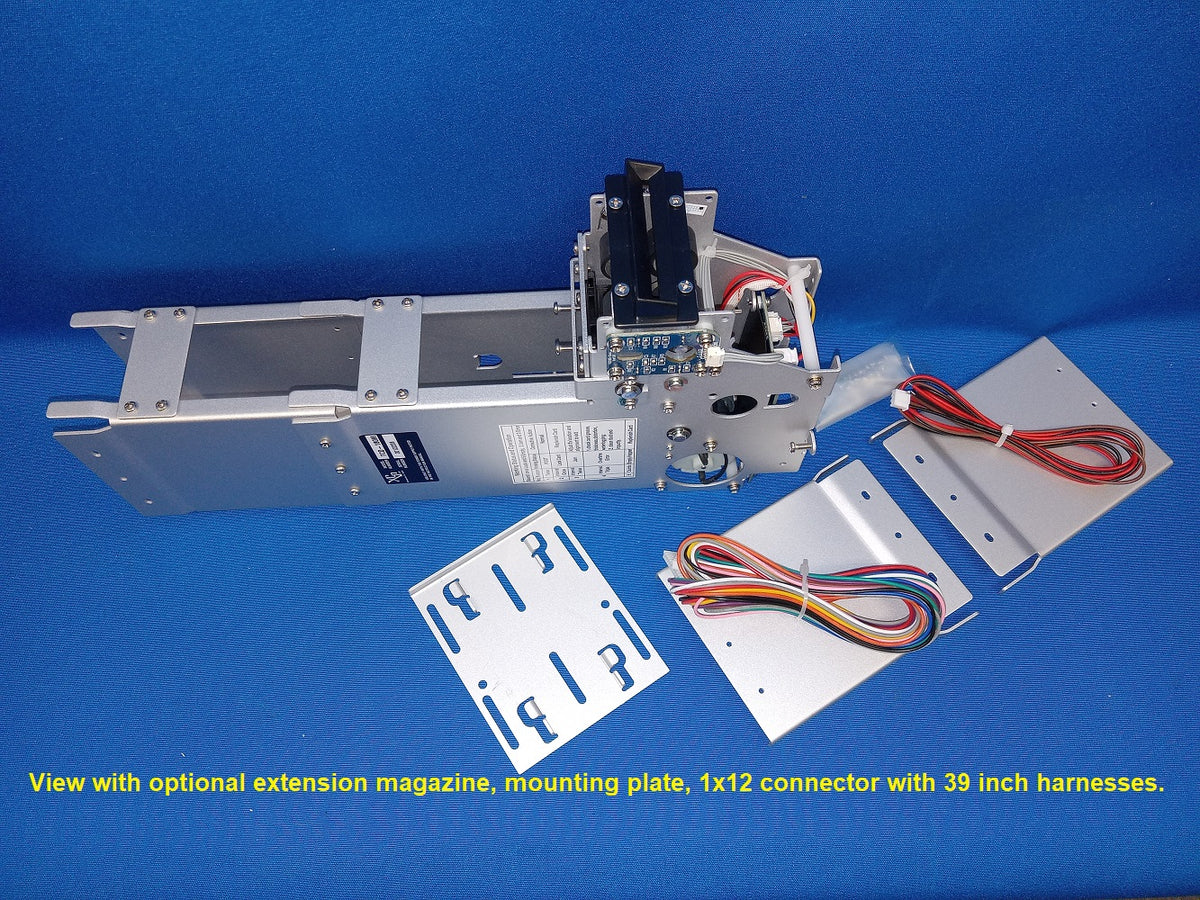

  • 1x12 connector plug pulse mode cable
  • Mounting plate
  • Front black card exit bezel
Compatibility
  • Transit and gaming tickets
  • IC and SIM cards
  • Bank and gift cards
  • Pull-tab and scratch tickets
  • Parking cards and tickets
  • Telephone, cellular, and WiFi cards
  • Asahi Seiko and XCP CTD-200 series mounting compatible
