Model 1001N

SKU: 900513-061
$795.00 USD $695.00 USD
Sale 12.58% $100.00 USD (12.58%)
Shipping calculated at checkout.
In stock: 9
Description

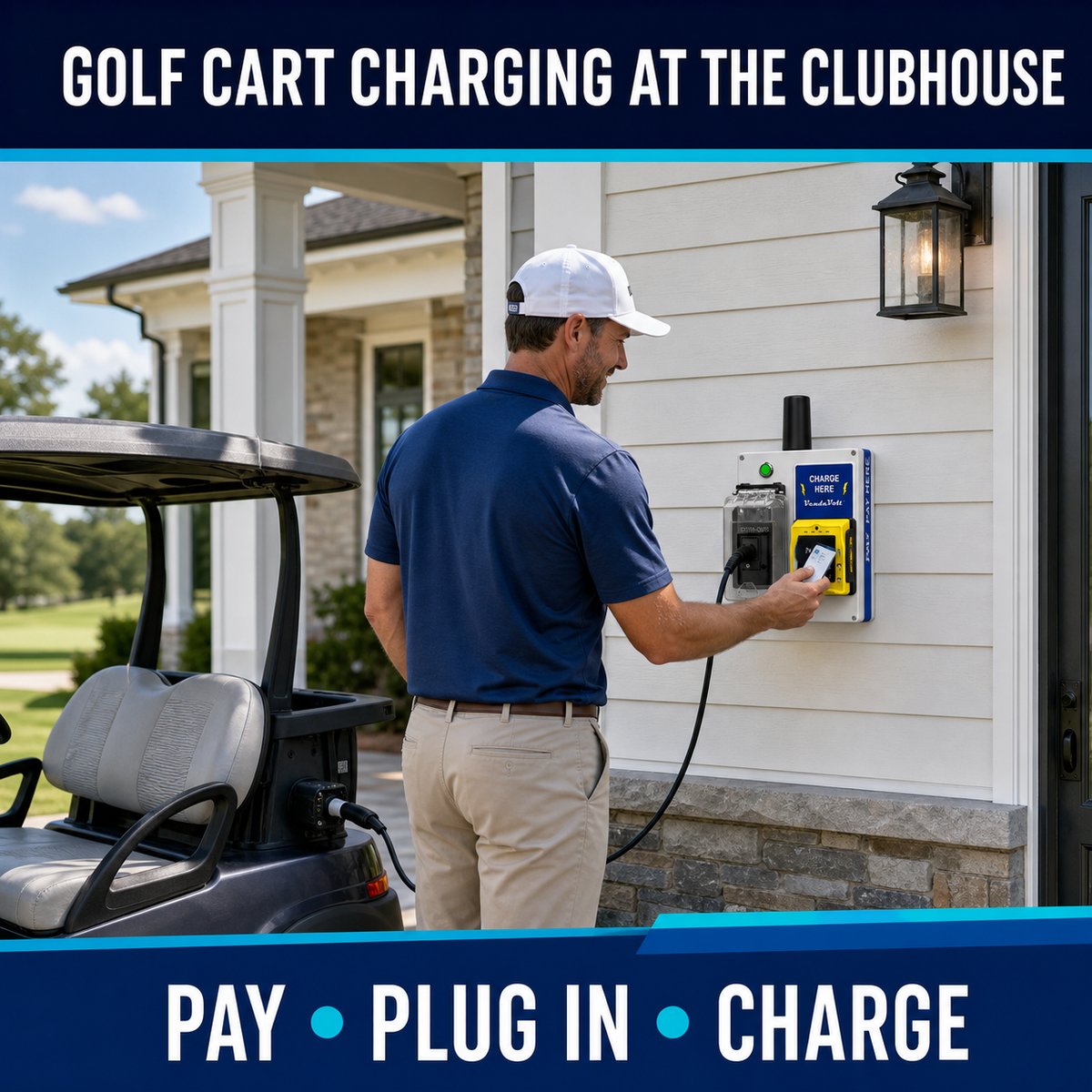

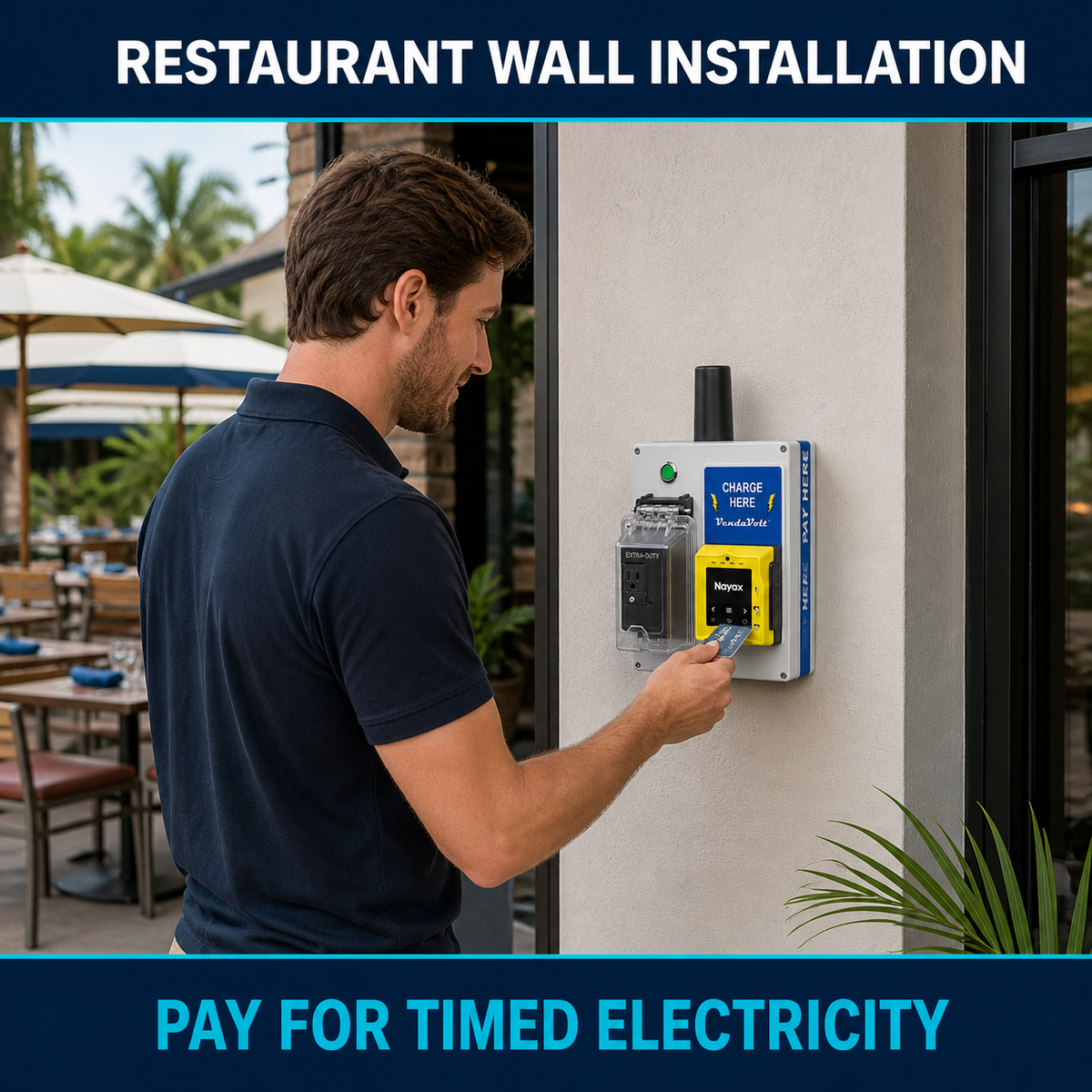

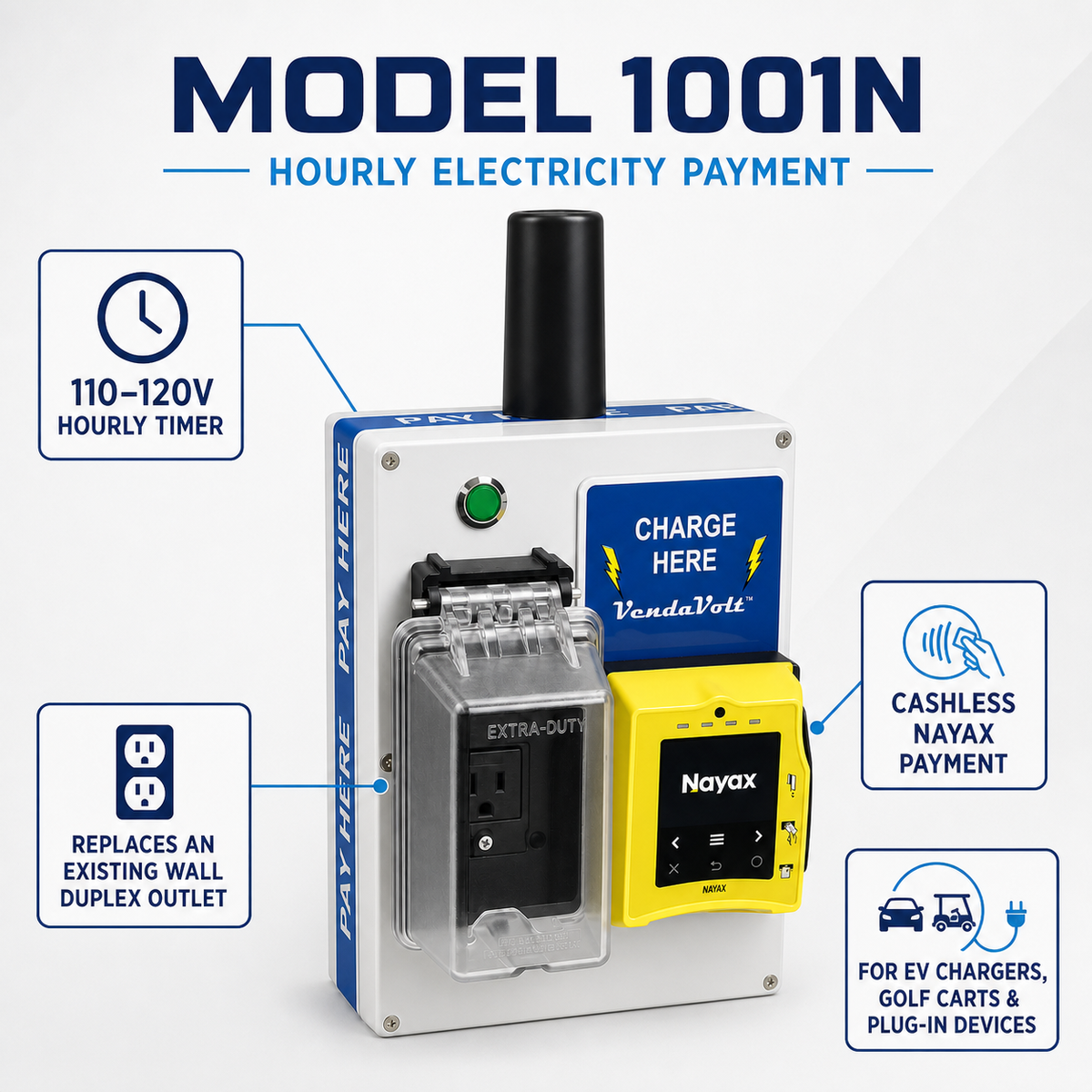

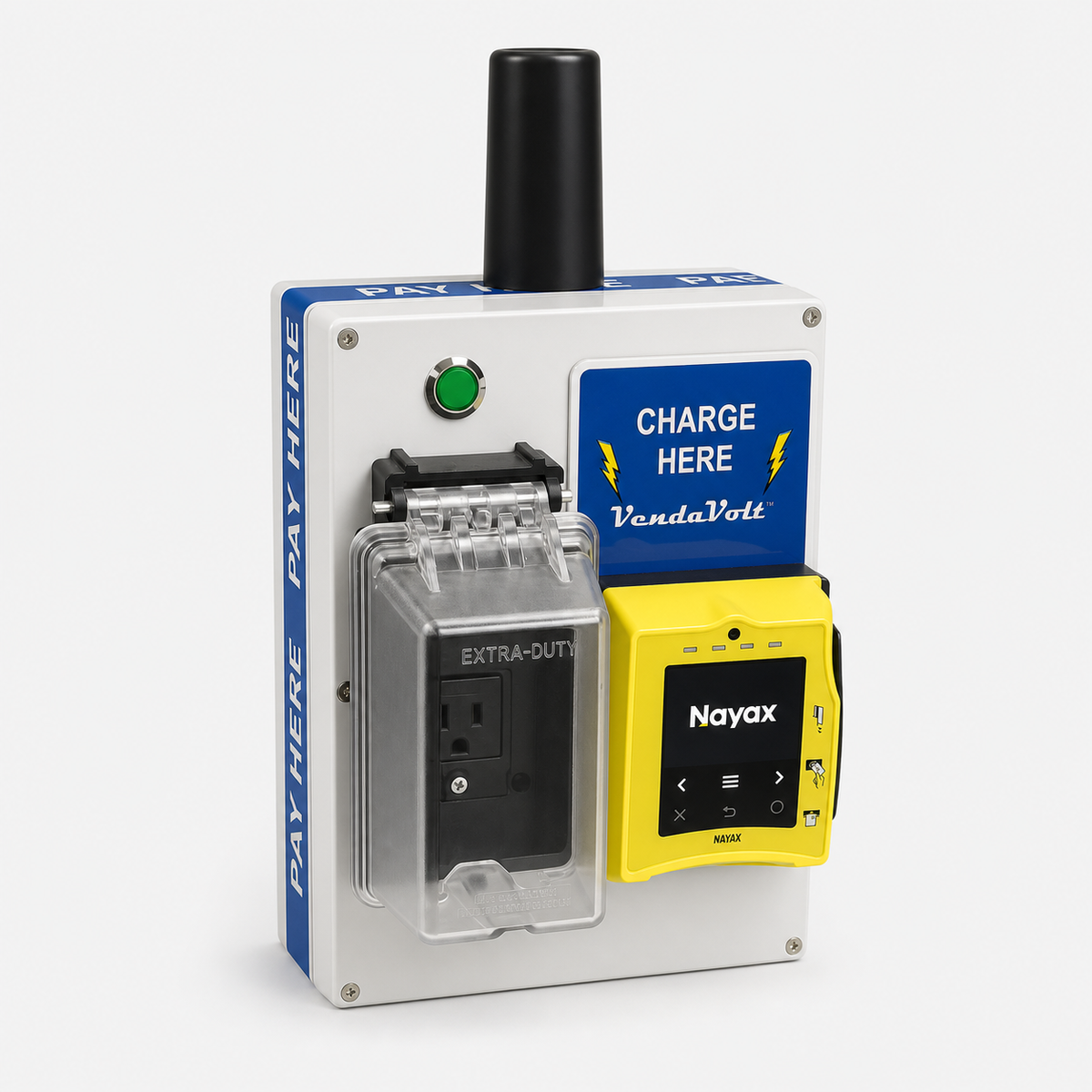

The Model 1001N is a 110-120V hourly-timer payment station that replaces an existing wall duplex outlet — ideal for EV chargers, golf cart chargers, or any plug-in electrical device at restaurants, shopping centers, hotels, or government sites.

Customers pick from up to 6 preset time/price combinations (for example, $5 for 1 hour up to $30 for 6 hours) on the Nayax Vpos Touch keypad, and the 20A GFCI outlet turns on for the paid duration. Only 1 outlet can be activated at a time.

Accepts Visa, Mastercard, Discover, American Express, Apple Pay, Google Wallet, and VendaCard. Wall or post mounted with included hardware. Backed by a 1-year warranty.

Shipping outside the US? We ship to US-based freight-forwarder addresses, or contact us to arrange international delivery.

Our equipment and technical support are built around US electrical standards (voltage, plug types, and certifications) - we're unable to guarantee compatibility or provide support for international electrical systems.

Professional install recommended. Wires to multiple machines or a dedicated circuit — most operators use a licensed electrician.

How it works

01. Install

Wire into your existing machine, outlet, or coin mechanism — most models splice in or run in parallel, so you keep the equipment that already works.

02. Customers pay

Credit card, debit card, mobile wallet, or the Clear Token phone app, depending on the model — no coins or cash box to manage.

03. Equipment runs

A vend pulse or timed cycle activates your machine automatically, the same way a coin drop would — no attendant required.

Product Details

Specifications
Repeat Accuracy 0.5%
Relay Rating Up to 40 Amps at 110VAC
Input Power 110-120V, 20 Amp host circuit
Outlet 20A GFCI dual outlet with waterproof cover (configurable as single outlet)
Wiring 12 AWG hot, white, and ground
Timer Selections 6 programmable time/price combinations
Mounting Wall or post (4 included self-threading screws)

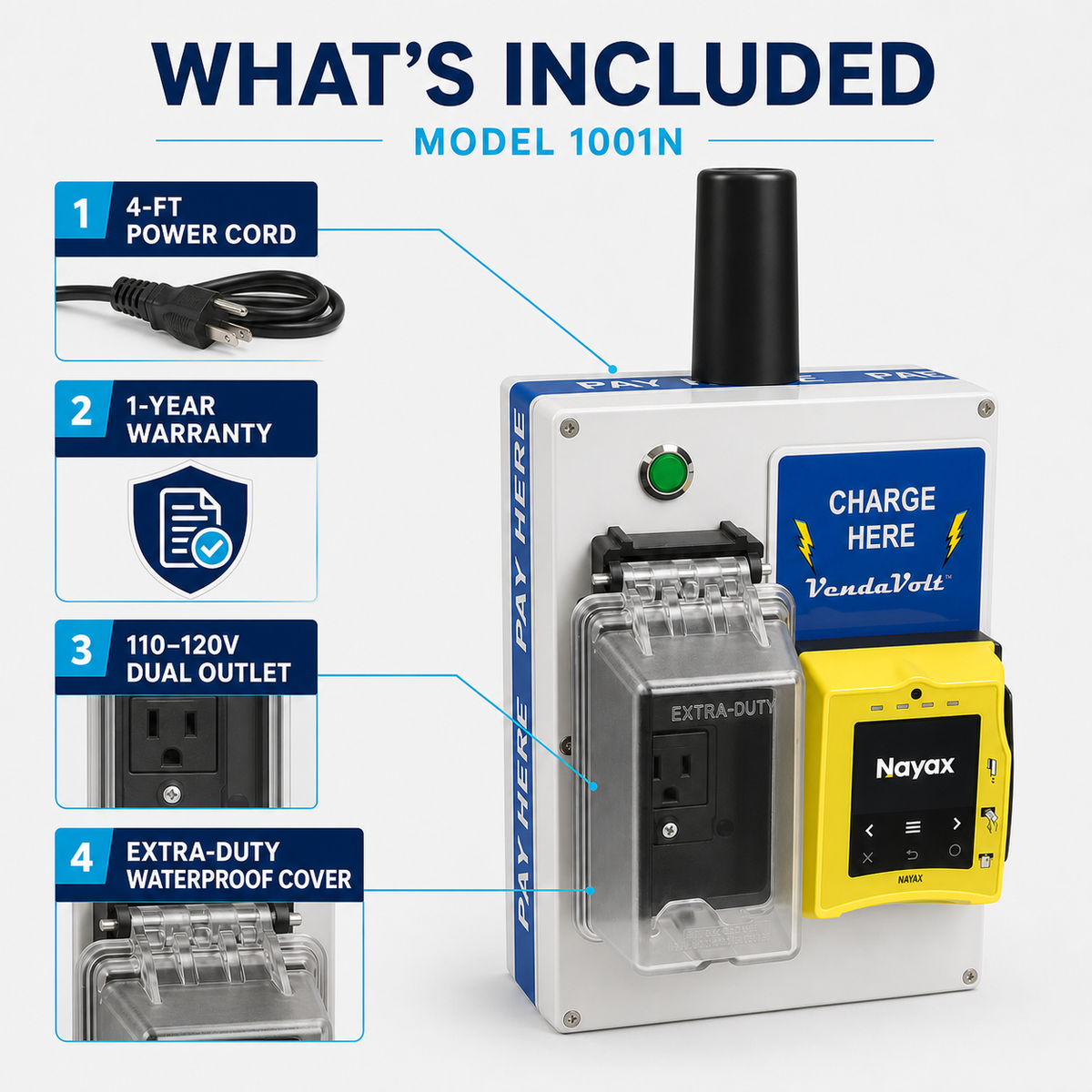

What's in the Box
  • Microcontroller-based timer unit with high-gain antenna
  • 20A GFCI dual outlet with waterproof cover
  • 4 self-threading mounting screws
  • Pre-installed multi-carrier cellular SIM card
Compatibility
  • 110-120V EV chargers and golf cart chargers
  • Any 110-120V electrical device
  • Visa, Mastercard, Discover, American Express
  • Apple Pay and Google Wallet
  • VendaCard prepaid cards
