Model 1000N 110-120V

SKU: 900573-016
$895.00 USD $695.00 USD
Sale 22.35% $200.00 USD (22.35%)
Shipping calculated at checkout.
In stock: 10
Description

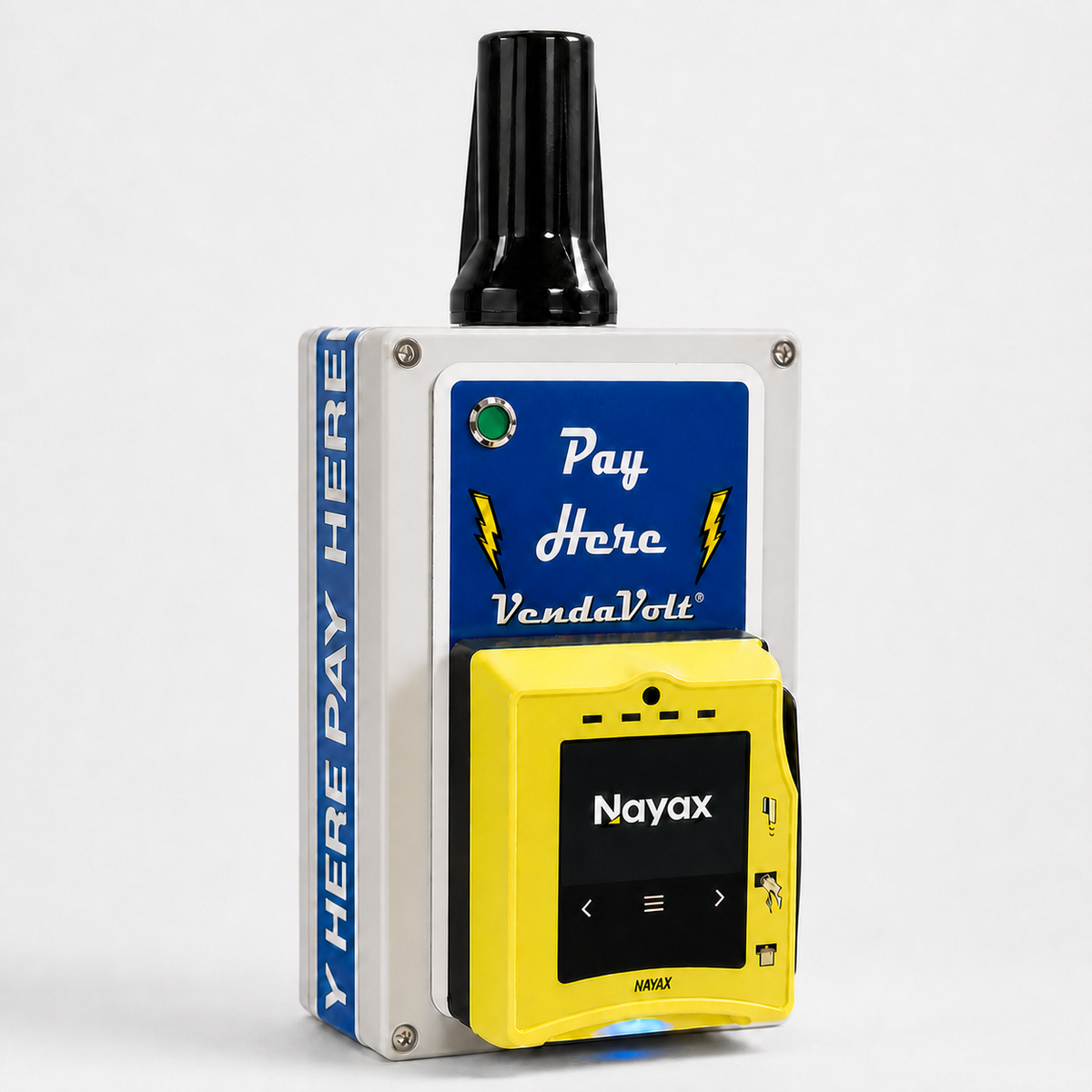

This single-machine XCP timer payment station adds cashless payment to any device with a timed cycle, splicing in-line with the existing power cord. It accepts Visa, Mastercard, Discover, American Express, Apple Pay, and Google Wallet.

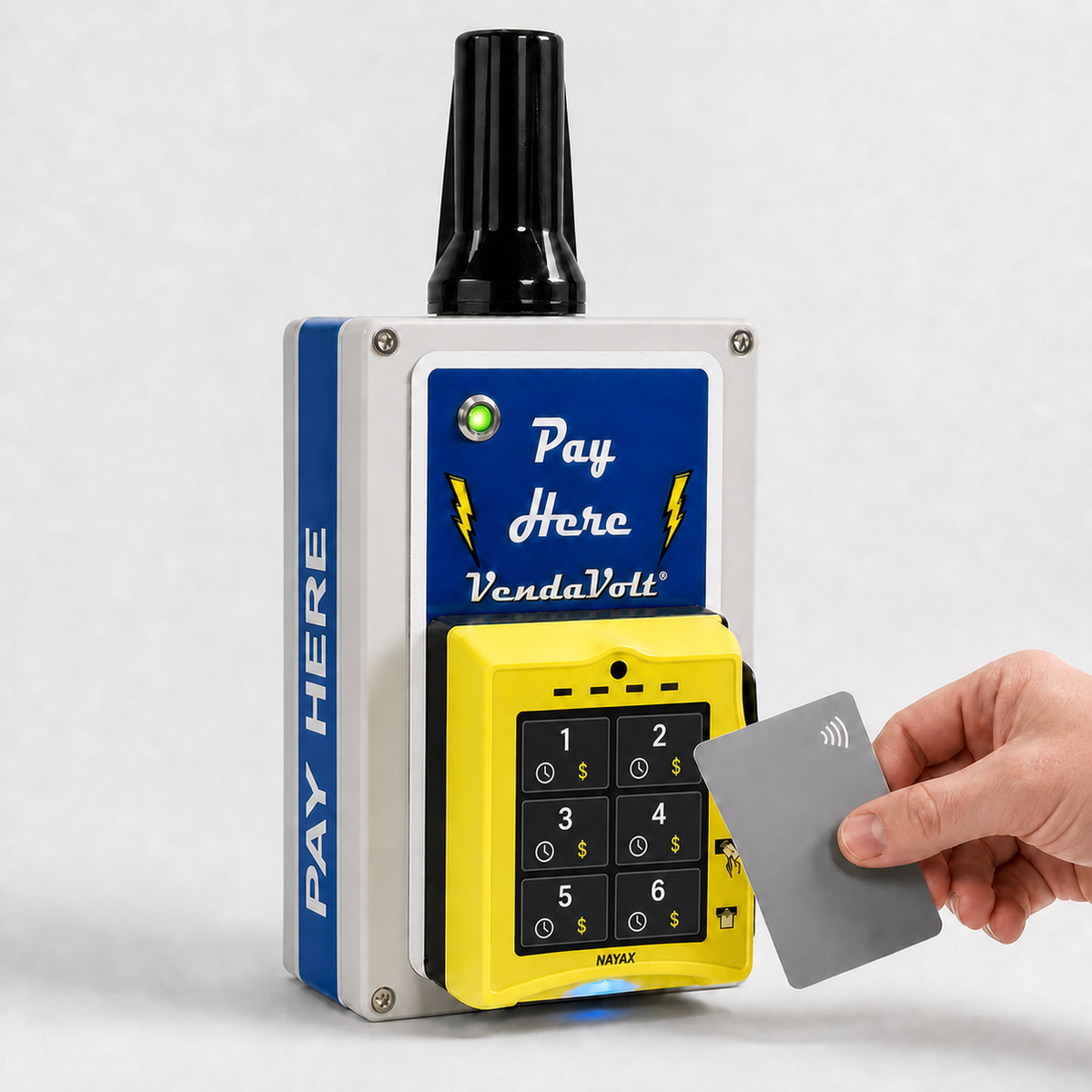

Set up to 6 different time-and-price combinations on the Nayax keypad for example, a shorter, cheaper cycle alongside a longer, pricier one and the built-in timer board accumulates the selected time.

The onboard relay provides a 10 Amp dry contact with common, normally open, and normally closed connections.
Professional install recommended. Wires to multiple machines or a dedicated circuit — most operators use a licensed electrician.
Inquire about this product

Inquiry

How it works

01. Install

Wire into your existing machine, outlet, or coin mechanism — most models splice in or run in parallel, so you keep the equipment that already works.

02. Customers pay

Credit card, debit card, mobile wallet, or the Clear Token phone app, depending on the model — no coins or cash box to manage.

03. Equipment runs

A vend pulse or timed cycle activates your machine automatically, the same way a coin drop would — no attendant required.

Product Details

Specifications
Vend Price Range $0.01 to $999.99
Vend Pulse Duration 50ms to 10 seconds
Keypad Selections 1 to 6 time/price combinations
Repeat Accuracy 0.5%
Relay Rating Up to 10 Amps at 250VAC
Input Power 110-120V
Output Power 12VDC, 1 Amp
Power Cord 5 ft, 18 AWG

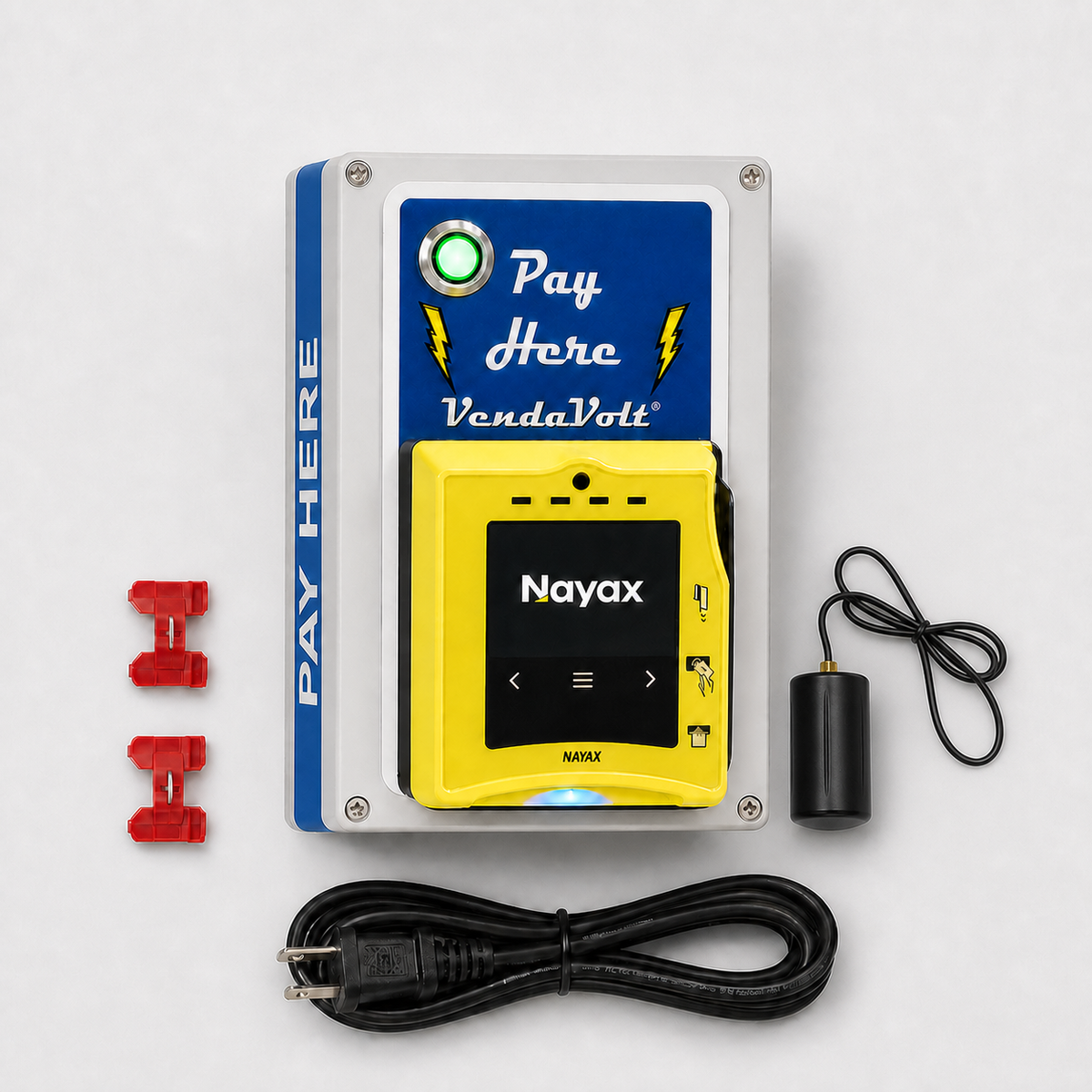

What's in the Box
  • Two (2) red 3M wire splice connectors (for splicing to existing device power cord)
  • 5 foot, 18 AWG power cord
Compatibility
  • Single timed-cycle machines and devices
  • Visa, Mastercard, Discover, American Express
  • Apple Pay and Google Wallet
