Model 1006N

SKU: 900513-0631A
$1,295.00 USD $895.00 USD
Sale 30.89% $400.00 USD (30.89%)
Shipping calculated at checkout.
In stock: 10
Description

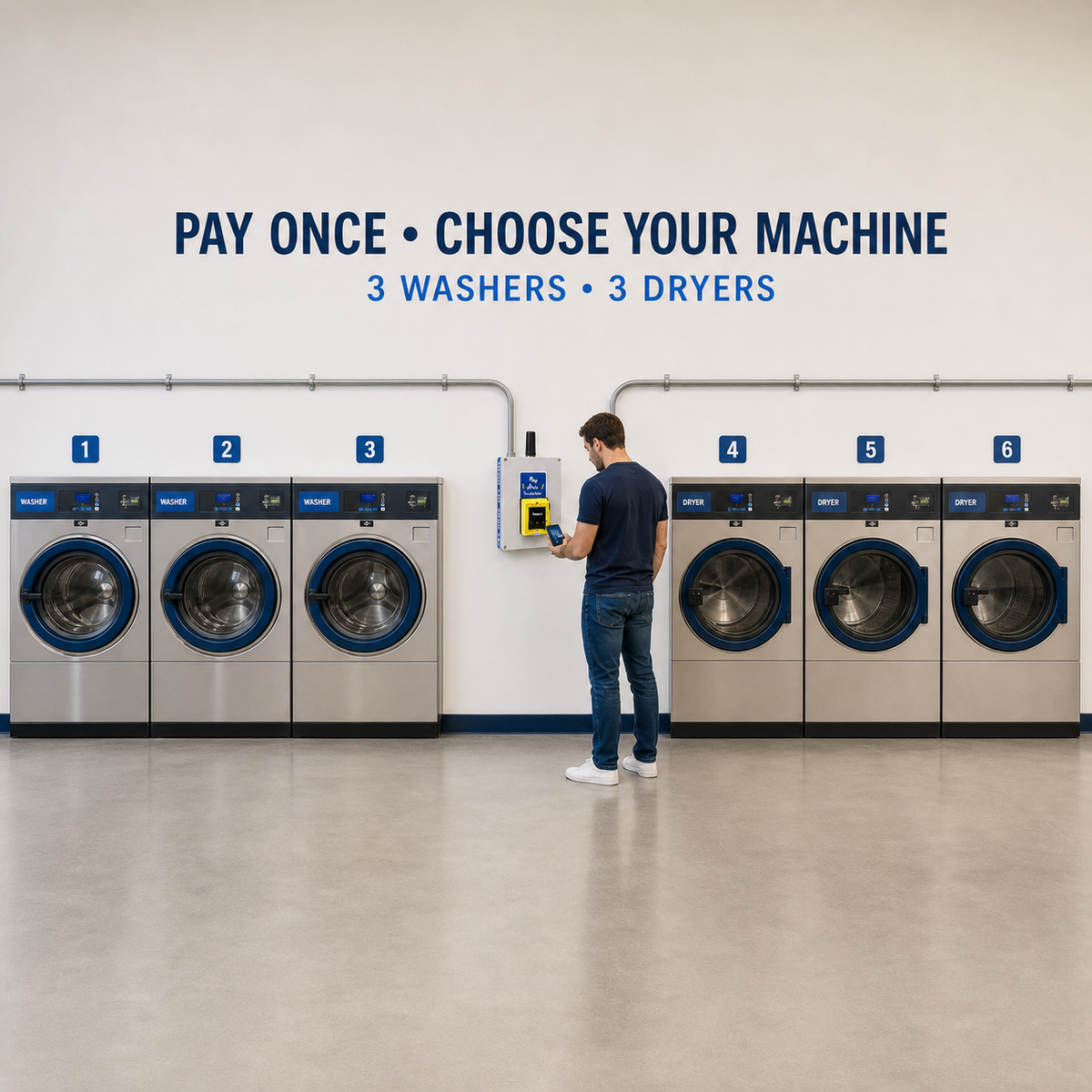

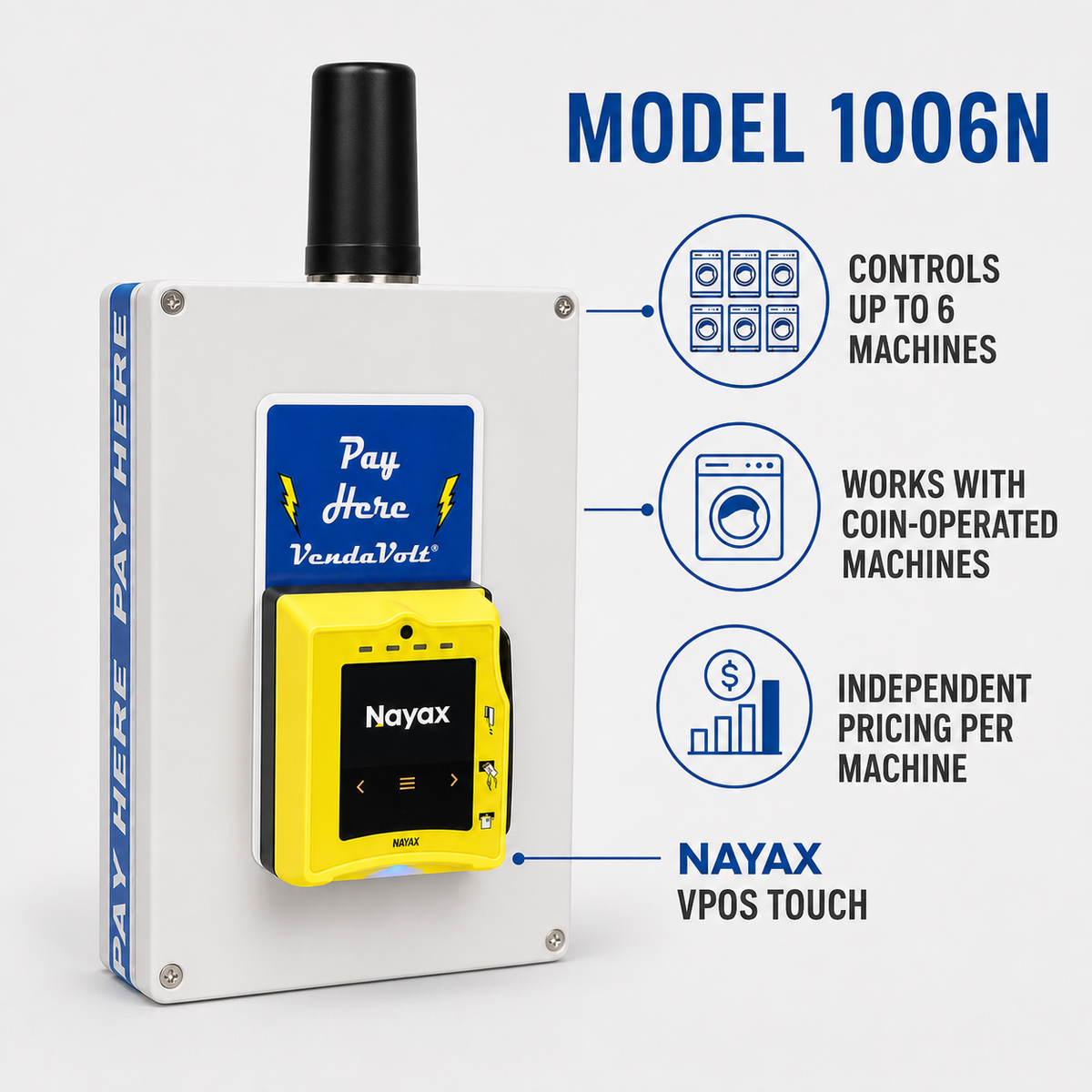

The Model 1006 adds cashless payment to 1-6 existing coin-operated washers and dryers from one central station. It wires in parallel with your existing coin drop or coin slide, so machines can still take coins too. This central station only works with coin-operated washers and dryers that use a coin slide or coin drop mechanism — it isn't compatible with push-button, card-only, or fully electronic machines.

Set independent prices per machine — for example, $4 for a small washer and $7 for a large dryer — and the station sends the matching number of vend pulses once payment clears. Also works with vintage mechanical coin-timer motors, with an additional timer module.

Accepts Visa, Mastercard, Discover, American Express, Apple Pay, and Google Wallet. Backed by XCP's warranty and US-based support.

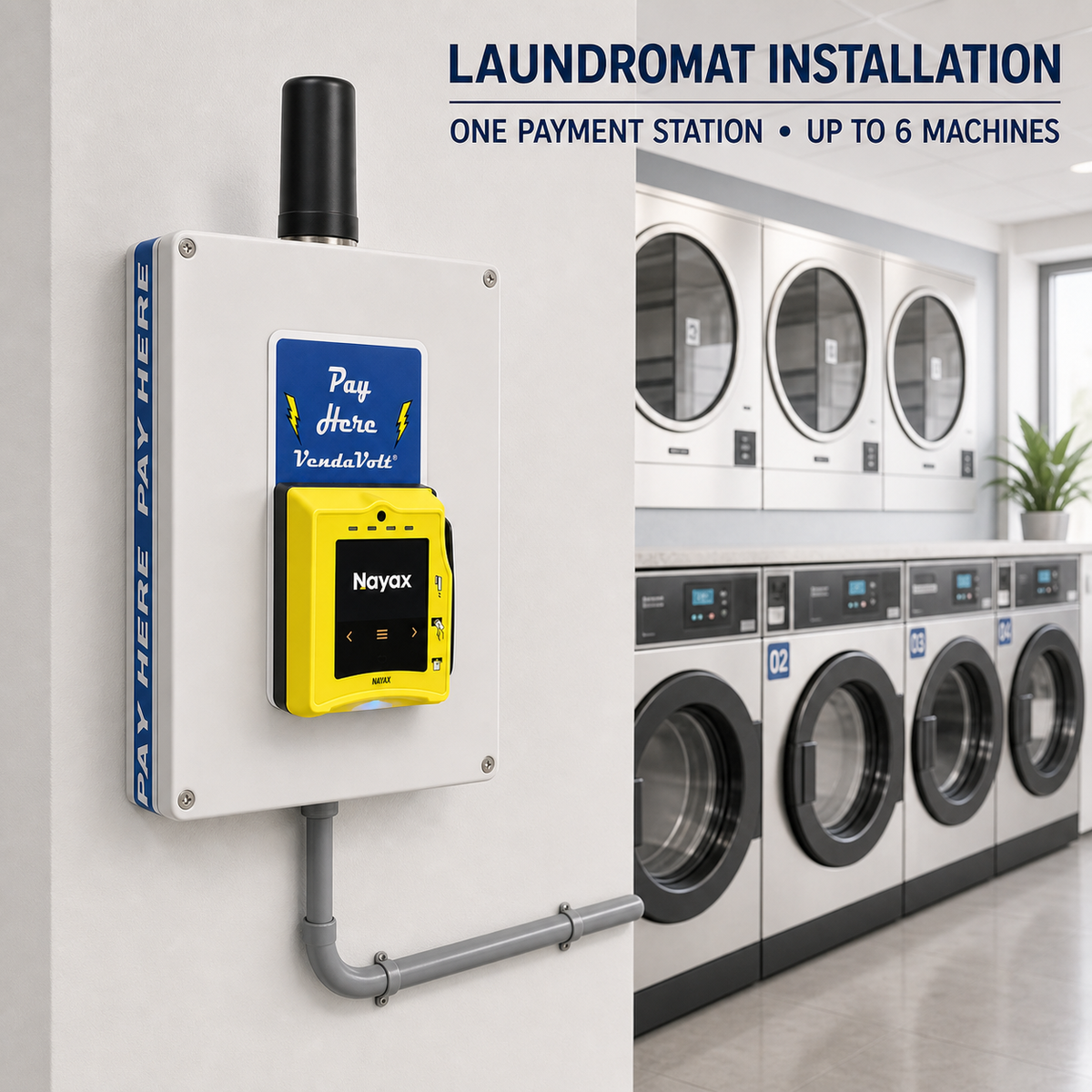

Professional install recommended. Wires to multiple machines or a dedicated circuit — most operators use a licensed electrician.
Inquire about this product

Inquiry

How it works

01. Install

Wire into your existing machine, outlet, or coin mechanism — most models splice in or run in parallel, so you keep the equipment that already works.

02. Customers pay

Credit card, debit card, mobile wallet, or the Clear Token phone app, depending on the model — no coins or cash box to manage.

03. Equipment runs

A vend pulse or timed cycle activates your machine automatically, the same way a coin drop would — no attendant required.

Product Details

Specifications
Vend Price Range $0.01 to $999.99
Vend Pulse Duration 50ms to 10 seconds
Machine Capacity 1 to 6 washers/dryers
Repeat Accuracy 0.5%
Relay Rating Up to 5 Amps at 250VAC
Input Power 110-120V
Output Power 12VDC, 1 Amp
What's in the Box
  • Six optically isolated control boards with relay contacts
  • 100 ft of 20 AWG two-conductor stranded wire cable
  • Twelve red 3M wire splice connectors
  • Four 1/2 in x 12 in gray plastic conduit sections
  • Three 1/2 in coupling fittings
Compatibility
  • 1 to 6 coin-operated washers and/or dryers
  • Vintage mechanical coin-timer motor washers/dryers (requires XCP Electricity Timer)
  • Visa, MasterCard, Discover, American Express
  • Apple Pay and Google Wallet
