Model 1006NW

SKU: 306013-VP6A
Regular price $1,595.00 USD
Shipping calculated at checkout.
In stock: 10
Description

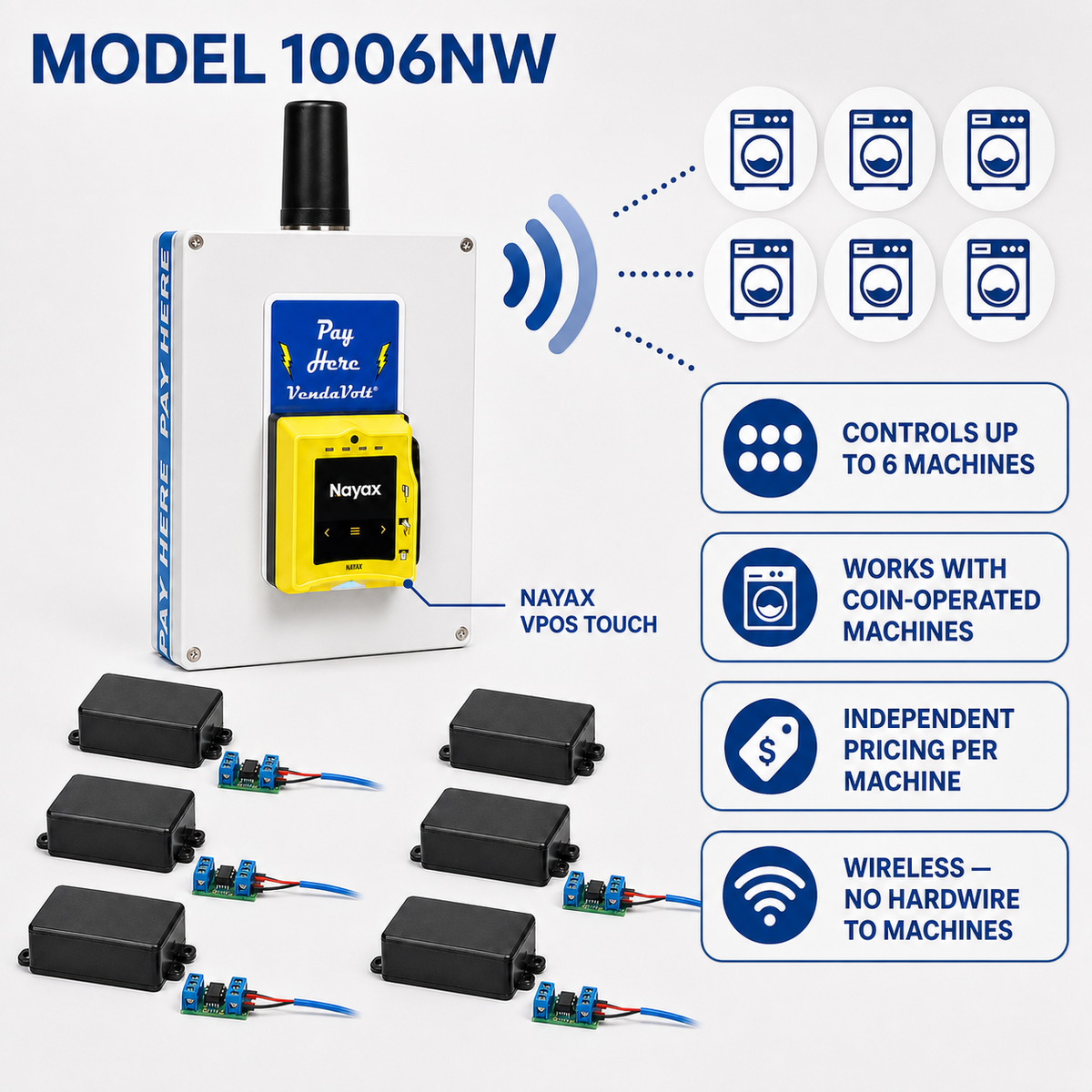

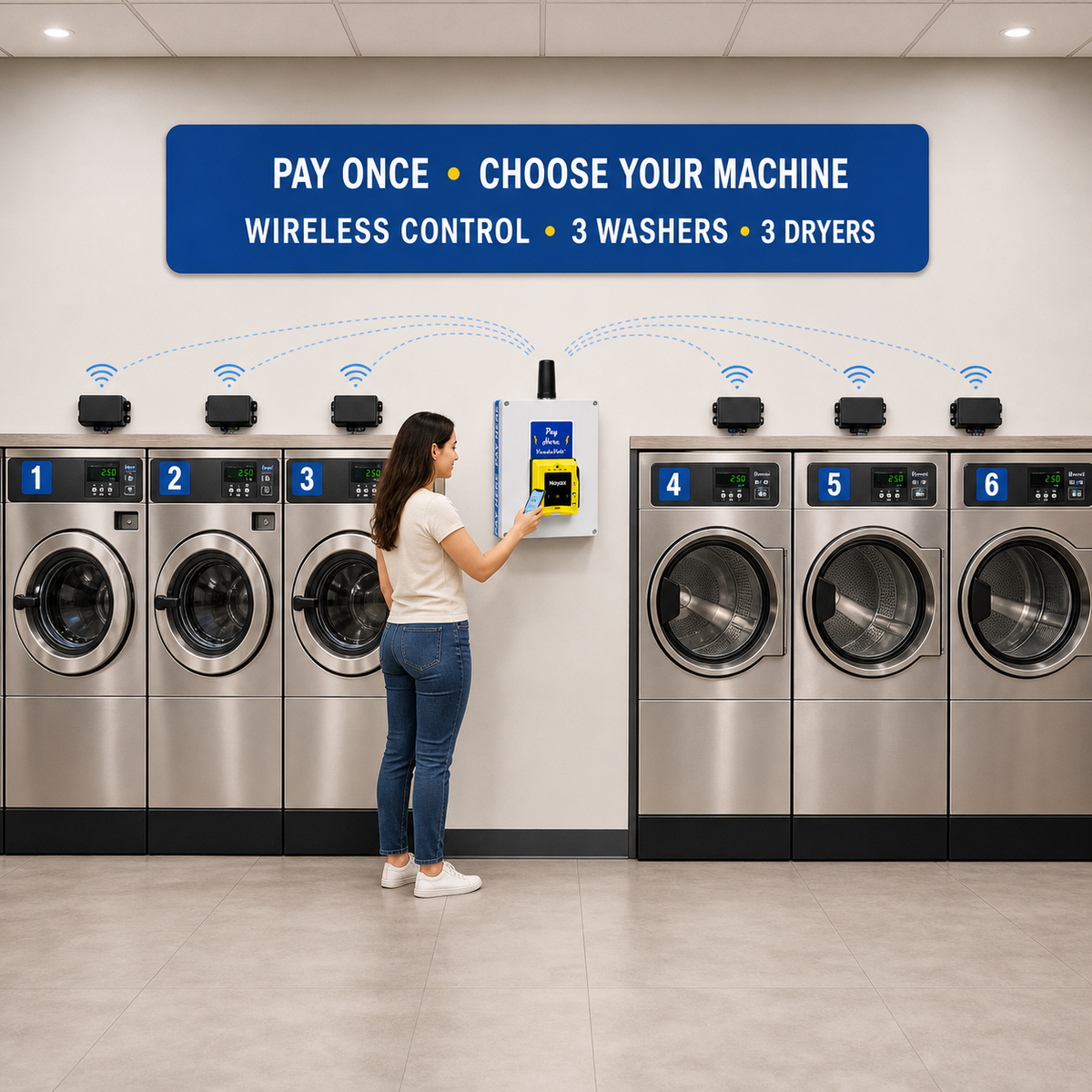

The XCP Nayax Vpos Touch Central Payment Station adds cashless payment to 1-6 existing coin-operated machines from one unit for example, three washers and three dryers. It wires in parallel with each machine's existing coin drop or coin slide, so machines can still take coins too. This central station only works with coin-operated washers and dryers that use a coin slide or coin drop mechanism — it isn't compatible with push-button, card-only, or fully electronic machines.

The touch screen is configured with 1-6 selectable prices, and each output triggers an optically isolated relay wired to that machine's coin mechanism, sending a momentary or timed pulse just like a coin drop would. EMV and PCI compliant, with a free Nayax dashboard for remote sales tracking and price changes.

Accepts Visa, Mastercard, Discover, American Express, Apple Pay, Google Wallet, or a VendaCard. A one-time $30 Nayax setup fee applies, and wiring between the station and each machine is not included.

Professional install recommended. Wires to multiple machines or a dedicated circuit — most operators use a licensed electrician.

Inquiry

How it works

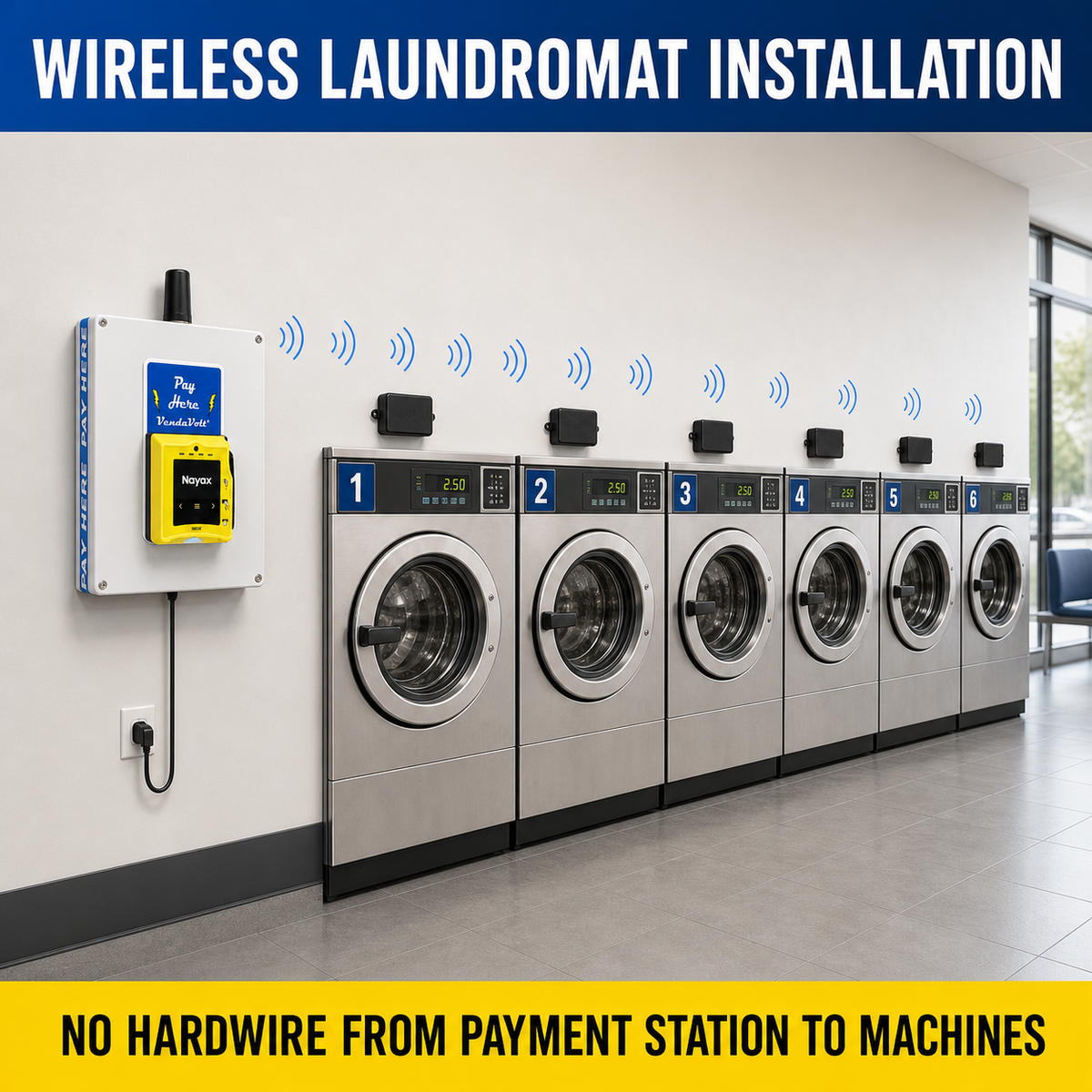

01. Install

Wire into your existing machine, outlet, or coin mechanism — most models splice in or run in parallel, so you keep the equipment that already works.

02. Customers pay

Credit card, debit card, mobile wallet, or the Clear Token phone app, depending on the model — no coins or cash box to manage.

03. Equipment runs

A vend pulse or timed cycle activates your machine automatically, the same way a coin drop would — no attendant required.

Product Details

Specifications
Machine Capacity 1 to 6 coin-operated machines
Relay Rating 5 Amps per channel (6 channels)
Power Supply 12V, 3 Amp, 100-265V AC input
Pulse Output 100ms momentary pulse, or timed cycle (1-30+ seconds)
Certification EMV & PCI compliant
Payment Terminal Nayax Vpos Touch, FCC ID R17ME910G1WW
What's in the Box

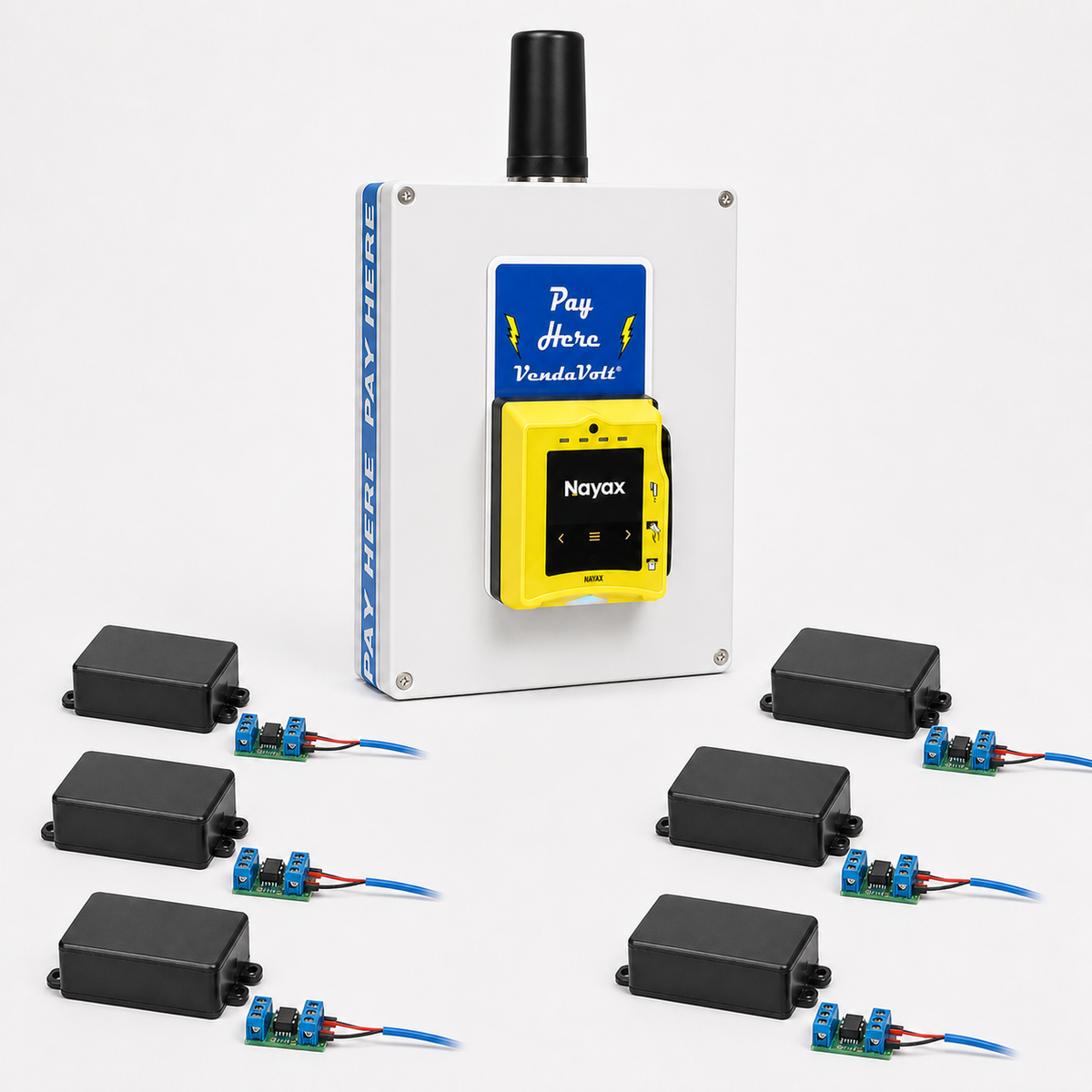

  • Nayax VPOS combination modem and touch smart reader (magnetic swipe, RFID, tap & go)
  • Magnetic mount antenna, 3M cable, SMA connector
  • Pulse mode harness for 6 momentary pulse outputs on a terminal block
  • 12V 3-amp power supply (100-265V AC)
  • VendaCard RFID pass card with $500 balance (auto-refreshes monthly)
  • Six optically isolated relays, one per channel
Compatibility
  • 1 to 6 coin-operated washers, dryers, or similar machines
  • Car washes and vacuum equipment
  • Coin slide/insert laundromats
  • Token or coin-timer pickleball and tennis court lighting
  • Visa, Mastercard, Discover, American Express
  • Apple Pay, Google Wallet, and VendaCard
