Model 2004N

SKU: 942004-001
$1,275.00 USD
Shipping calculated at checkout.
In stock: 11
Description

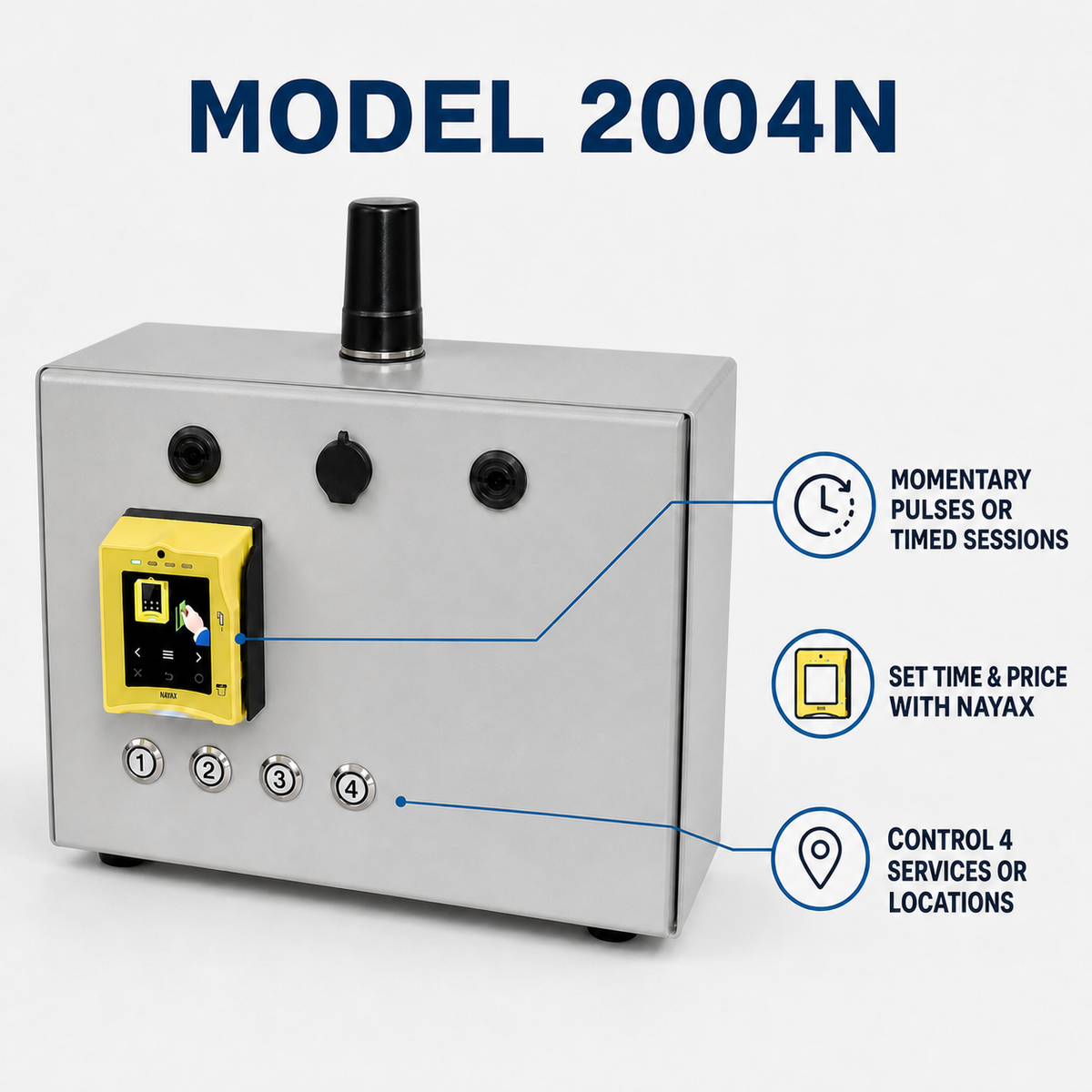

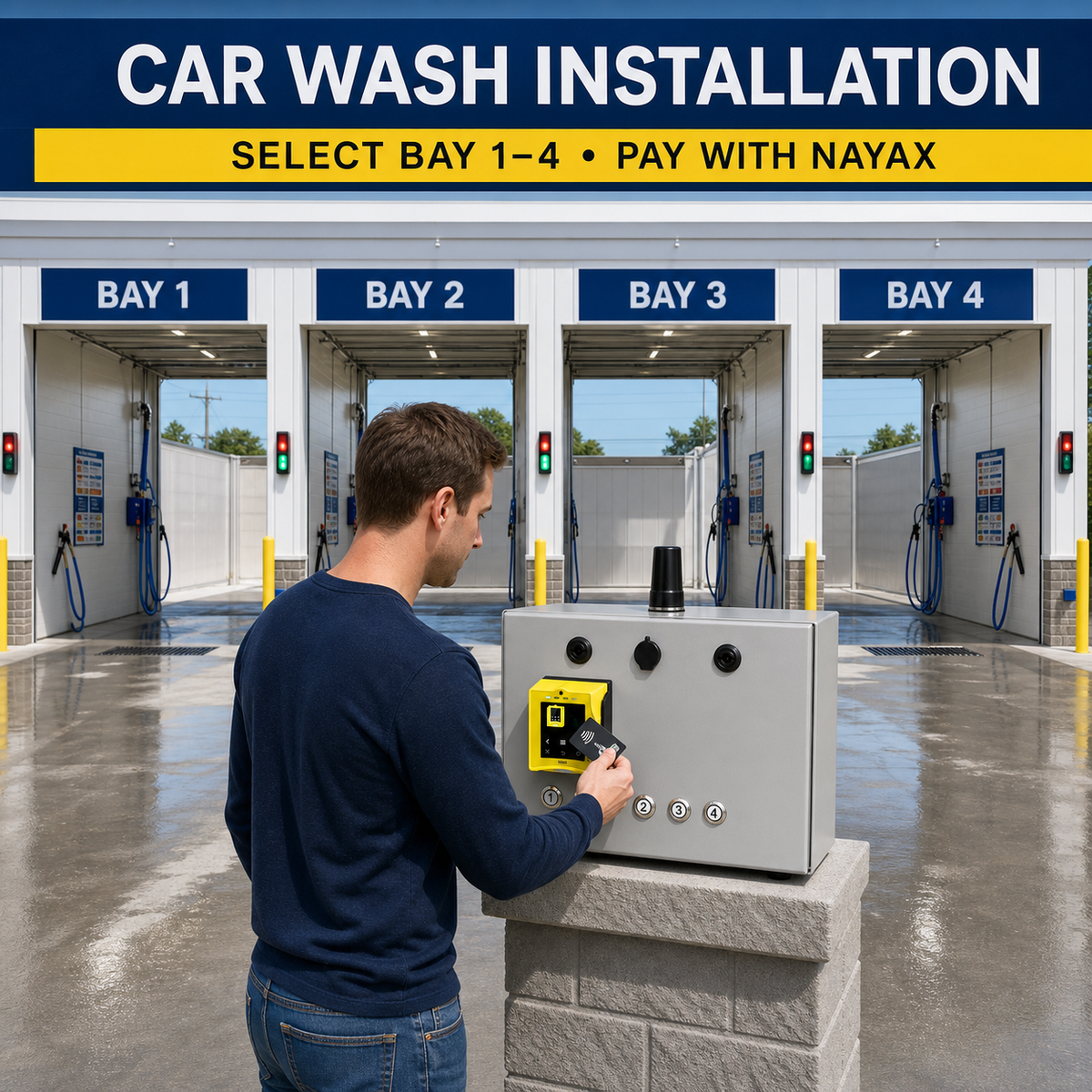

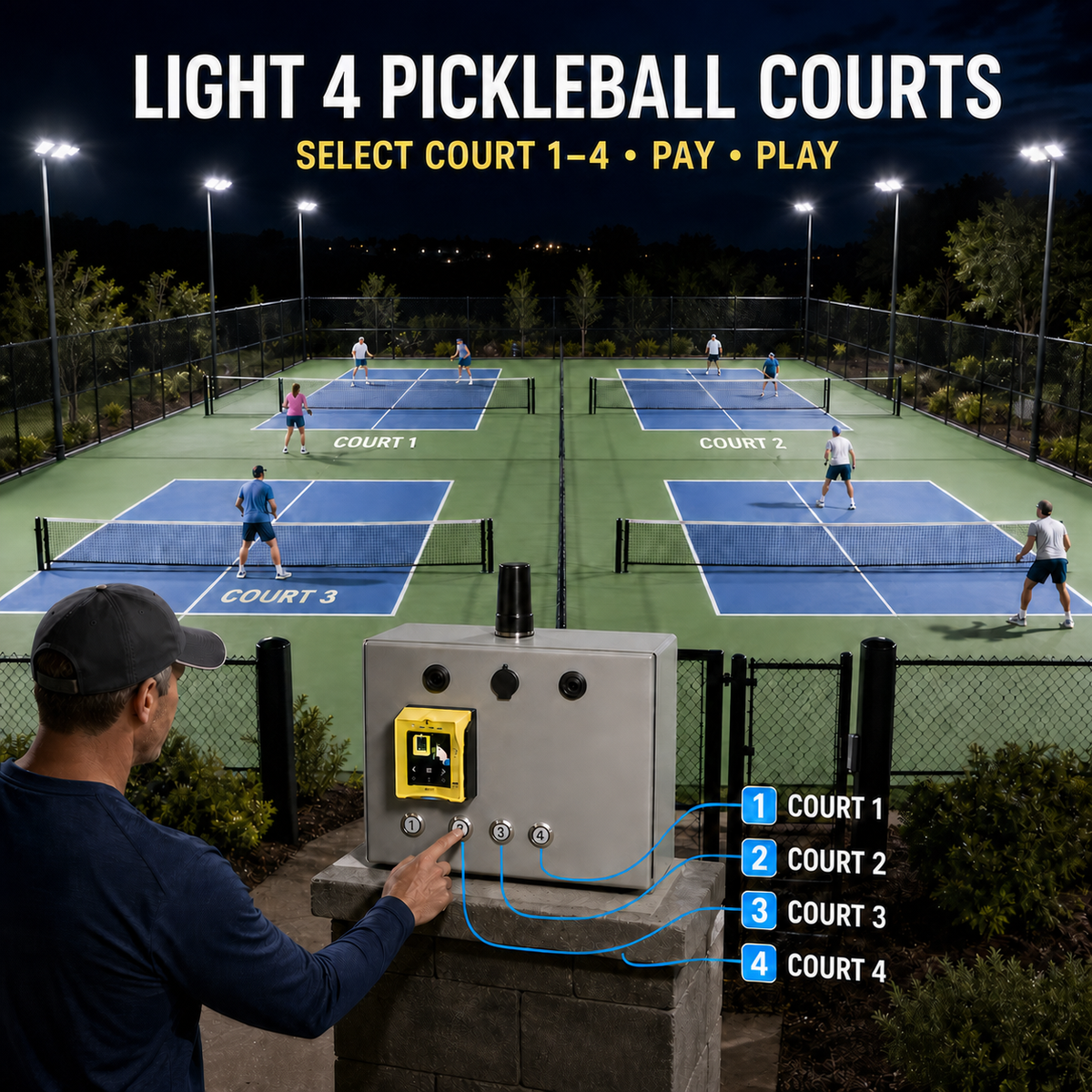

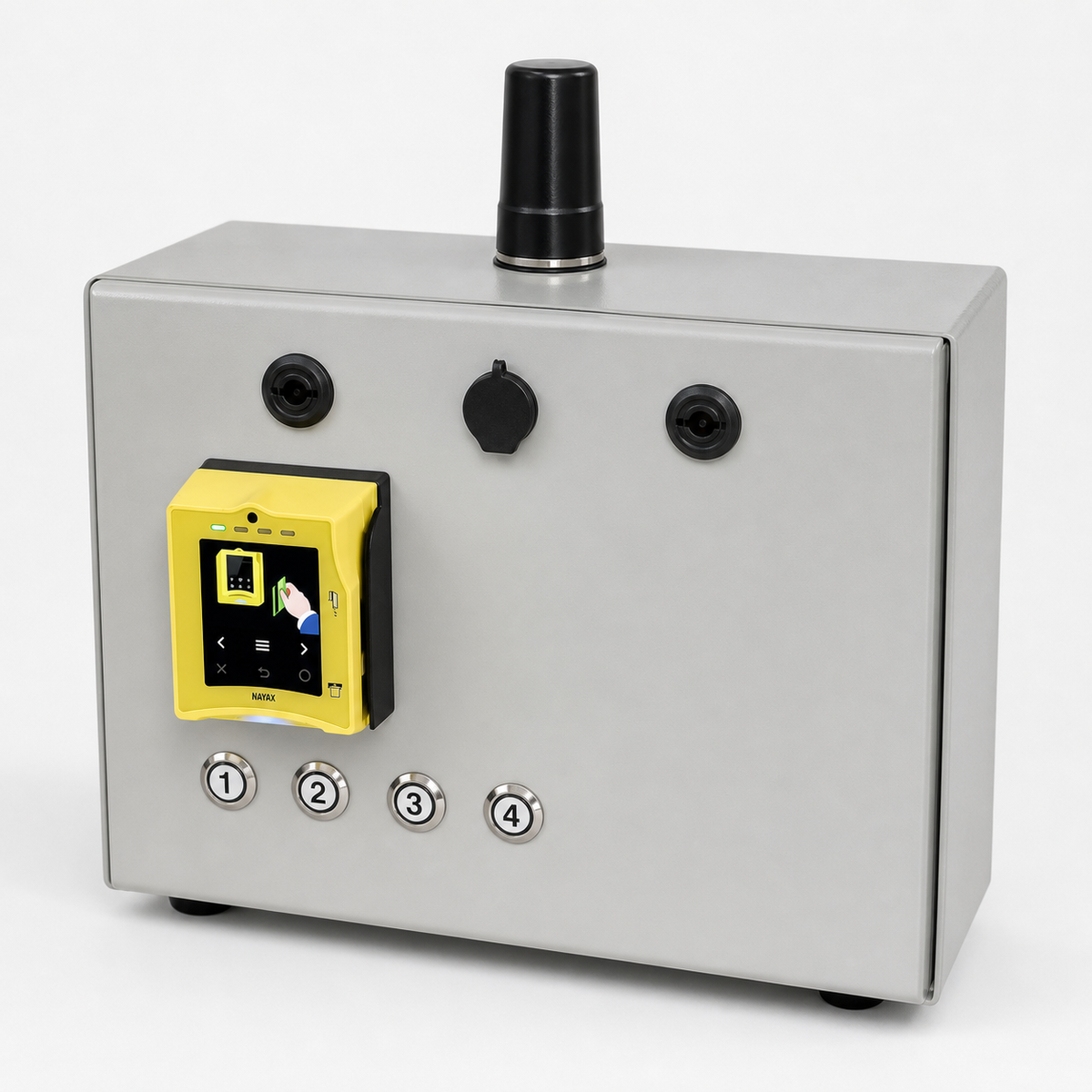

The Model 2004/2008 cashless timer payment station lets customers pay for momentary pulses or timed sessions from 100ms up to 32 hours across up to 4 separate outputs from one central station. It's built for car wash bays, washers and dryers, pickleball or tennis court lighting, EV chargers, and similar coin-pulse equipment.

Each output can carry its own price, with up to 6 vend prices supported. Wiring runs on standard 2-conductor cable, or can go wireless with an optional 2.4GHz transmitter/receiver kit.

Customers pay with a credit or debit card, Apple Pay, or Google Wallet. EMV and PCI compliant, with a free Nayax dashboard for remote sales tracking and pricing changes. A one-time $30 Nayax setup fee applies.

Shipping outside the US? We ship to US-based freight-forwarder addresses, or contact us to arrange international delivery.

Our equipment and technical support are built around US electrical standards (voltage, plug types, and certifications) - we're unable to guarantee compatibility or provide support for international electrical systems.

Professional install recommended. Wires to multiple machines or a dedicated circuit — most operators use a licensed electrician.

How it works

01. Install

Wire into your existing machine, outlet, or coin mechanism — most models splice in or run in parallel, so you keep the equipment that already works.

02. Customers pay

Credit card, debit card, mobile wallet, or the Clear Token phone app, depending on the model — no coins or cash box to manage.

03. Equipment runs

A vend pulse or timed cycle activates your machine automatically, the same way a coin drop would — no attendant required.

Product Details

Specifications
Outputs Up to 8, each with an optically isolated SPST 10 Amp relay
Vend Time Range 100ms to 32 hours
Vend Prices Up to 6 selectable
Input Power 110-120V or 220-240V
Enclosure Waterproof fiberglass, 400mm x 300mm x 200mm (18" x 14" x 11")
Weight 25 lbs

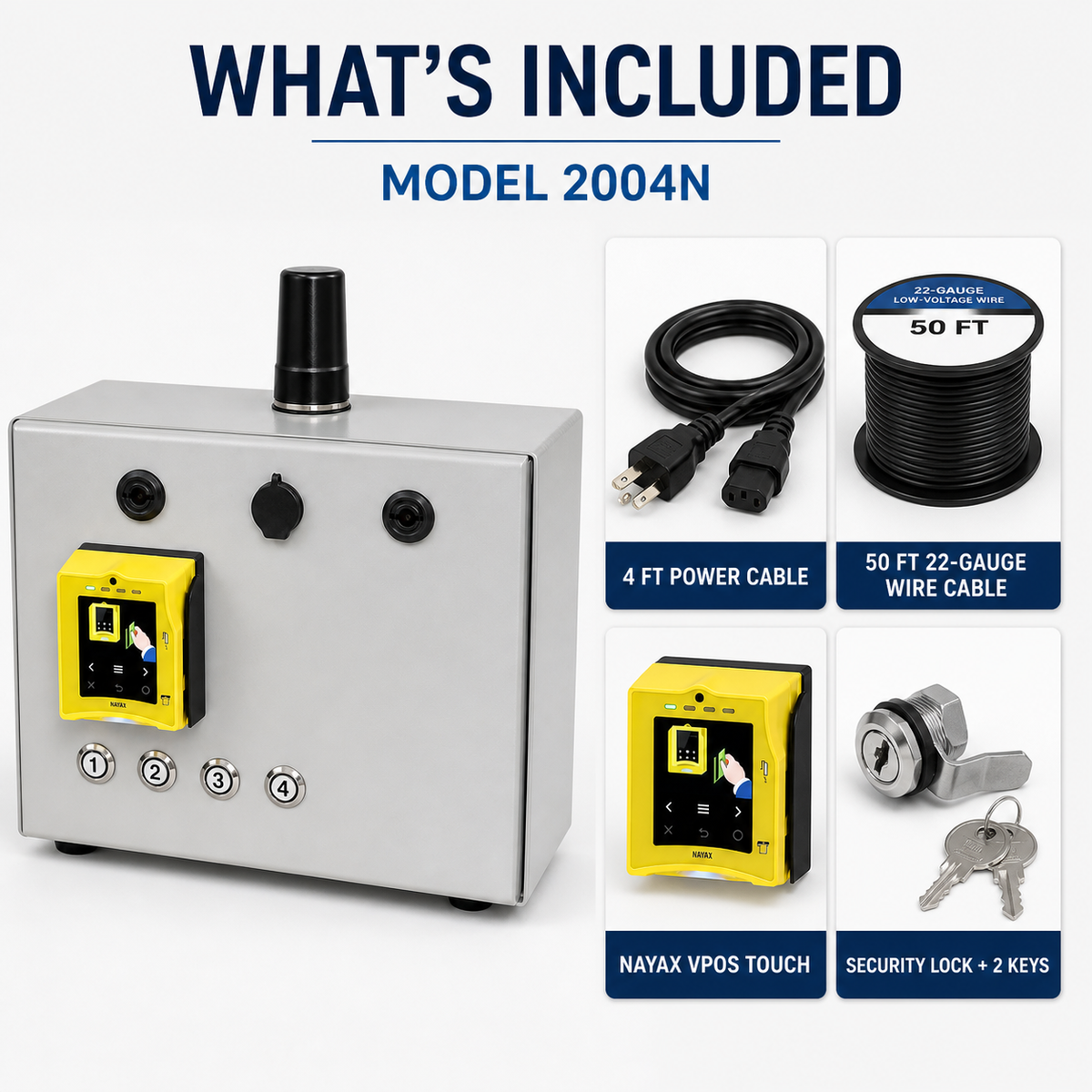

What's in the Box

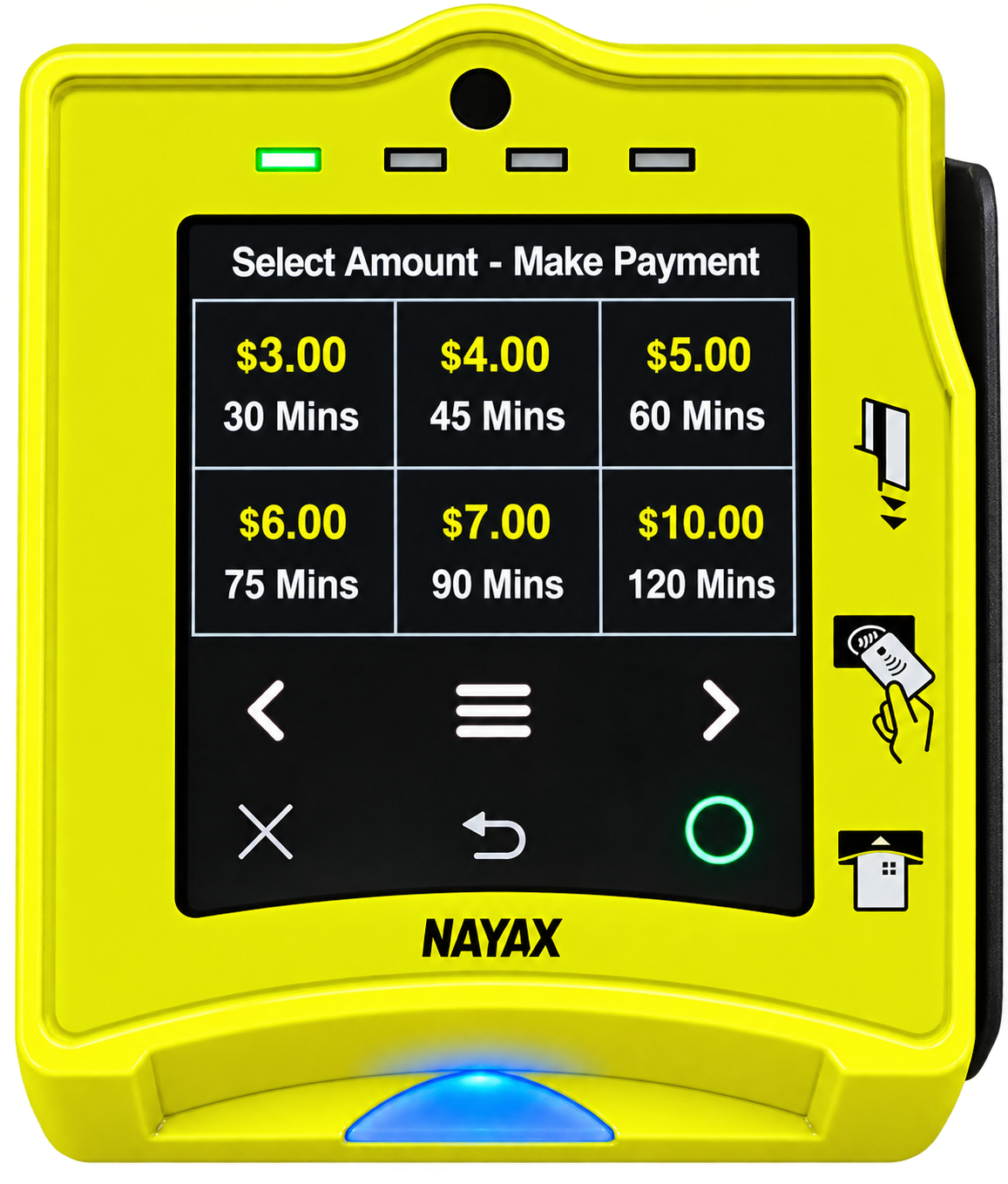

  • VPOS combination modem & touch smart reader with magnetic swipe, RFID, and tap & go (FCC ID: R17ME910G1WW)
  • 50 ft of 22-gauge 2-conductor stranded copper cable
  • Magnetic mount antenna, 3M cable
  • Main control board with 8 optically isolated SPST 10 Amp relays
  • Waterproof fiberglass cabinet with 6 ft input power cord
  • One VendaCard RFID pass card
Compatibility
  • Car wash bays
  • Washers and dryers
  • Pickleball and tennis court lighting
  • EV chargers
  • Visa, Mastercard, Discover, American Express, Apple Pay, Google Wallet
