Model 2004NW

SKU: 942004-000
$1,475.00 USD
Shipping calculated at checkout.
In stock: 11
Description

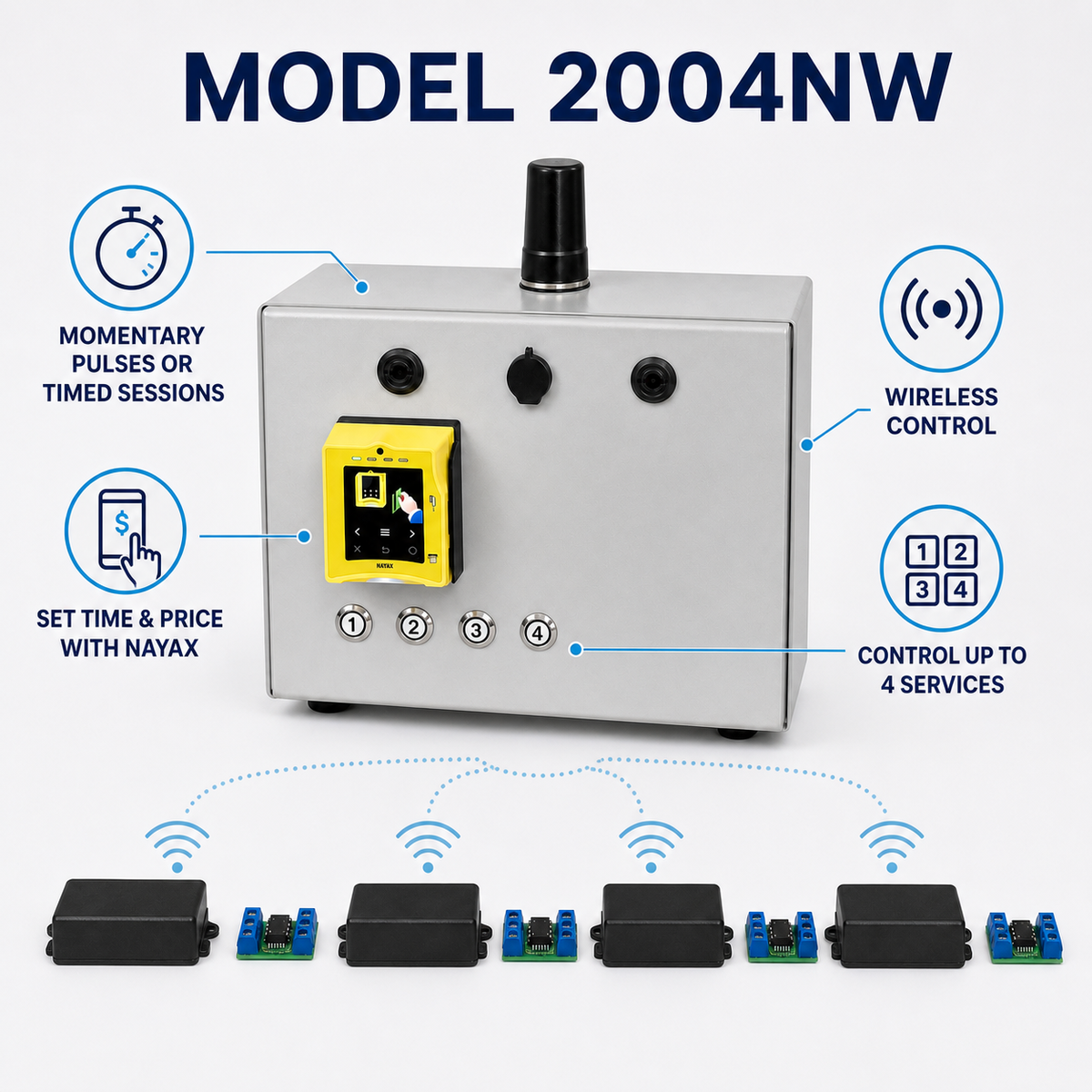

The Model 2004 Nayax cashless timer payment station adds credit card payment to court lighting, EV chargers, and other coin/pulse-operated equipment through two onboard timers. A 24-hour programmable timer sets daily on/off hours (for example, locking out use after dark), and powers a second dip-switch timer that accumulates Nayax payment pulses and runs the vend cycle from 100ms up to 32 hours.

The Nayax VPOS Touch reader accepts chip, swipe, and contactless "tap & go" payment, is EMV and PCI compliant, and is configured for up to 6 vend prices. A free Nayax dashboard lets you track sales and update pricing remotely.

A one-time $30 Nayax setup fee applies. UPS shipping is included in the listed price.

Shipping outside the US? We ship to US-based freight-forwarder addresses, or contact us to arrange international delivery.

Our equipment and technical support are built around US electrical standards (voltage, plug types, and certifications) - we're unable to guarantee compatibility or provide support for international electrical systems.

Professional install recommended. Wires to multiple machines or a dedicated circuit — most operators use a licensed electrician.

How it works

01. Install

Wire into your existing machine, outlet, or coin mechanism — most models splice in or run in parallel, so you keep the equipment that already works.

02. Customers pay

Credit card, debit card, mobile wallet, or the Clear Token phone app, depending on the model — no coins or cash box to manage.

03. Equipment runs

A vend pulse or timed cycle activates your machine automatically, the same way a coin drop would — no attendant required.

Product Details

Specifications
24-Hour Timer Control Voltage 110V AC input, 240V AC output
24-Hour Timer Contact Capacity 16A / 8A at 240V AC
24-Hour Timer Range 1 minute to 168 hours, 16 programs per day/week
24-Hour Timer Battery Backup 1.2V/40mA rechargeable, 60-day power-failure memory
Operating Temperature -10C to +40C
Vend Timer Relay 10 Amp contacts, rated up to 30 amps / 2HP at 240VAC
Vend Timer Accuracy 0.5% repeat accuracy
Vend Timer Pulse Accumulation 1 to 255 push button pulses
Enclosure Waterproof fiberglass cabinet
Power Cord 6 ft, 110-120V or 220-240V
Dimensions 400mm x 300mm x 200mm (18 in x 14 in x 11 in)
Weight 25 lbs

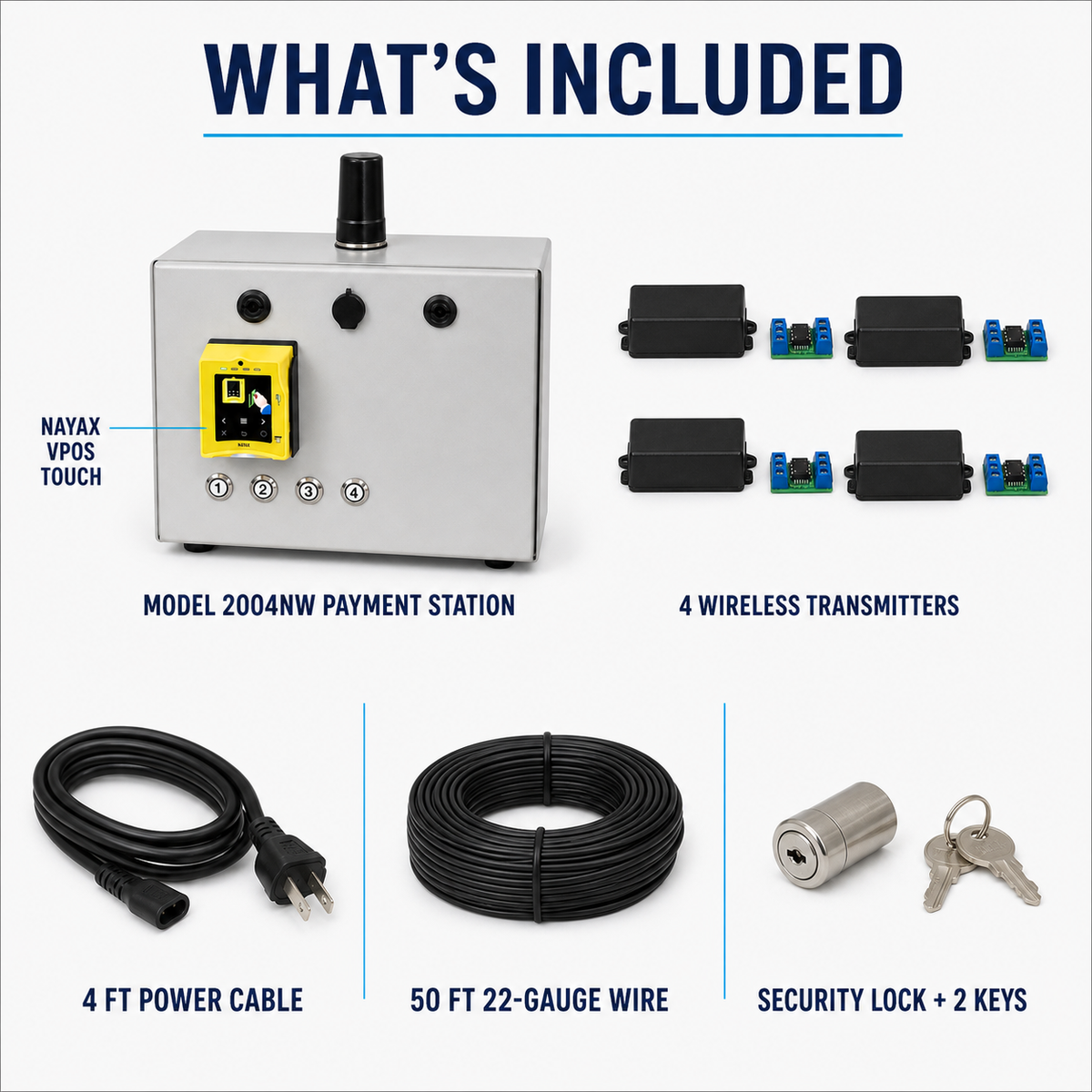

What's in the Box
  • Nayax VPOS Combination Modem & Touch Smart Reader (magnetic swipe, RFID, tap & go)
  • 50 ft of 22-gauge 2-conductor security alarm wire cable
  • Magnetic mount antenna with 3M cable (SMA connector)
  • Main control board with optically isolated 10A relays
  • Waterproof fiberglass cabinet with 6 ft input power cord
  • One VendaCard RFID pass card (additional cards $3 each)

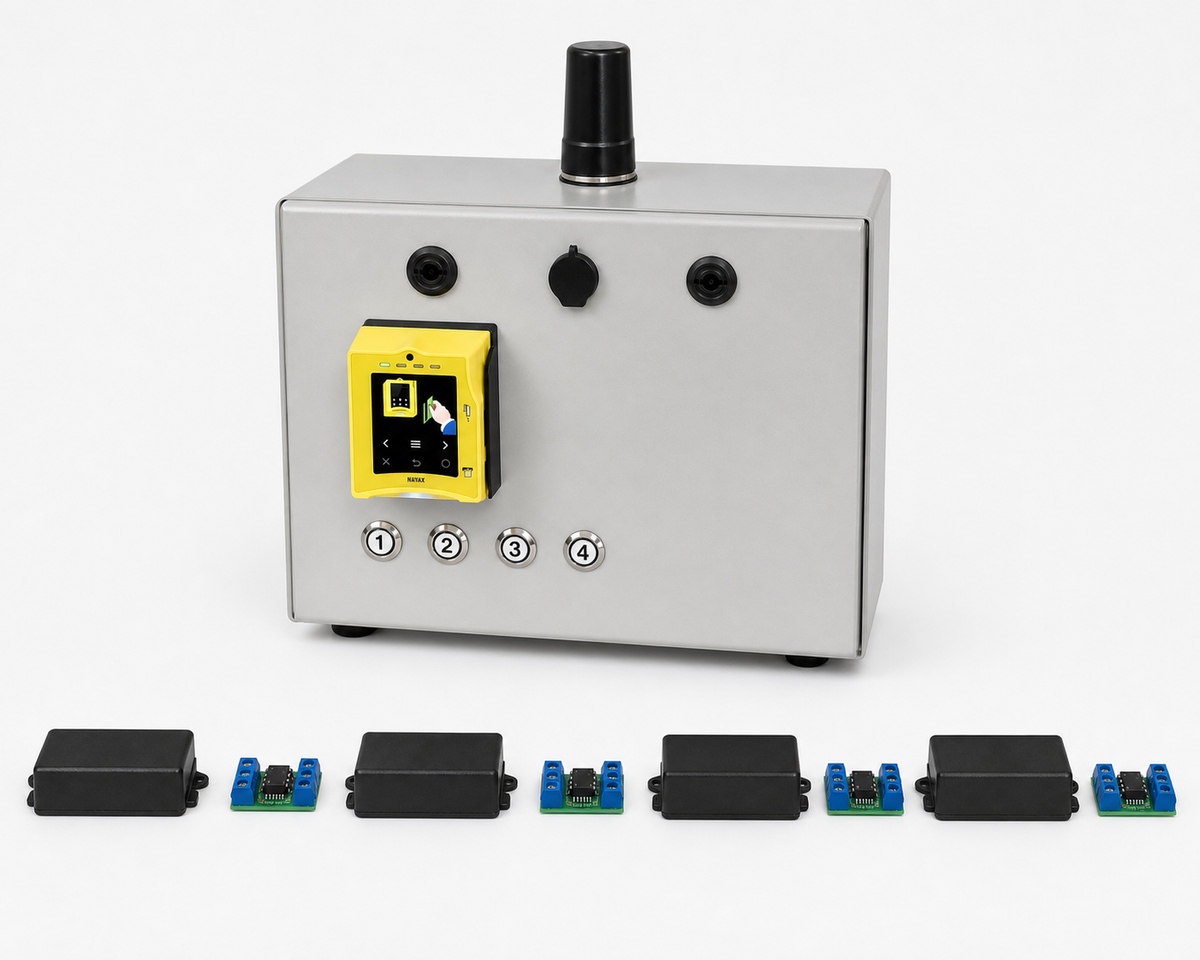

  • Optional: four 2.4GHz transmitters/receivers in lieu of hardwire cable (+$400)
  • Optional: quarter coin acceptor (+$100)
  • Optional: dollar bill acceptor with 8 push button selections (+$350)
Compatibility
  • Tennis and pickleball court lighting
  • Coin-operated washers, dryers, and car wash bays
  • RV outlet electricity
  • Electric vehicle chargers
  • Visa, Mastercard, and other Nayax-supported payment methods
