Model 2008N

SKU: 945008-001A
$2,495.00 USD
Shipping calculated at checkout.
In stock: 16
Description

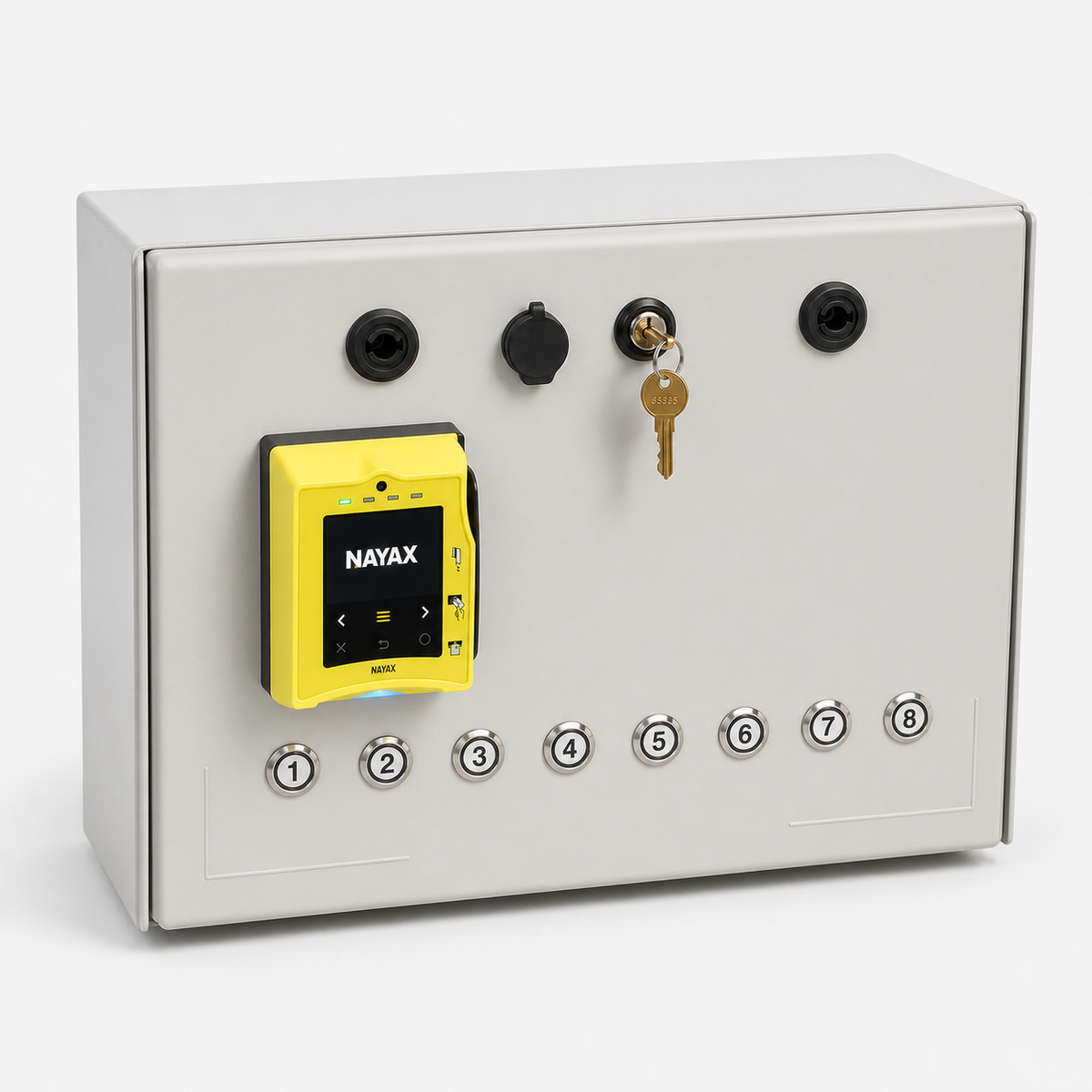

The Model 2008 Nayax cashless timer payment station connects to 1-8 coin-operated machines washer/dryers, car wash bays, court lighting circuits, EV chargers, or water vending (1 gallon and up) wired or wirelessly over 2.4GHz, with a range up to 100 feet and support for equipment up to 260V.

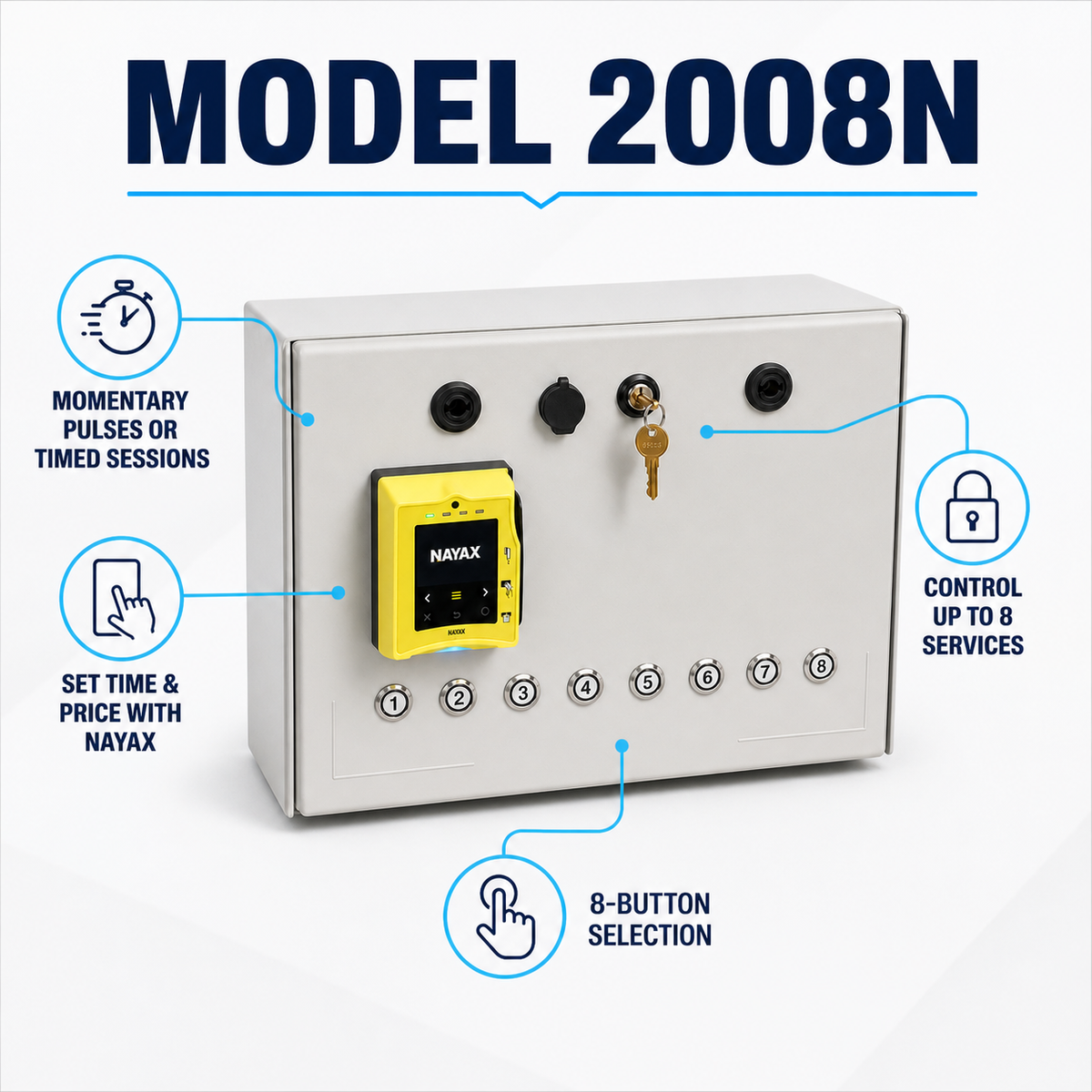

The Nayax keypad is configured with up to 6 time/price combinations (for example, $3 for 45 minutes or $6 for 70 minutes at a laundromat). Once a customer pays, the price is sent to the XCP control board, which lights up the matching push button among the 1-8 outputs. Accepts Visa, Mastercard, Google Wallet, and Apple Pay, and is EMV/PCI compliant with a free Nayax dashboard for remote sales tracking and pricing changes.

A one-time $30 Nayax setup fee applies. An optional timer box for non-coin machines is available for $175 each.

Shipping outside the US? We ship to US-based freight-forwarder addresses, or contact us to arrange international delivery.

Our equipment and technical support are built around US electrical standards (voltage, plug types, and certifications) - we're unable to guarantee compatibility or provide support for international electrical systems.

Professional install recommended. Wires to multiple machines or a dedicated circuit — most operators use a licensed electrician.

How it works

01. Install

Wire into your existing machine, outlet, or coin mechanism — most models splice in or run in parallel, so you keep the equipment that already works.

02. Customers pay

Credit card, debit card, mobile wallet, or the Clear Token phone app, depending on the model — no coins or cash box to manage.

03. Equipment runs

A vend pulse or timed cycle activates your machine automatically, the same way a coin drop would — no attendant required.

Product Details

Specifications
Outputs 1 to 8 selectable, wired or 2.4GHz wireless (up to 100 ft range)
Vend Time Range 100ms up to 32 hours
Relay Rating 10 Amp optically isolated SPST dry contact relays (8 channels)
Enclosure Waterproof fiberglass cabinet
Power Cord 6 ft, 110-120V or 220-240V
Dimensions 400mm x 300mm x 200mm (18 in x 14 in x 11 in)
Weight 26 lbs
What's in the Box
  • Nayax VPOS Combination Modem & Touch Smart Reader (magnetic swipe, RFID, tap & go)
  • Magnetic mount antenna with 3M cable (SMA connector)
  • Main control board with 8 optically isolated 10A relays
  • Waterproof fiberglass cabinet with 6 ft input power cord
  • One VendaCard RFID pass card (additional cards $3 each)
  • Optional: eight 2.4GHz transmitters/receivers in lieu of hardwire cable (+$800)
  • Optional: quarter coin acceptor (+$100)
  • Optional: dollar bill acceptor with 8 push button selections (+$350)
  • Optional: timer box for non-coin machines (+$175 each)
Compatibility
  • 1-8 coin-operated washers and dryers

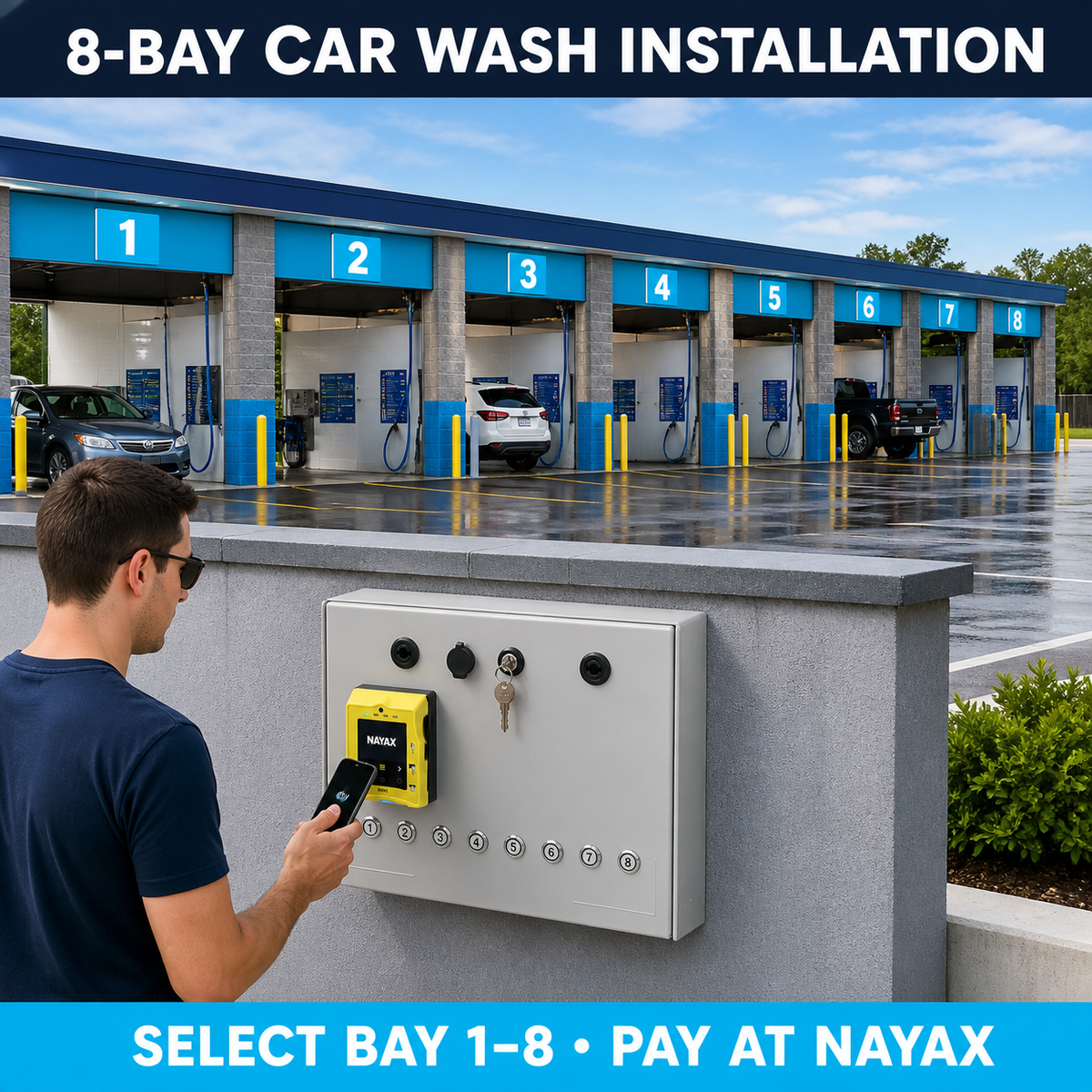

  • Car wash bays

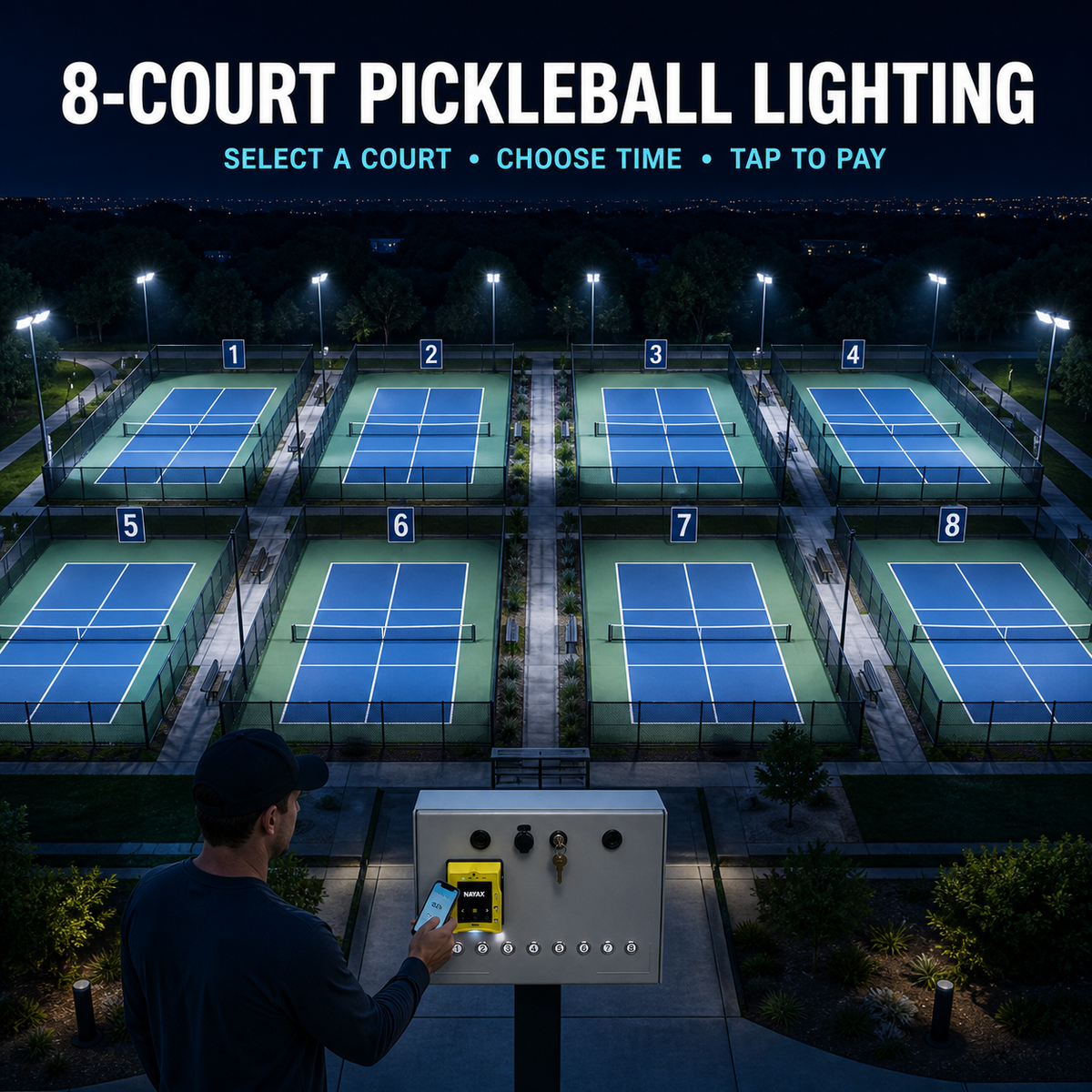

  • Pickleball and tennis court lighting
  • Electric vehicle chargers
  • Water vending equipment
  • Visa, Mastercard, Google Wallet, and Apple Pay
