Model 2001N EV Charging Station

SKU: 900513-191
$2,895.00 USD
Shipping calculated at checkout.
In stock
Description

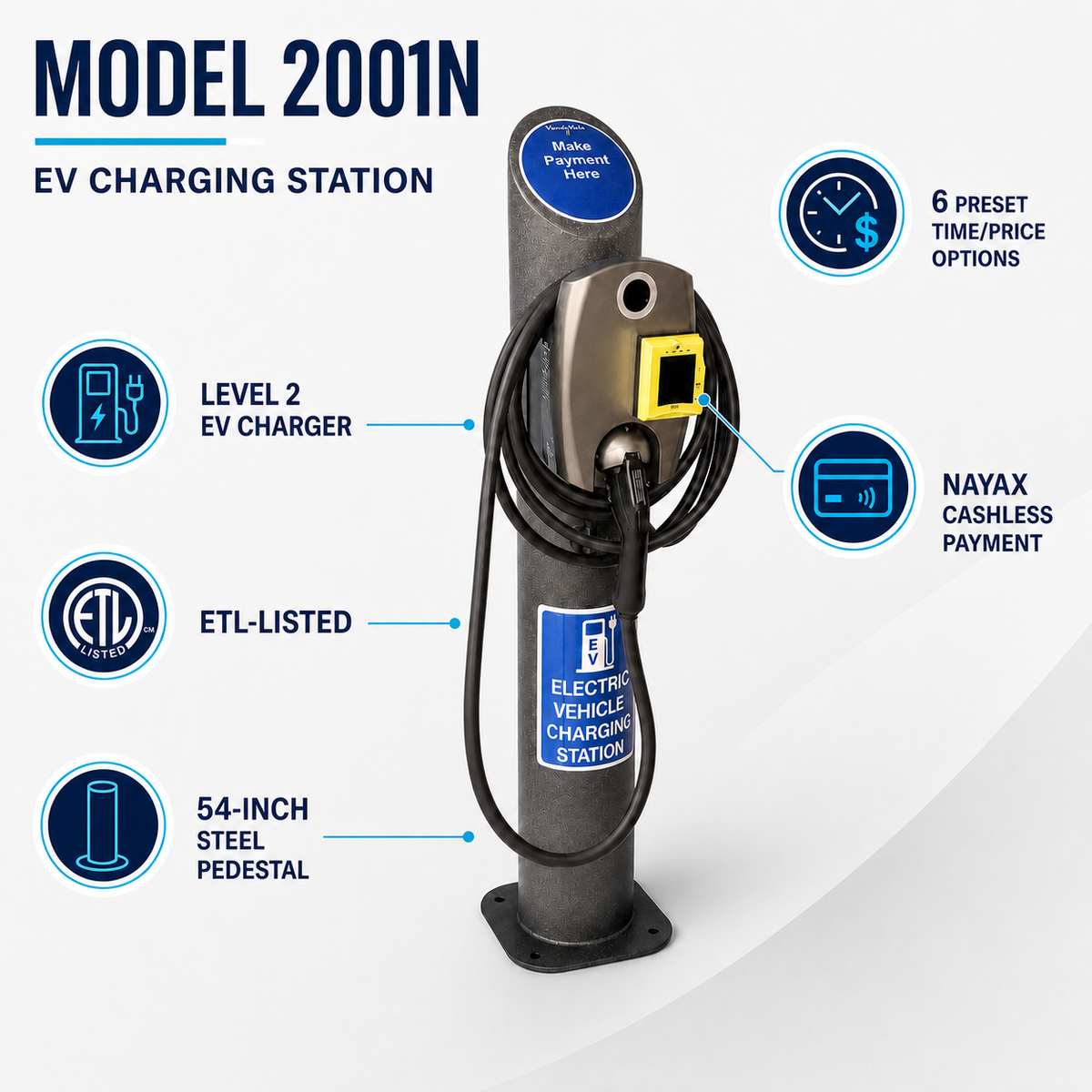

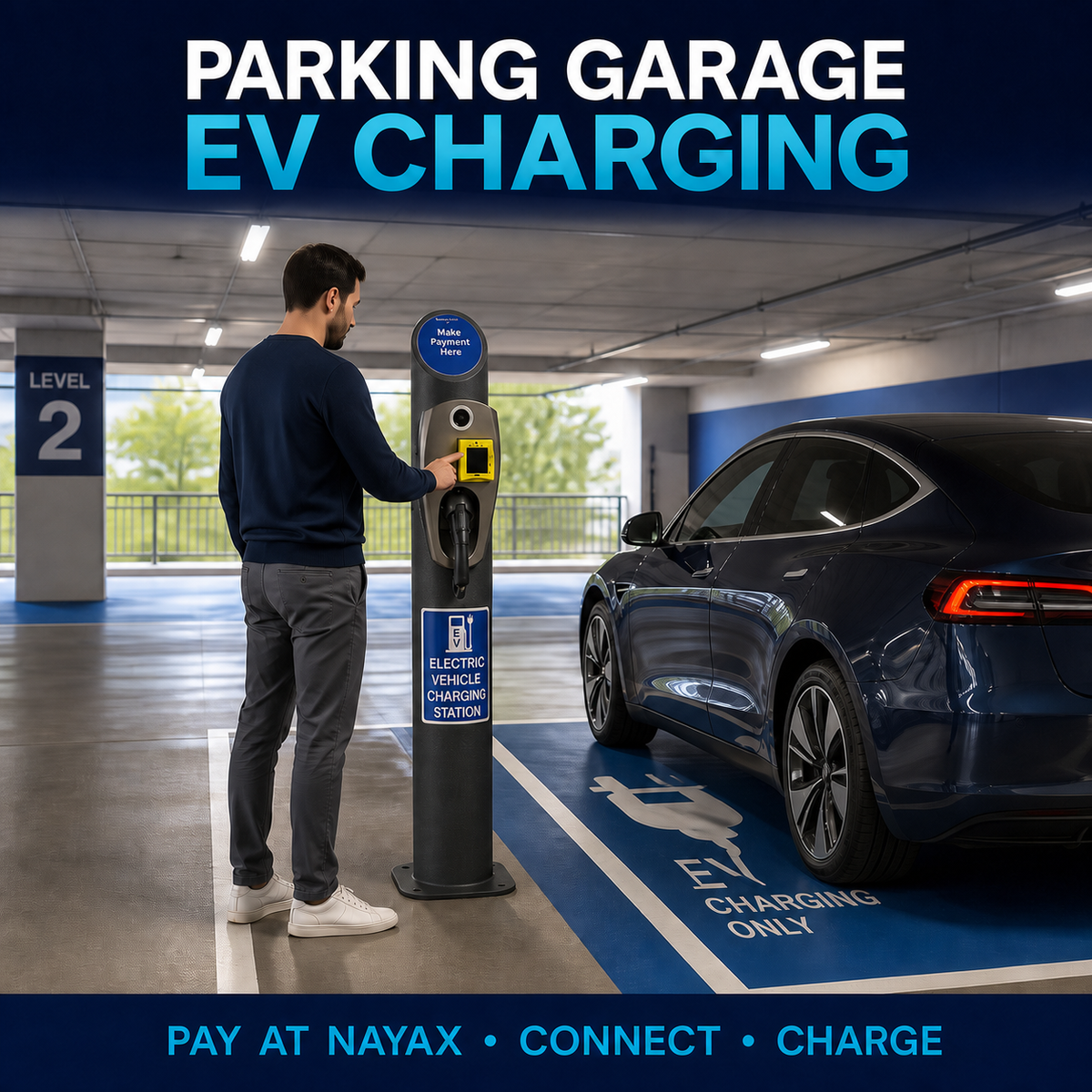

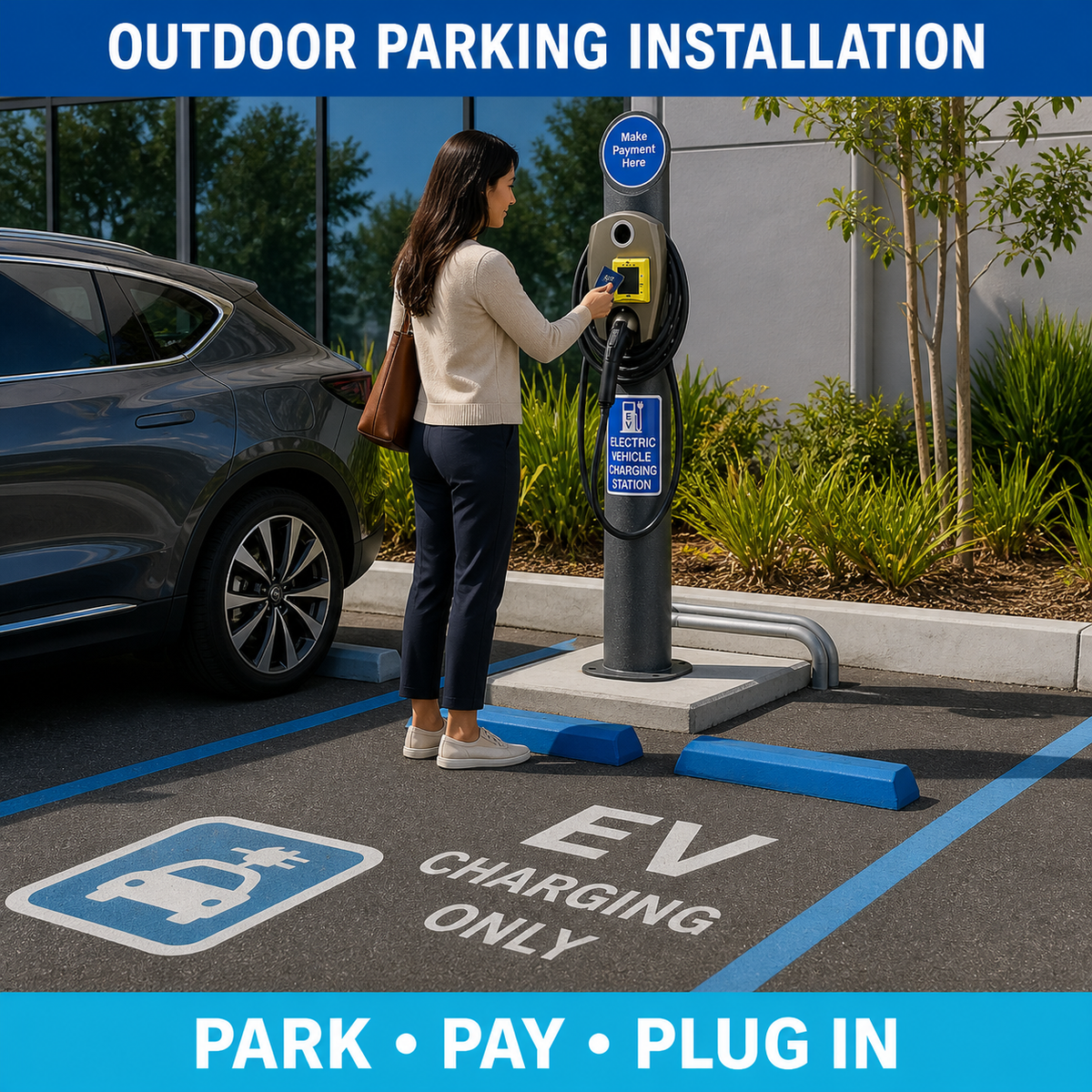

This Nayax-powered XCP charger is a 40-amp, Level 2 EV charger built into a 54-inch pedestal bollard for parking areas and outdoor installations. It's ETL-listed, delivers up to 9.68kW (29-36 miles of range per hour), and includes 8-layer protection against over-voltage, over-current, overheating, grounding faults, and lightning.

Drivers select from 6 preset time-and-price combinations on the Nayax Vpos Touch screen before charging starts. It accepts Visa, Mastercard, Discover, American Express, Apple Pay, and Google Wallet, and a free Nayax dashboard lets you track sales and adjust pricing remotely.

Qualified customers can arrange free installation under a shared 50/50 vending agreement. An optional key switch lets staff use the charger without payment (a $50.00 one-time option per charger, includes 2 keys; additional keys $5.00 each). Backed by a 1-year warranty.

Product Details

Specifications
Amperage 40 Amps (6-40A adjustable, up to 9.68kW)
Voltage 208-240 VAC
Charging Speed 29-36 miles of range per hour
Charger Output Plug J1772, 25 ft cable
Electrical Connector NEMA 14-50P male, 12 in 8-gauge power cord
Circuit Breaker 50 Amps
Protection 8-layer (over-voltage, under-voltage, leakage, overheating, over-current, grounding, overcharging, lightning)
Certification ETL Listed

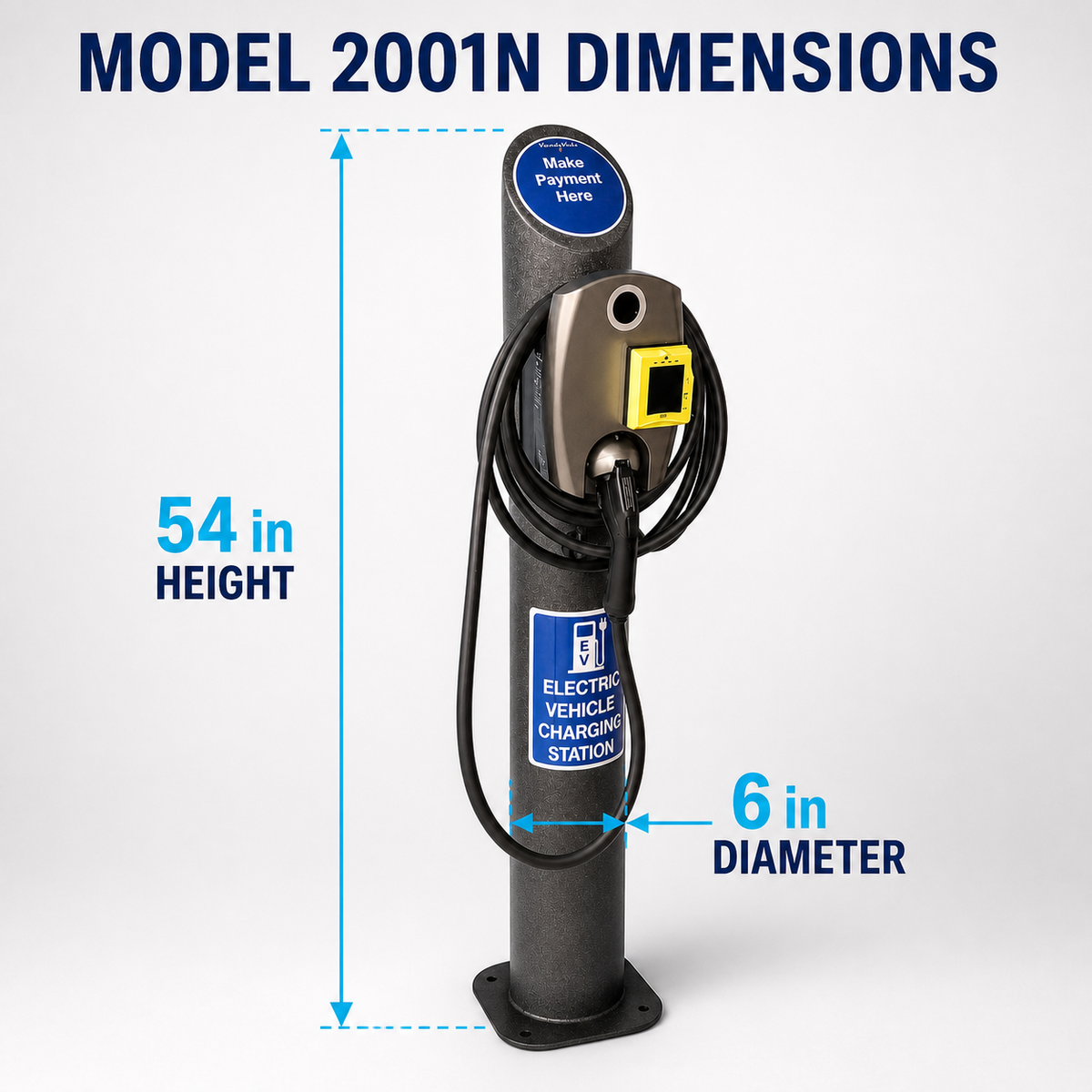

Mounting 54 in pedestal with 1/4 in thick steel bollard base
Weight 61 lbs
Vehicle Compatibility All plug-in EVs sold in North America (Tesla requires adapter)

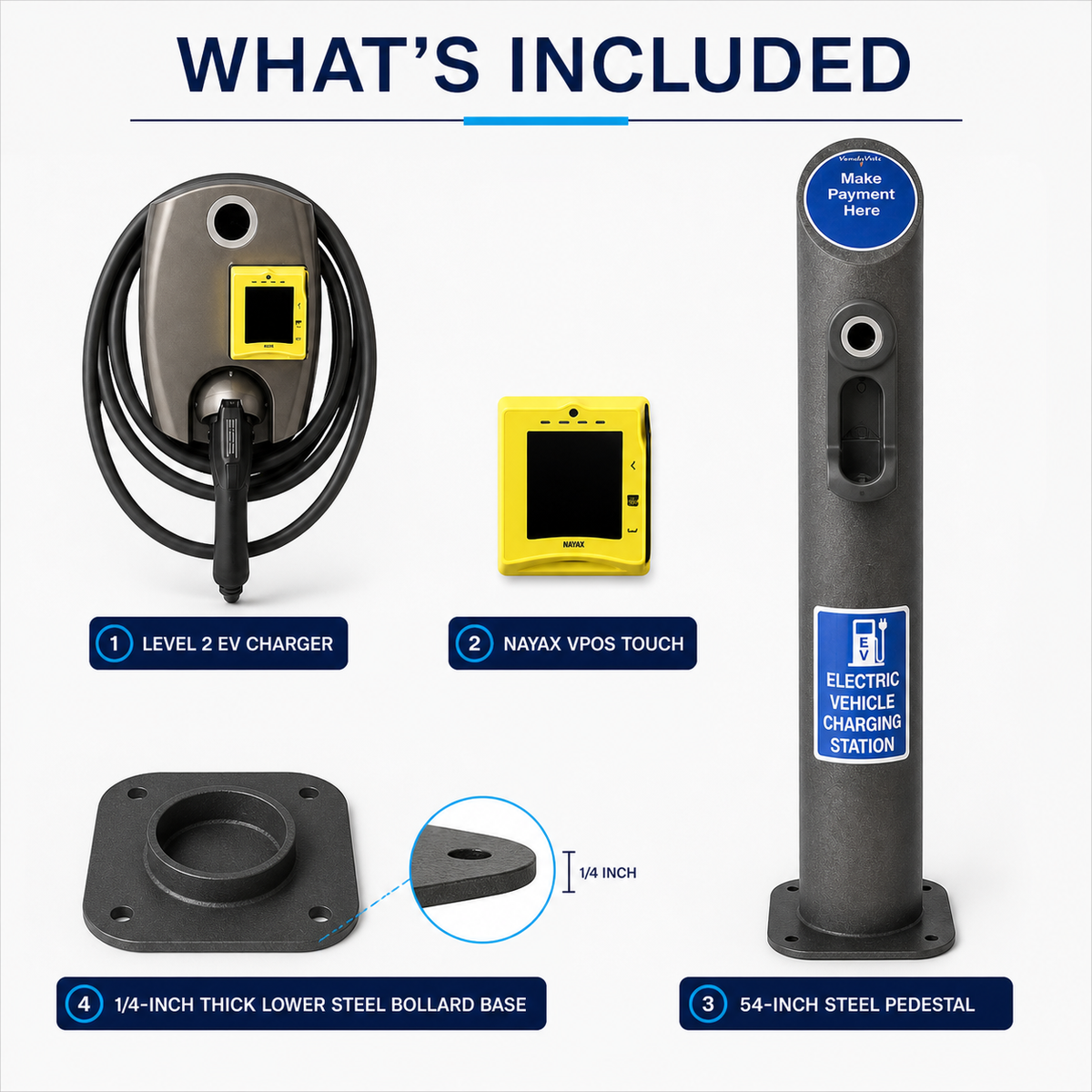

What's in the Box
  • Nayax Vpos Touch cashless payment terminal
  • 54 inch pedestal bollard with steel base
Compatibility
  • All plug-in vehicles sold in North America (Tesla requires optional adapter)
  • Visa, Mastercard, Discover, American Express, Apple Pay, and Google Wallet
  • Optional single or dual bollard station configuration
