Model 2002N EV Charging Station

SKU: 900513-192
$3,795.00 USD
Shipping calculated at checkout.
In stock: 5
Description

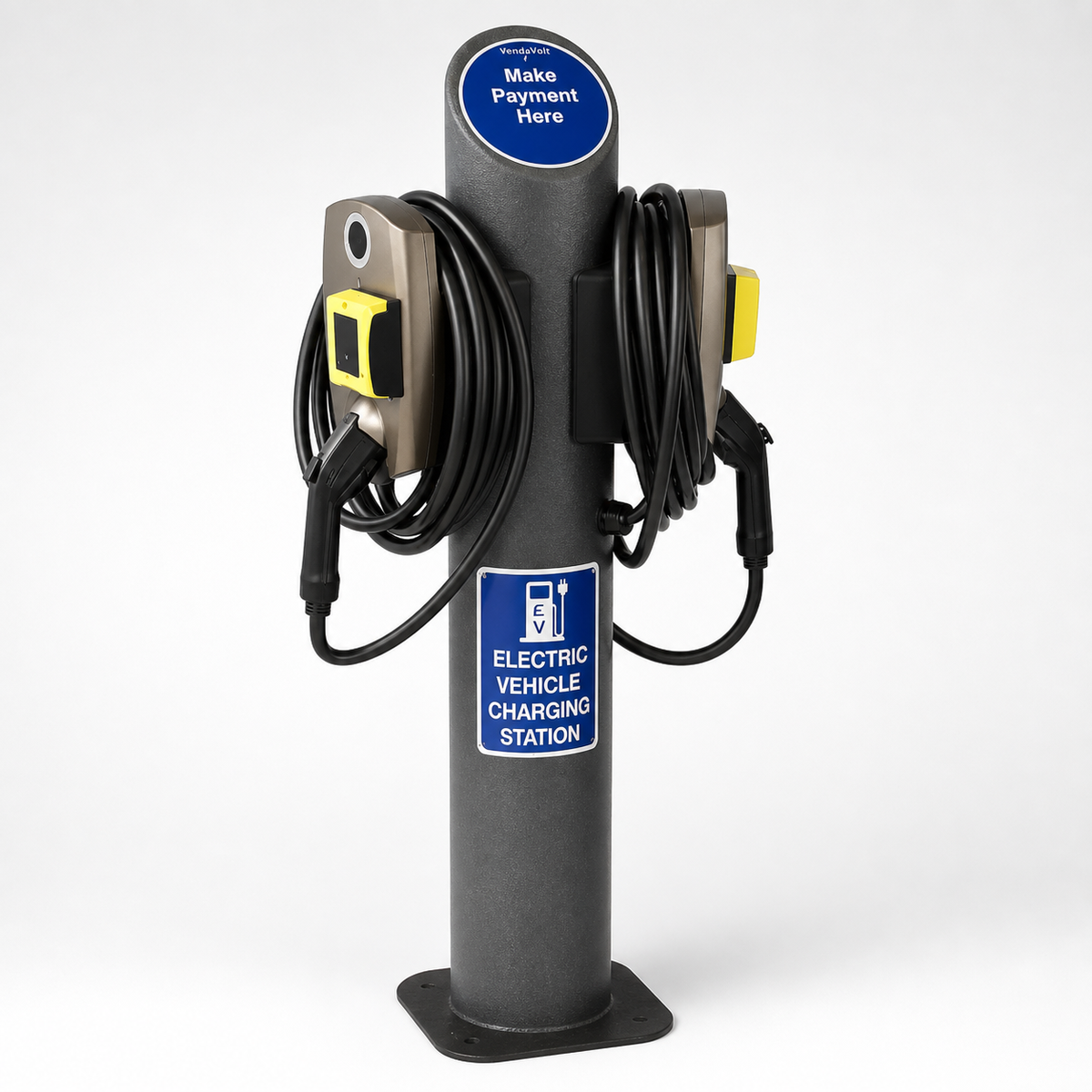

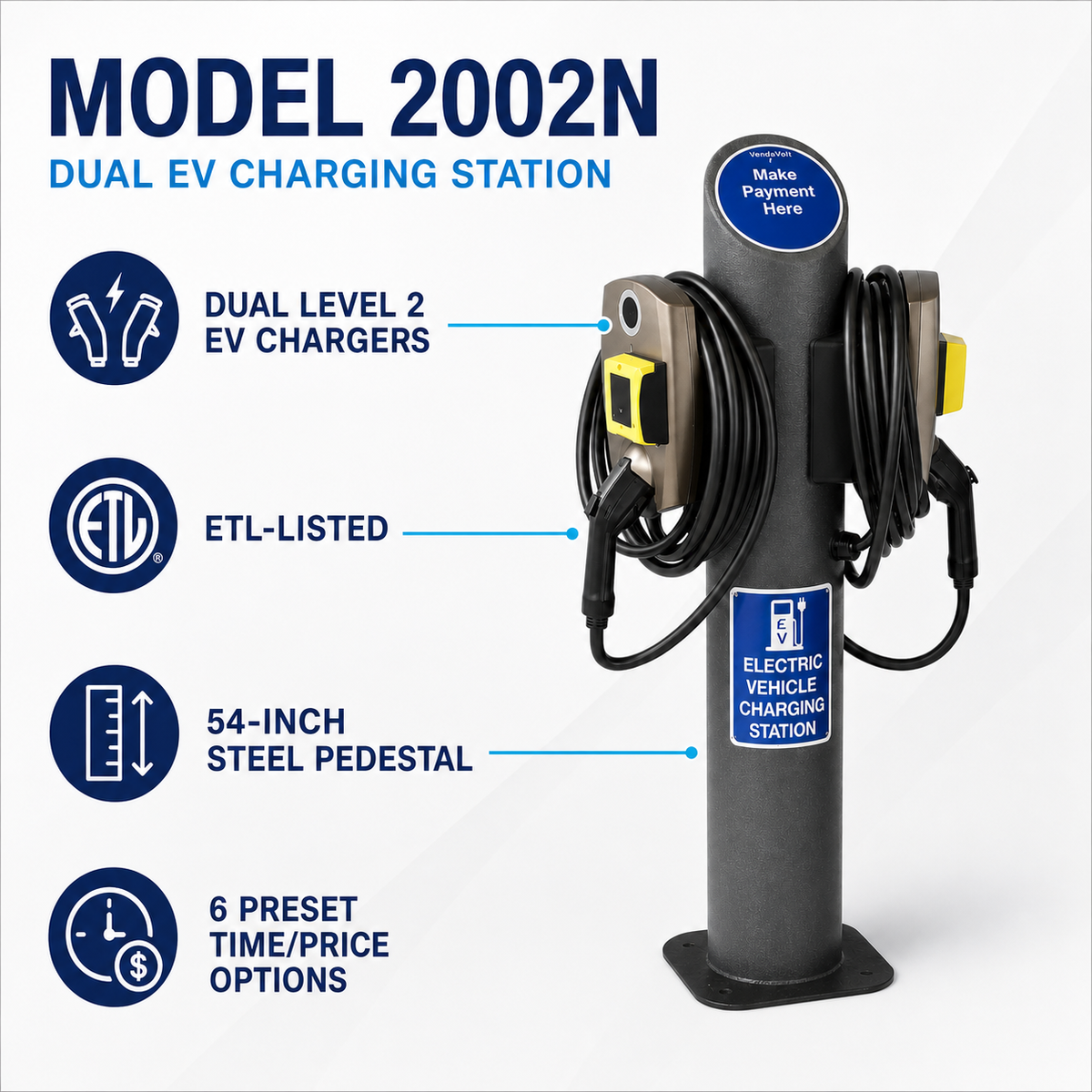

The Model 2002 is a dual Level 2 EV charging station mounted on a 54-inch bollard pole, built around the Nayax Vpos Touch cashless payment terminal. It delivers up to 40 amps (9.6-11kW) through a J1772 connector with a 25-foot cable, compatible with all plug-in EVs sold in North America (Tesla requires an adapter).

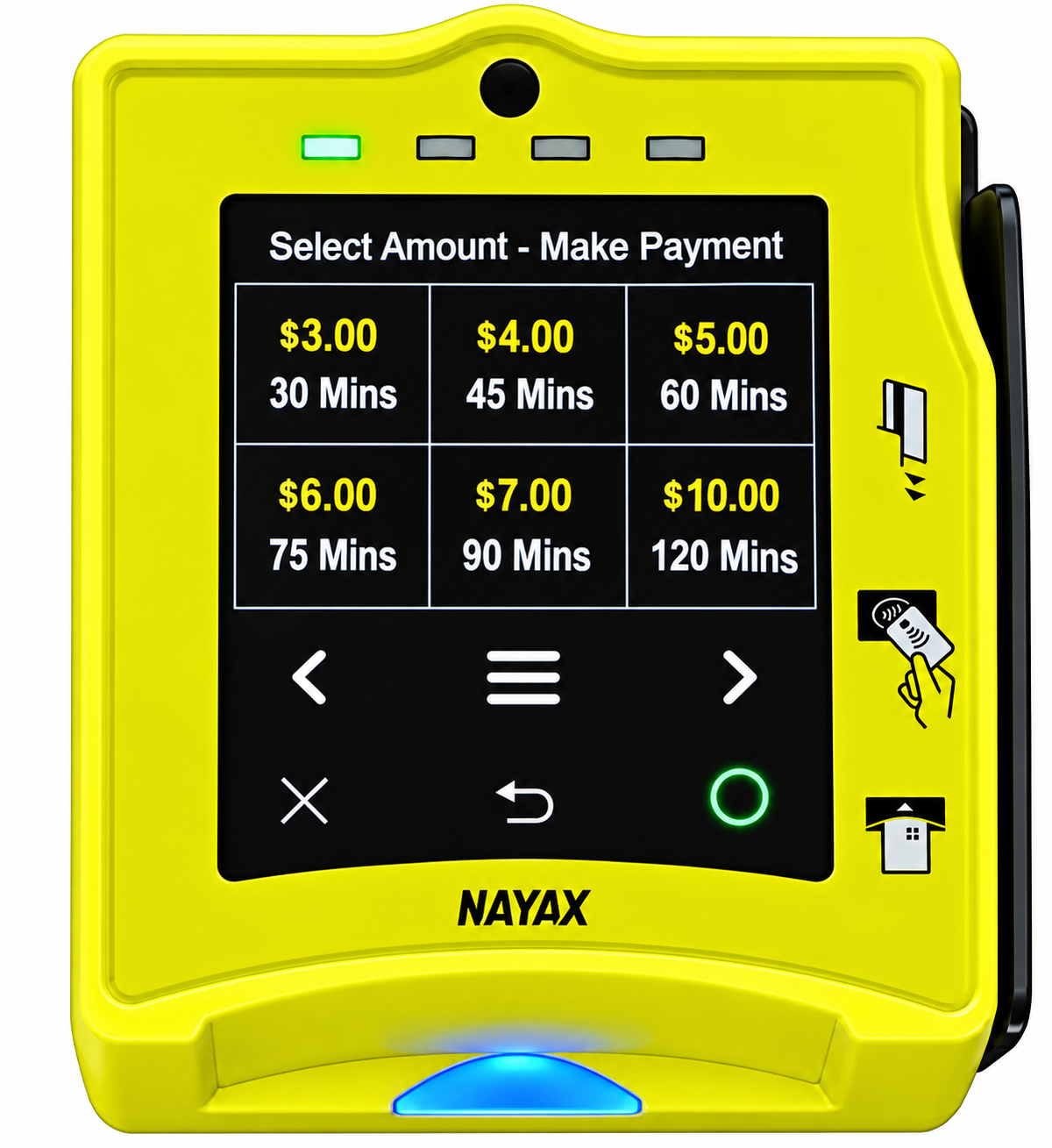

Customers select from six preset time-and-price combinations on the touchscreen before charging starts. It's ETL-listed for safety, available hardwired or plug-in via NEMA 14-50, and rated for indoor or outdoor use.

Accepts Visa, Mastercard, Discover, American Express, Apple Pay, and Google Wallet. Backed by a 1-year warranty.

Shipping outside the US? We ship to US-based freight-forwarder addresses, or contact us to arrange international delivery.

Our equipment and technical support are built around US electrical standards (voltage, plug types, and certifications) - we're unable to guarantee compatibility or provide support for international electrical systems.

Professional install recommended. Wires to multiple machines or a dedicated circuit — most operators use a licensed electrician.

How it works

01. Install

Wire into your existing machine, outlet, or coin mechanism — most models splice in or run in parallel, so you keep the equipment that already works.

02. Customers pay

Credit card, debit card, mobile wallet, or the Clear Token phone app, depending on the model — no coins or cash box to manage.

03. Equipment runs

A vend pulse or timed cycle activates your machine automatically, the same way a coin drop would — no attendant required.

Product Details

Specifications
Amperage 40 Amps (adjustable 6-40A)
Power Output 9.6-11 kW
Voltage 208-240 Volts
Charger Output Plug J1772, 25 ft (5 meter) cable
Circuit Breaker 50A per charger
Electrical Connector NEMA 14-50P male 4-pin plug, 12 in 8-gauge power cord
Item Weight 77 lbs
Shipping Weight 61 lbs

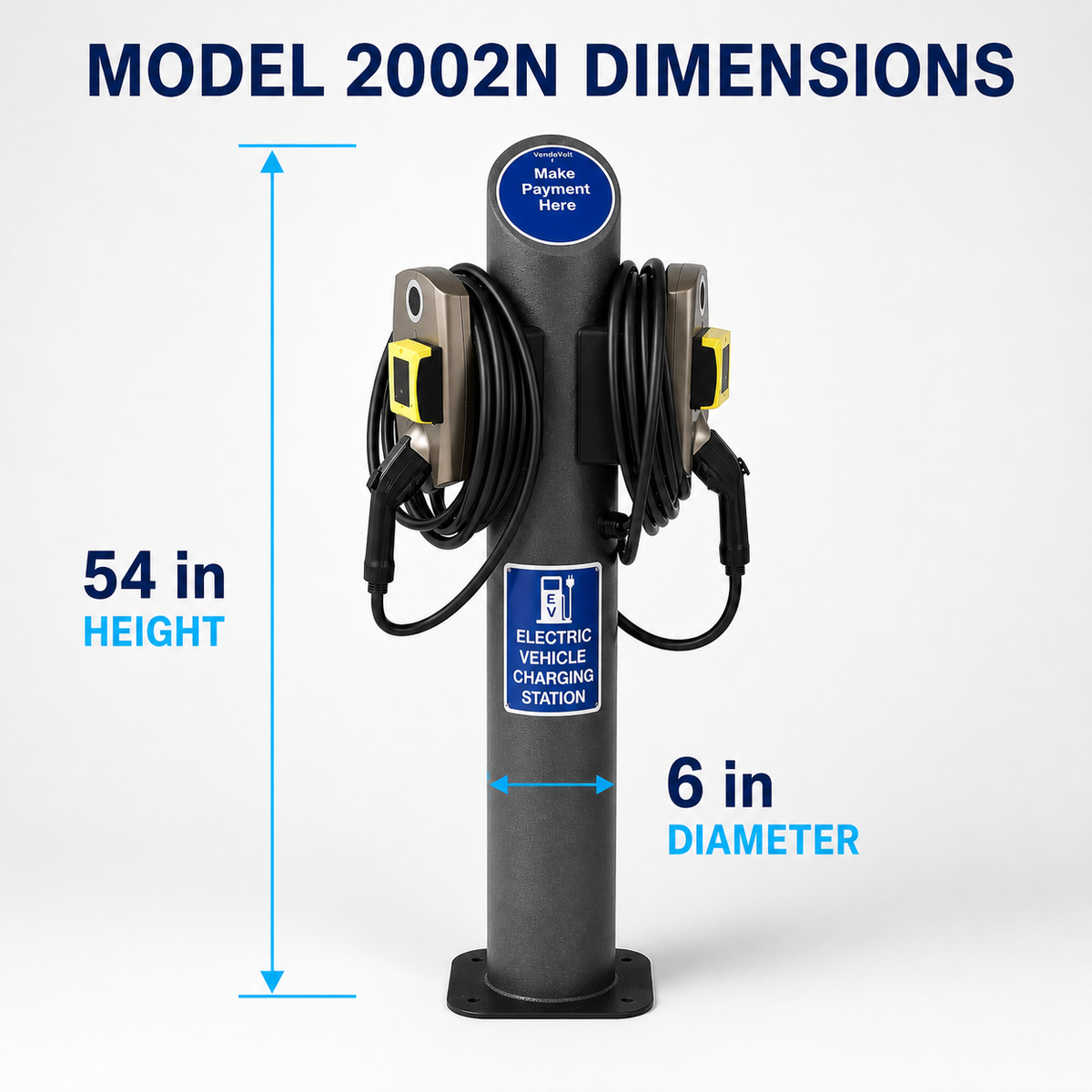

Package Dimensions 15.1 x 15 x 10.4 in, plus 54 in outer sleeve with 1/4 in thick steel bollard base
Certification ETL-listed
FCC ID R17ME910G1WW (Nayax Vpos Touch)
Manufacturer Part Number 900513-190

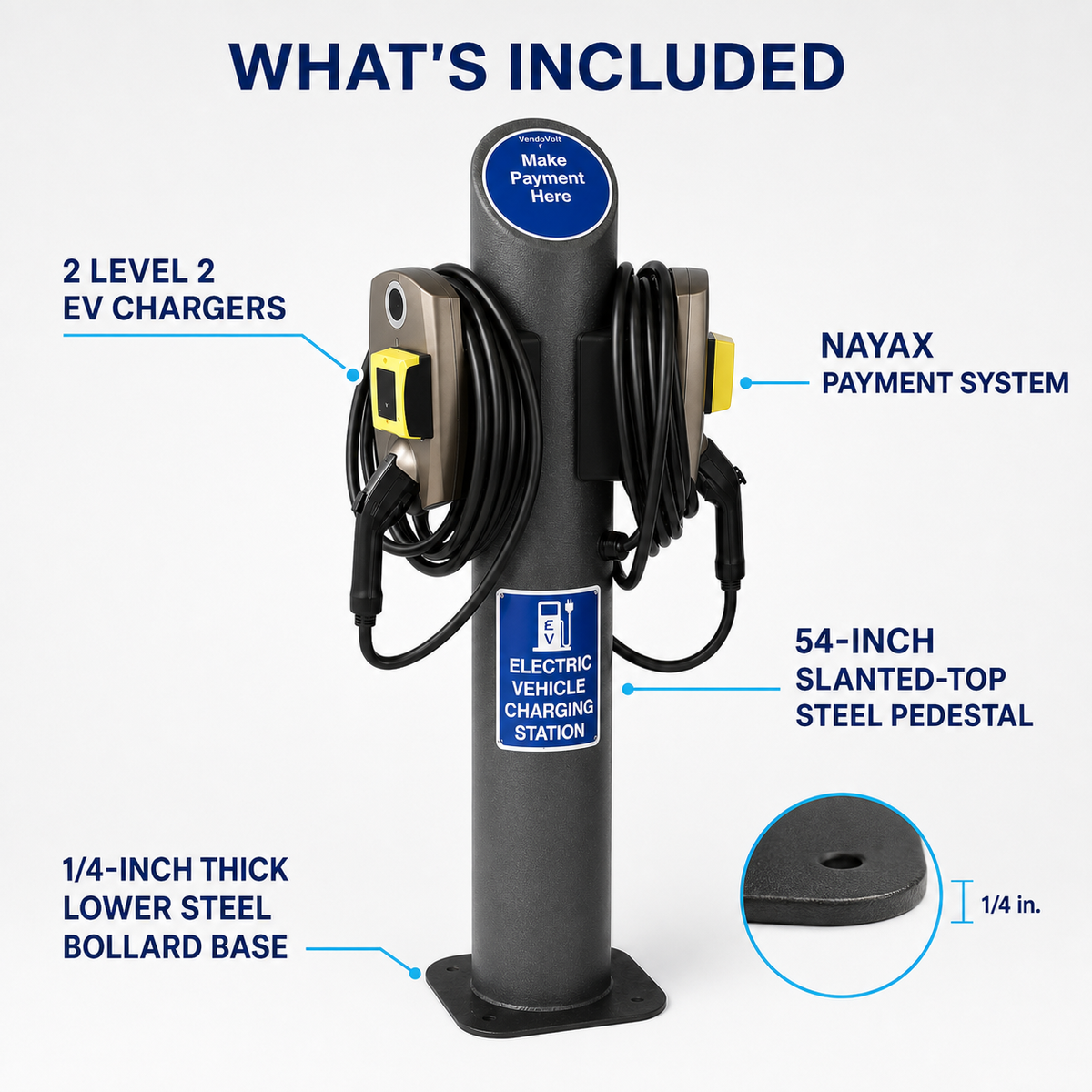

What's in the Box
  • One dual-station EV Level 2 charging unit mounted on a 54 in bollard pole with base
  • Built-in Nayax Vpos Touch cashless payment terminal
  • J1772 charging connector, 25 ft cable
  • NEMA 14-50P power plug, 12 in 8-gauge cord (hardwire also available)
  • Optional: lockable key switch for free staff/guest charging (+$50 per charger)
Compatibility
  • All plug-in electric and hybrid vehicles sold in North America (Tesla requires adapter)
  • SAE J1772 (Type 1), Level 2, 240V, NEMA 14-50 setups
  • Visa, Mastercard, Discover, American Express
  • Apple Pay and Google Wallet
  • Single or dual station configuration on 54 in bollard
