Nayax B1 Retrofit Harness Kit

SKU: 301002-002A
$95.00 USD
Shipping calculated at checkout.
In stock: 6
Description

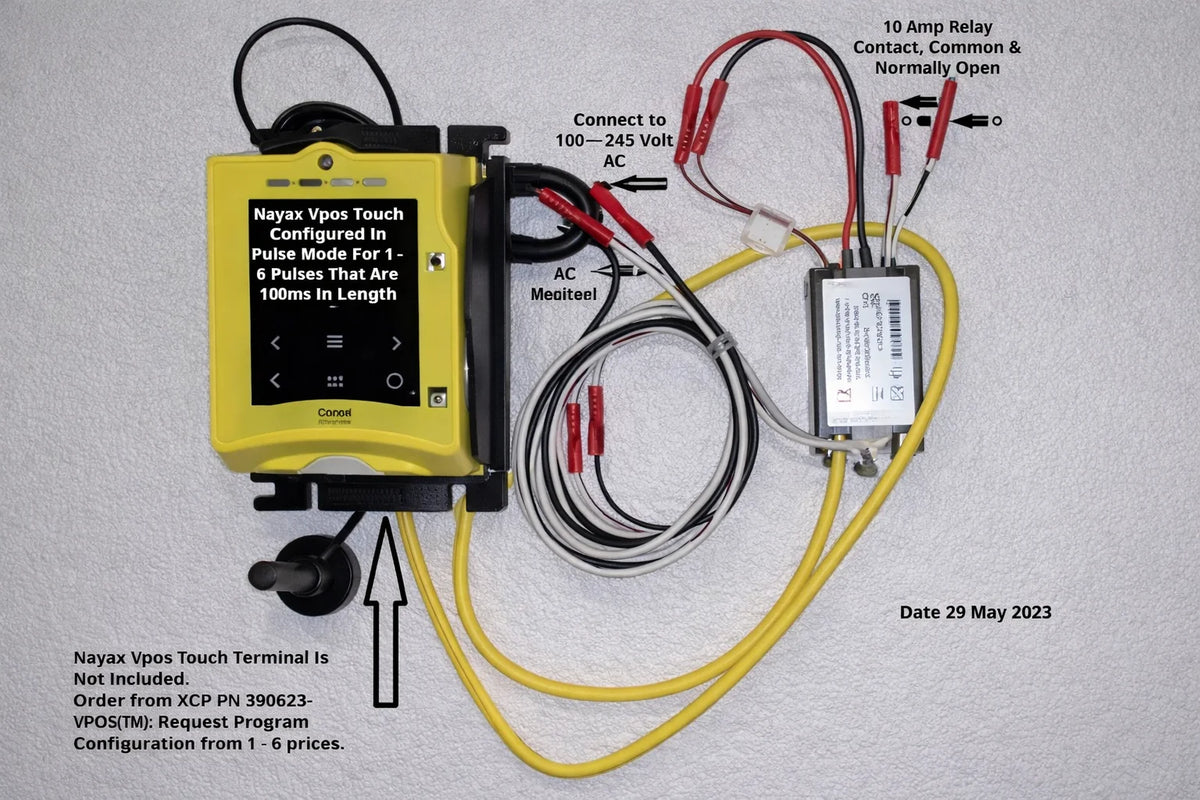

The B1 kit adds an optically isolated 10 Amp relay interface between a Nayax Vpos Touch terminal and an existing coin or bill acceptor. It's built for retrofitting vending machines that already accept coins or bills, wiring in parallel with the coin mechanism.

The kit ships pre-wired, with all six Nayax signal lines tied to a single output line, and is configured for normally open or normally closed coin mechanisms. Install it by cutting the coin line and splicing in the relay's output wires.

This kit does not include the Nayax Vpos Touch terminal or its programming the terminal is ordered separately.

Shipping outside the US? We ship to US-based freight-forwarder addresses, or contact us to arrange international delivery.

Our equipment and technical support are built around US electrical standards (voltage, plug types, and certifications) - we're unable to guarantee compatibility or provide support for international electrical systems.

How it works

01. Install

Wire into your existing machine, outlet, or coin mechanism — most models splice in or run in parallel, so you keep the equipment that already works.

02. Customers pay

Credit card, debit card, mobile wallet, or the Clear Token phone app, depending on the model — no coins or cash box to manage.

03. Equipment runs

A vend pulse or timed cycle activates your machine automatically, the same way a coin drop would — no attendant required.

Product Details

Specifications
Relay Type Optically isolated 10 Amp DPST
Power Supply 12V, 1 Amp (100-265VAC input)
Relay Wiring Common (white), Normally Open (black), Normally Closed (red)
Default Output Setting Normally open contacts
What's in the Box

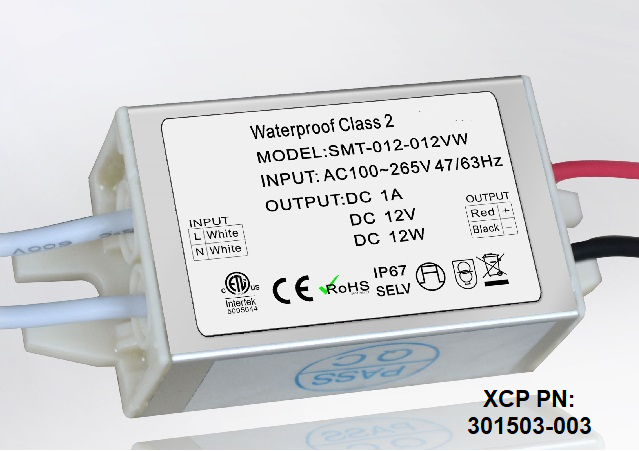

  • 12V 1 amp power supply (100-265VAC input)

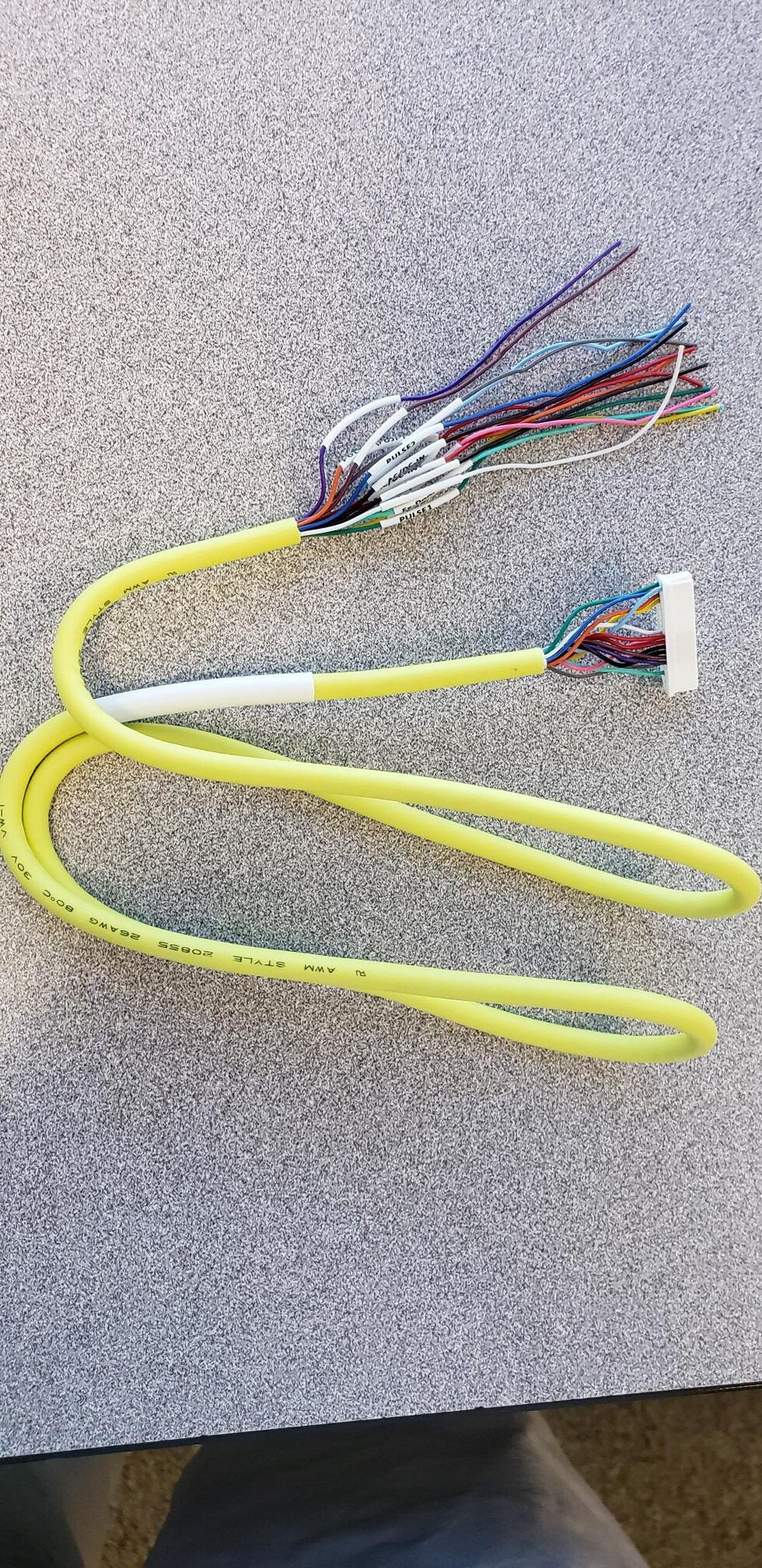

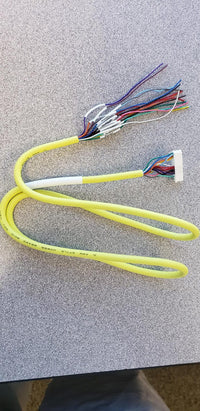

  • One Nayax yellow pulse cable

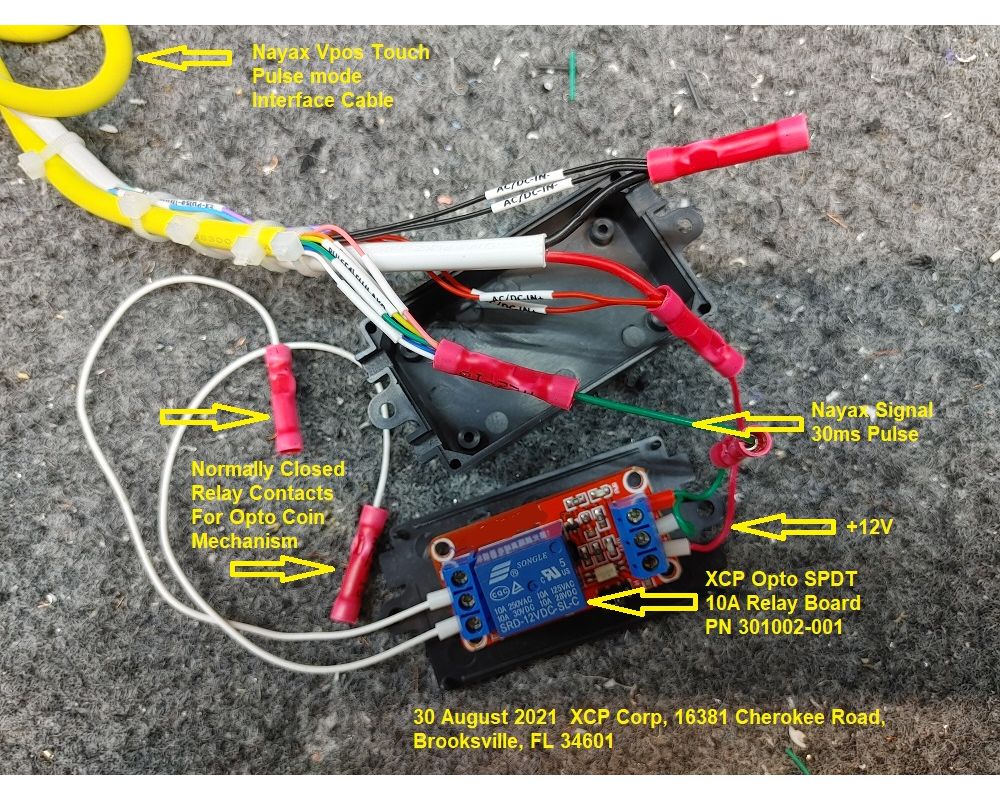

  • Optically isolated 10 Amp DPST relay controller board
  • Enclosure
Compatibility
  • Coin and bill acceptor operated vending machines
  • Nayax Vpos Touch terminal (sold separately)
