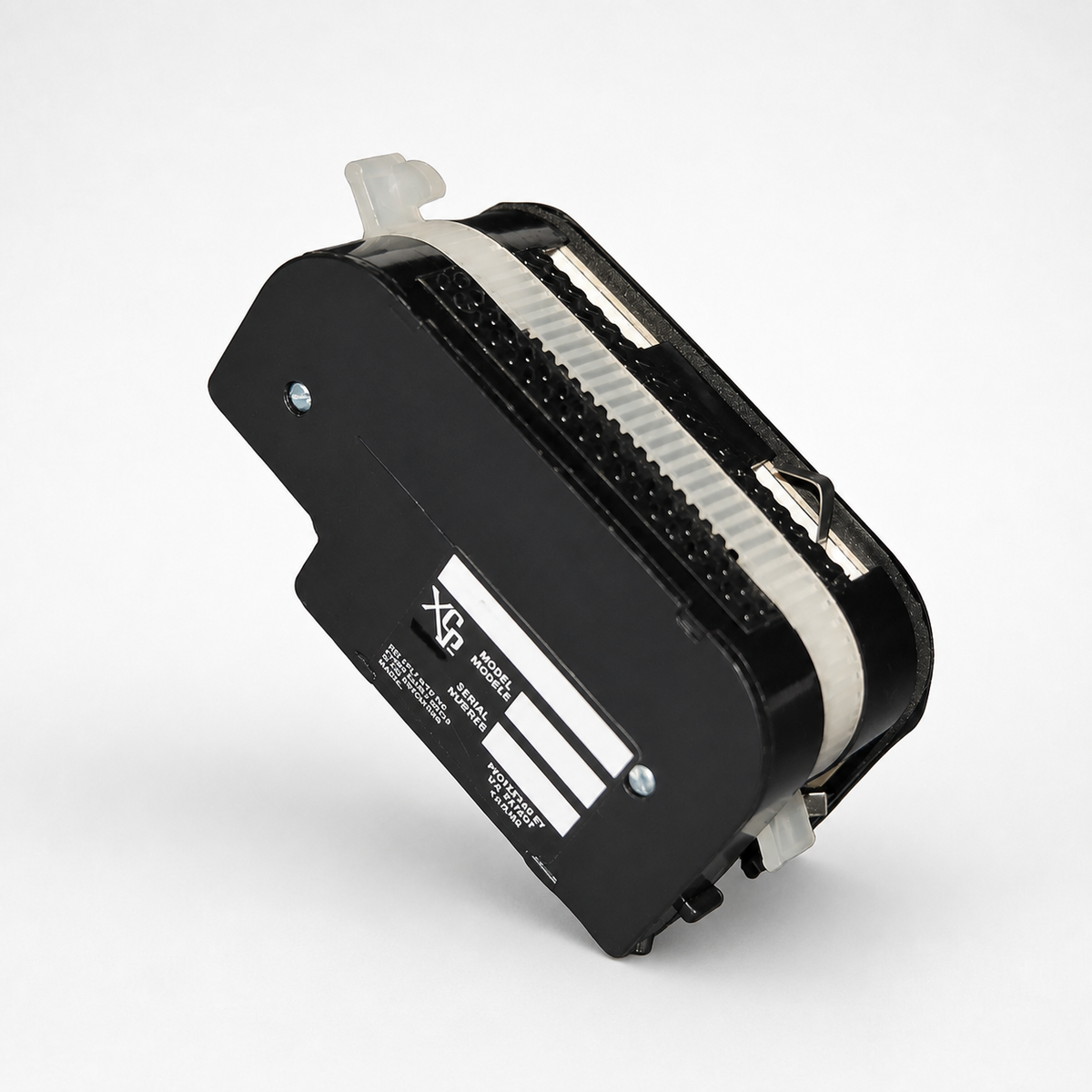

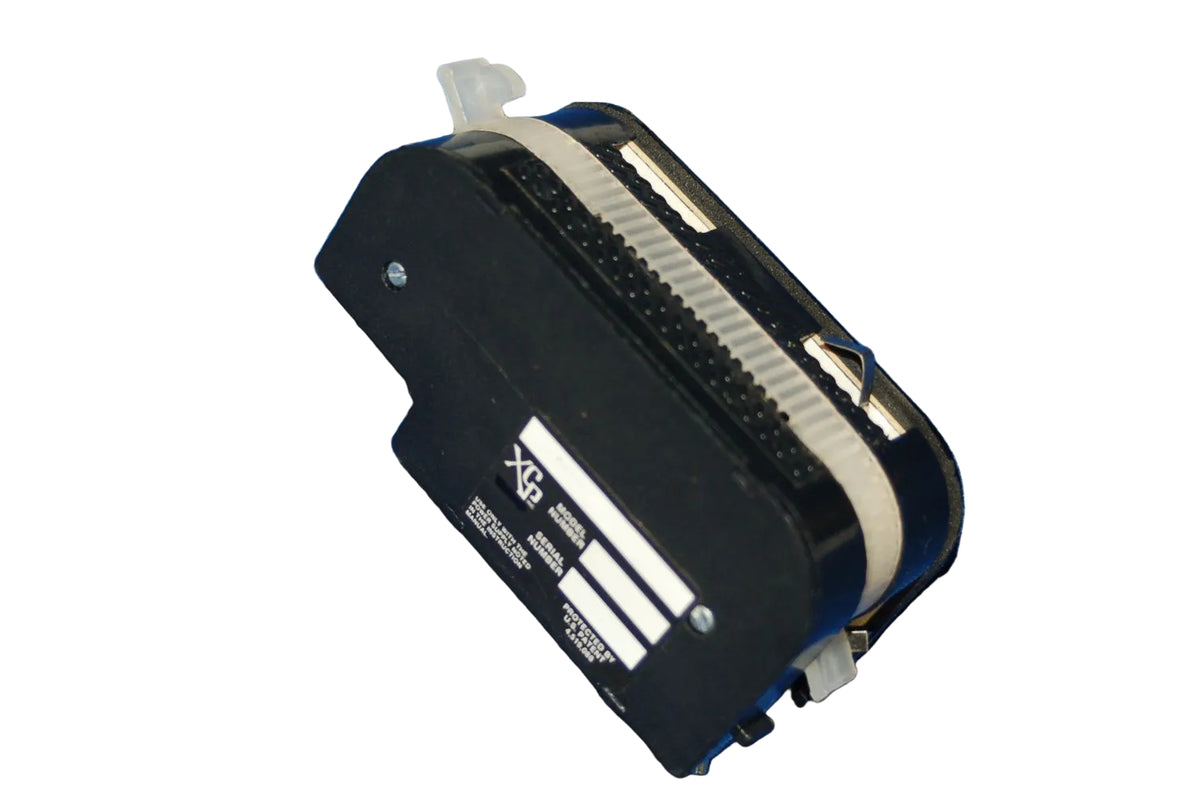

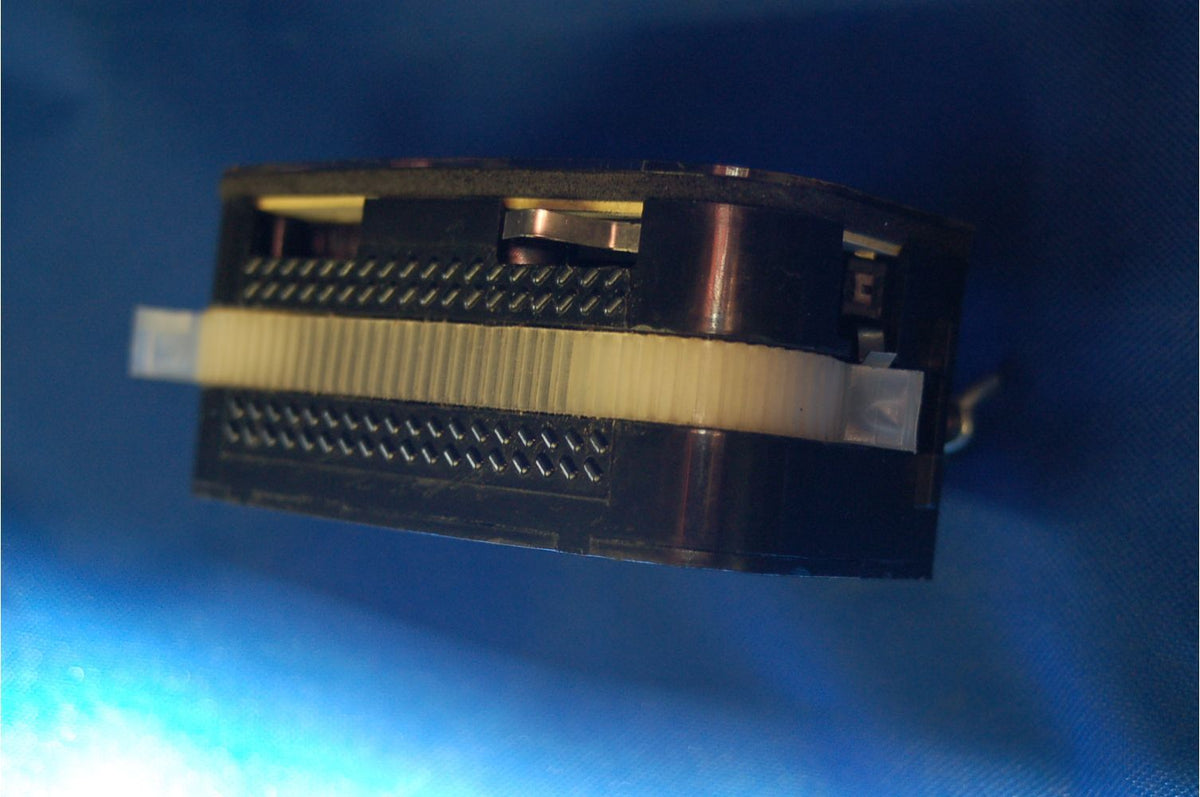

Box & Package 12V Dispenser Belt Driven Mechanism

SKU: 301604-003
Regular price $25.00 USD
Shipping calculated at checkout.
In stock: 22
Description

A 12V gear-motor-driven belt dispenser mechanism for boxes and packages, dispensing items a minimum of 5mm thick per cycle.

A switch closure of 1 or more seconds triggers a 180-degree belt dispense cycle. An empty-product switch signals the host control board when the magazine runs out.

Shipping outside the US? We ship to US-based freight-forwarder addresses, or contact us to arrange international delivery.

Our equipment and technical support are built around US electrical standards (voltage, plug types, and certifications) - we're unable to guarantee compatibility or provide support for international electrical systems.

How it works

01. Install

Wire into your existing machine, outlet, or coin mechanism — most models splice in or run in parallel, so you keep the equipment that already works.

02. Customers pay

Credit card, debit card, mobile wallet, or the Clear Token phone app, depending on the model — no coins or cash box to manage.

03. Equipment runs

A vend pulse or timed cycle activates your machine automatically, the same way a coin drop would — no attendant required.

Product Details

Specifications
Power 12VDC, minimum 1 Amp
Minimum Item Thickness 5mm
Dispense Cycle 180 degrees, triggered by 1+ second switch closure
Empty Detection Empty switch output to host control board
What's in the Box
  • 12V belt-driven dispenser mechanism
  • Empty-product detection switch
Compatibility
  • 12VDC host control boards with empty-switch detection input
  • Boxes and packages a minimum of 5mm thick
